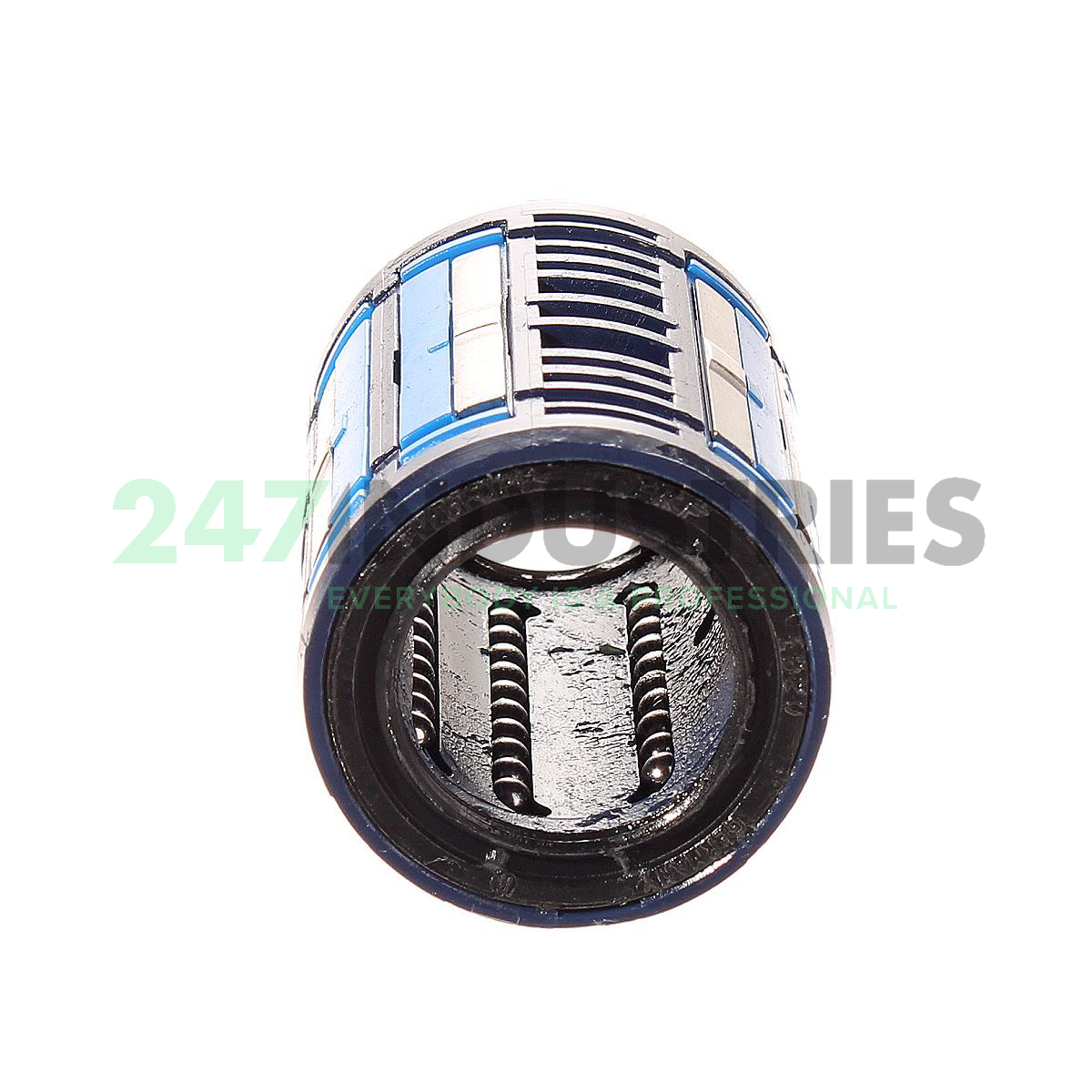

LBCD20A-2LS SKF

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 32
3. Width (B) MM 45
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.2598
6. Width (B) Inch 1.7717

Suffix description

1. A Deviating Or Modified Internal Design With Same Boundary Dimensions. As A Rule The Significance Of The Letter Is Bound To The Particular Bearing Or Bearing Series
2. 2LS Double Lip Seals

Technical details

1. Availability 0 pcs
2. Brand SKF
3. Item number LBCD20A-2LS SKF
4. Also known as KN2045PP
   KN20-B-PP
   LMES20UU
   R0670-220-40
   SPM20WW
   TK20UU

5. EAN 7316572116692
6. Category Linear Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.042

Product Properties

1. Seal 2L - LS-seal at Both Sides
