LASE50-XL-N-I INA

Name: LASE50-XL-N-I INA
Brand: INA

€ 101,89 ex VAT

€ 123,28 incl. VAT

€ 101,89 ex VAT

	Guaranteed same day shipment on orders placed before 17.00h (CEST)
	This product is available from stock
	Worldwide shipping from the Netherlands
	30 days return policy
	Track your order through Track & Trace

LASE50-XL-N-I INA

Housing unit

Stock	1 pc in stock and ready for shipment
Brand	INA
Article number	LASE50-XL-N-I INA
Inside diameter	50,00mm
Outside diameter	200,00mm
Width	62,80mm

Product description

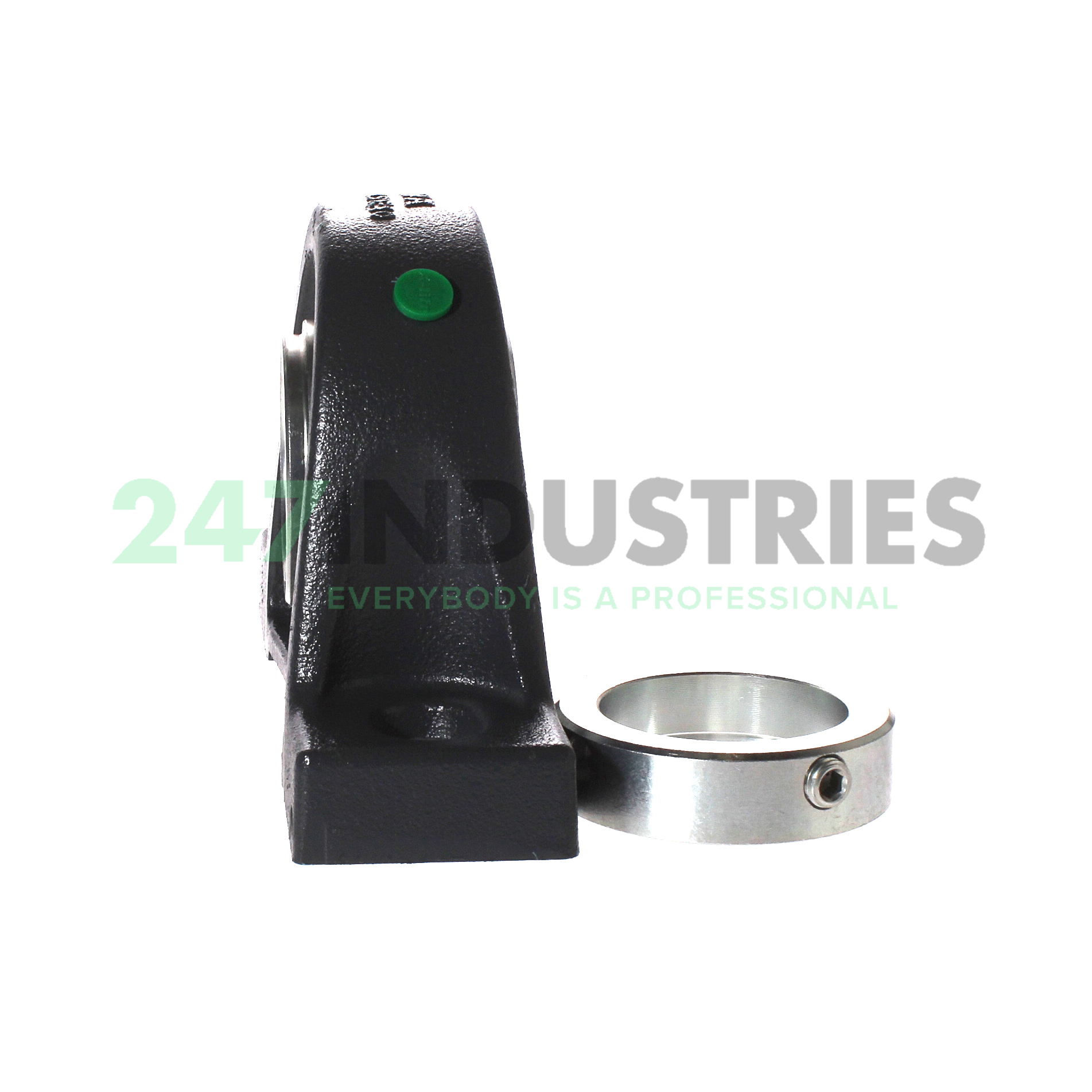

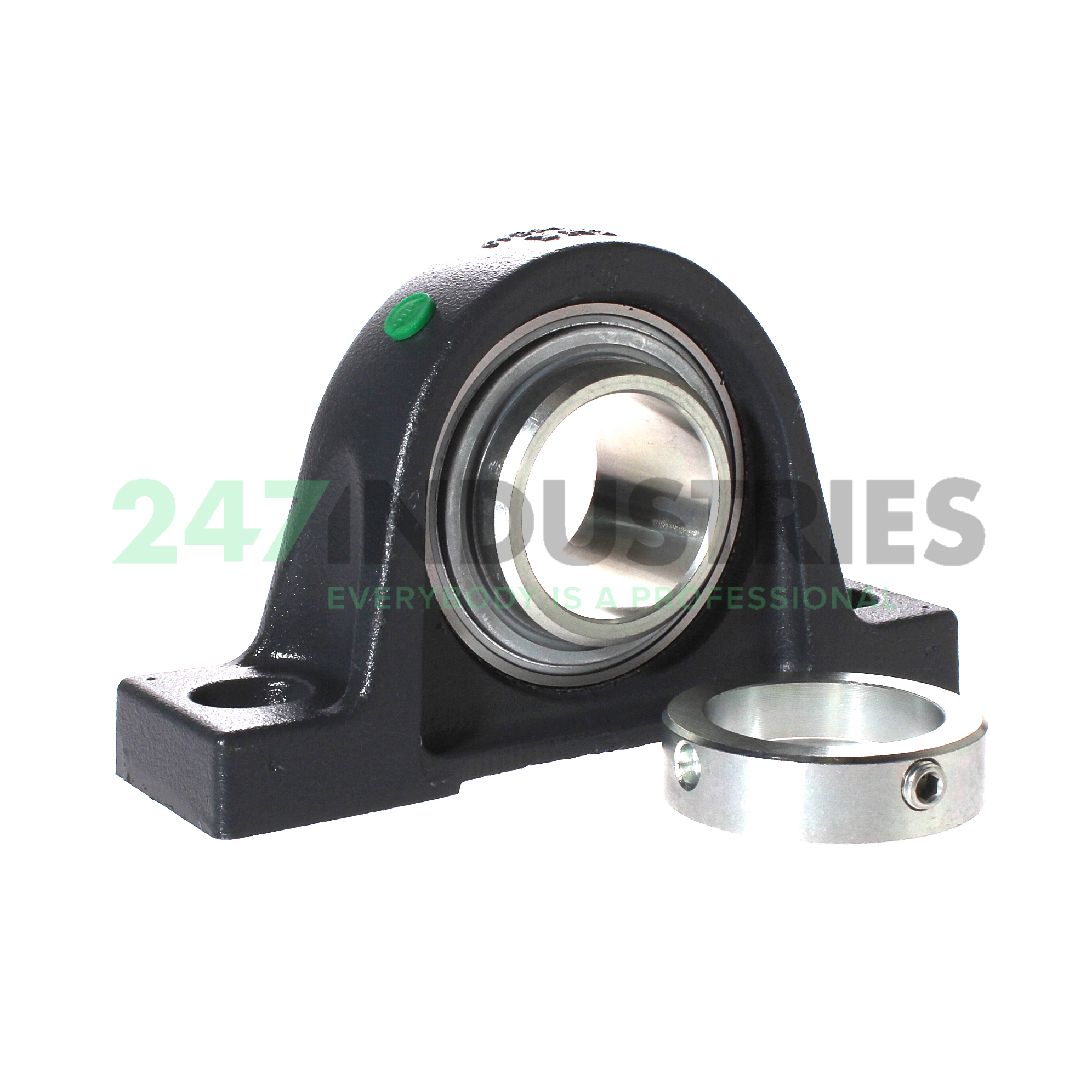

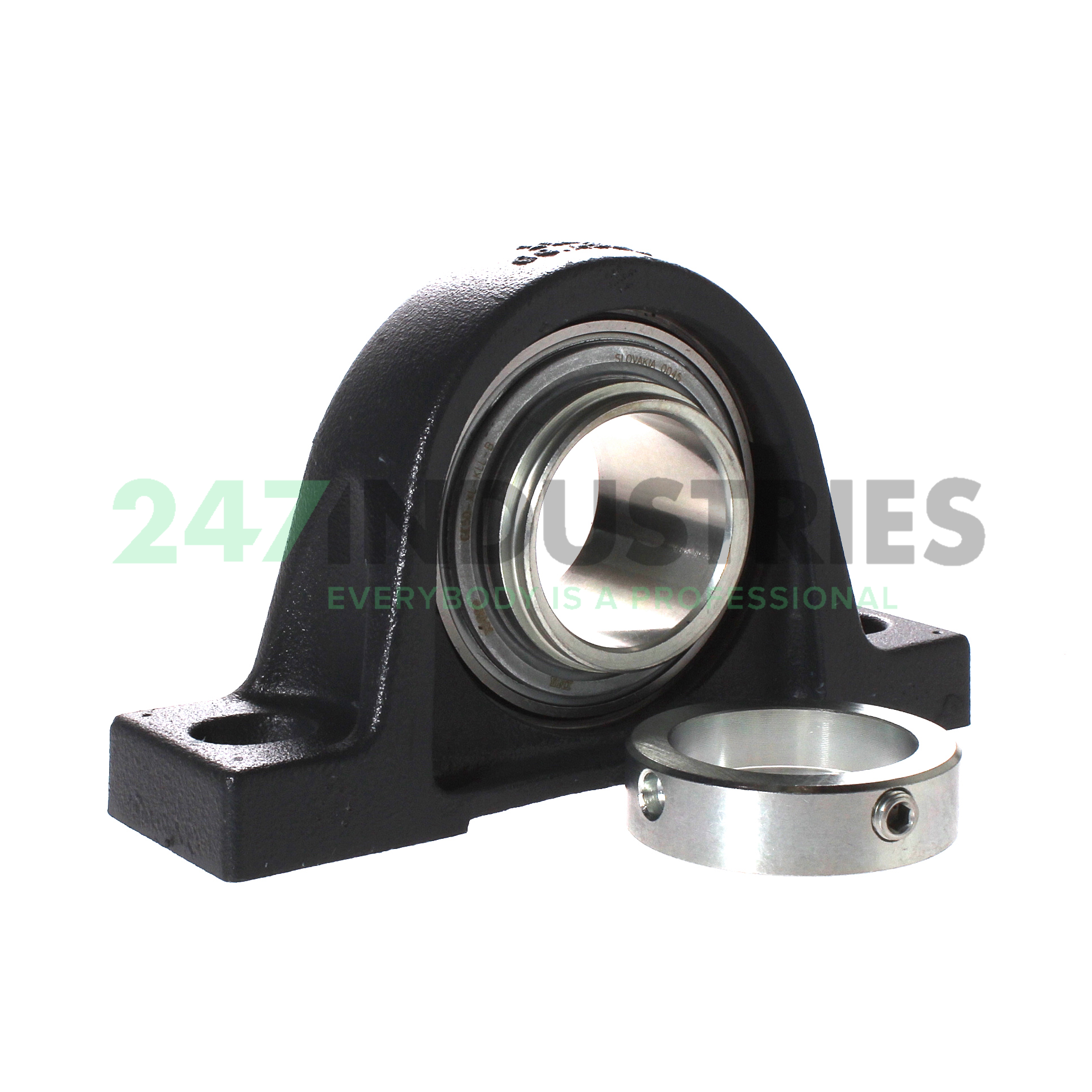

The LASE50-XL-N-I INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Email us at: help@247industries.com Response within 24h

Downloads and links

Similar to: LASE50-XL-N-I INA

Loading similair products

Product specifications

Inside diameter 50,00mm
Outside diameter 200,00mm
Width 62,80mm

All dimensions

Inner (d) MM 50,00
Outer (D) MM 200,00
Width (B) MM 62,80
Inner (d) Inch 1.9685
Outer (D) Inch 7.8740
Width (B) Inch 2.4724

Suffix description

XL X-Life
N Cast Iron Housing With Undercut Slot For End Caps
I Inch Size Grease Nipple R 1/8”

Technical details

Availability 1 pc
Brand INA
Item number LASE50-XL-N-I INA
Also known as LASE50-N
Category Housing and Bearing (assembly)

Weight and Dimensions

Weight (kg) 2.82

Product Properties

Seal 2F - Standard Seal for Y-bearings
Lubrication Standard Lubrication
Special Treatment No Special Treatment

Data from Schaeffler (medias)

ECLASS number 23-05-16-01
ECLASS2 number 23-05-16-01
Medias description Plummer block housing units LASE, cast iron housing, radial insert ball bearing with eccentric locking collar, L seals
