LASE20-XL-N INA

€ 31,61 ex VAT
€ 38,25 in VAT
€ 38,25 in VAT
€ 31,61 ex VAT

Guaranteed same day shipment on orders placed before 18.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

LASE20-XL-N INA

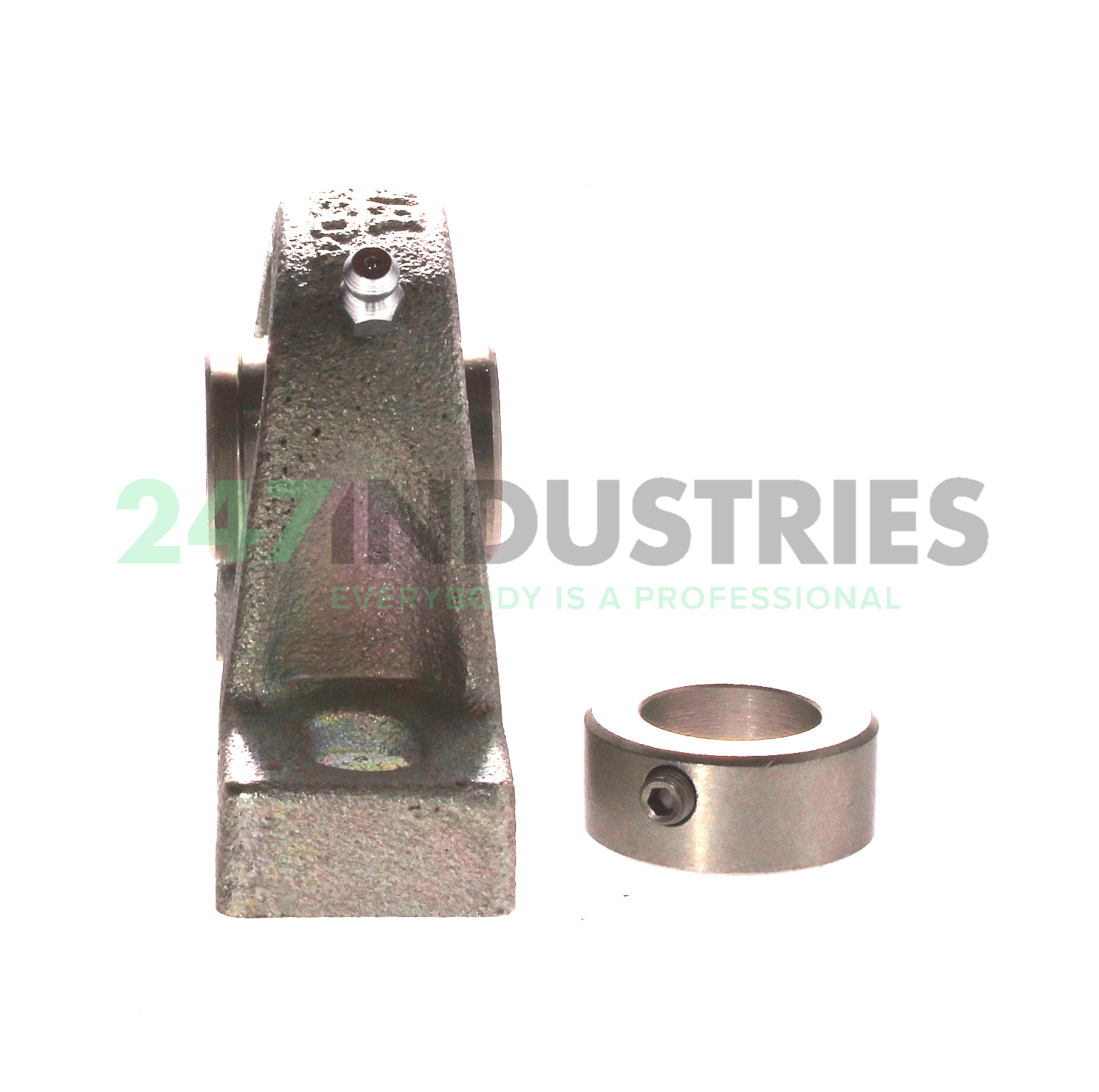

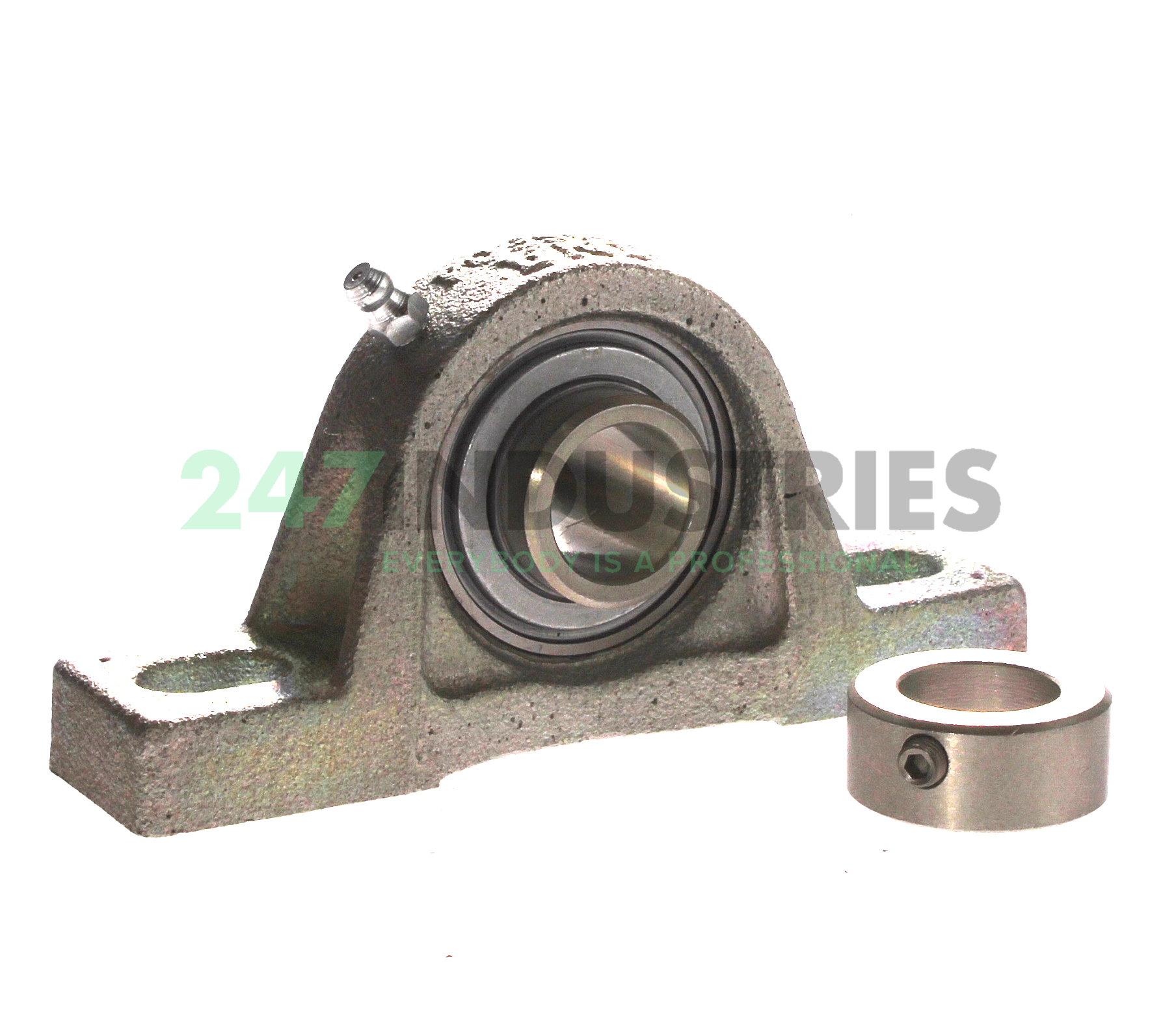

Housing and Bearing (assembly)

Stock
5 pcs in stock and ready for shipment
Brand INA
Article number LASE20-XL-N INA
Inside diameter 20mm
Outside diameter 130mm
Width 64mm
Product description

The LASE20-XL-N INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Help with this product

Downloads and links

Similar to: LASE20-XL-N INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 20
  2. Outer (D) MM 130
  3. Width (B) MM 64
  4. Inner (d) Inch 0.7874
  5. Outer (D) Inch 5.1181
  6. Width (B) Inch 2.5197
  7. Length total (L) mm 130
  8. Height (H 2) mm 64

Suffix description

  1. XL X-Life
  2. N Cast Iron Housing With Undercut Slot For End Caps

Technical details

  1. Availability 5 pcs
  2. Brand INA
  3. Item number LASE20-XL-N INA
  4. Also known as 0008575480000
    GE20-KLL-B + GG.ASE04-E-N
    LASE20-N
  5. EAN 4012802798432
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.59

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. ECLASS number 23-05-16-01
  2. ECLASS2 number 23-05-16-01
  3. Medias description Plummer block housing units LASE, cast iron housing, radial insert ball bearing with eccentric locking collar, L seals

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
