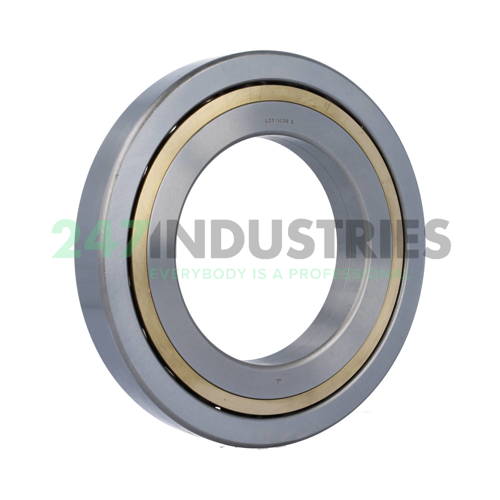

L23.1/2CDS2 Hoffmann

All dimensions

1. Inner (d) MM 139,7
2. Outer (D) MM 241,3
3. Width (B) MM 34,925
4. Inner (d) Inch 5.5
5. Outer (D) Inch 9.5
6. Width (B) Inch 1.375

Suffix description

1. CDS2 Angular contact, split inner ring, separable, retainer type

Technical details

1. Availability 2 pcs
2. Brand Hoffmann
3. Item number L23.1/2CDS2 Hoffmann
4. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 7.75

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. External Modification No External Modification
4. Radial Internal Play Cn Normal Internal Play
5. Precision Standard Precision
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Split inner ring
