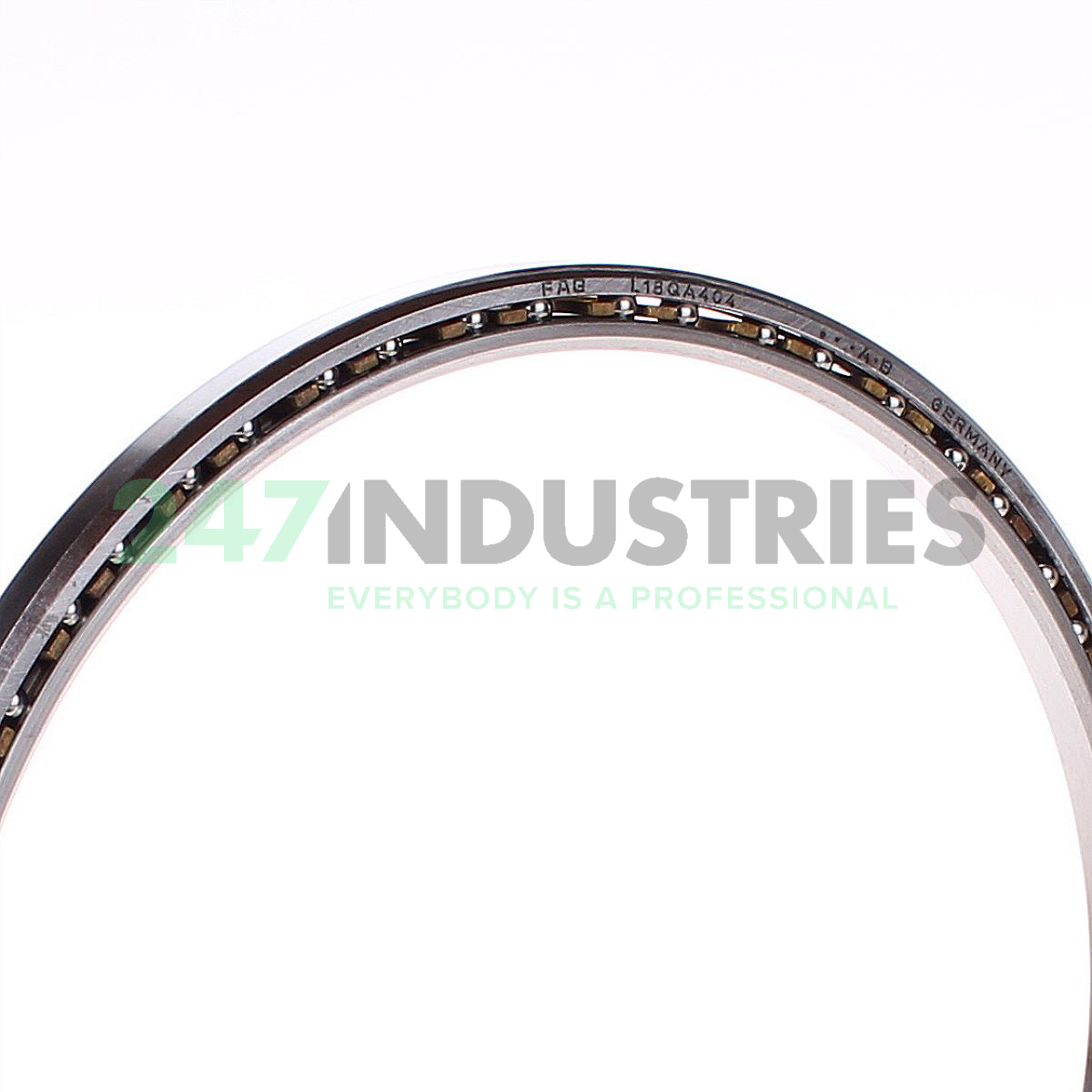

L18QA404YH FAG

All dimensions

1. Inner (d) MM 107,95
2. Outer (D) MM 120,65
3. Width (B) MM 6,35
4. Inner (d) Inch 4.25
5. Outer (D) Inch 4.75
6. Width (B) Inch 0.25

Suffix description

1. YH Thin Section Bearing, Brass Snap-Type Cage

Technical details

1. Availability 14 pcs
2. Brand FAG
3. Item number L18QA404YH FAG
4. Also known as CSXA042
   FPXA404
   KA042XPO
   NBX10706

5. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.088

Product Properties

1. Seal No Seal
2. Cage Type Y - Pressed Brass Cage
3. External Modification No External Modification
4. Radial Internal Play Cn Normal Internal Play
5. Precision ABEC.1 Tolerances
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Standard
