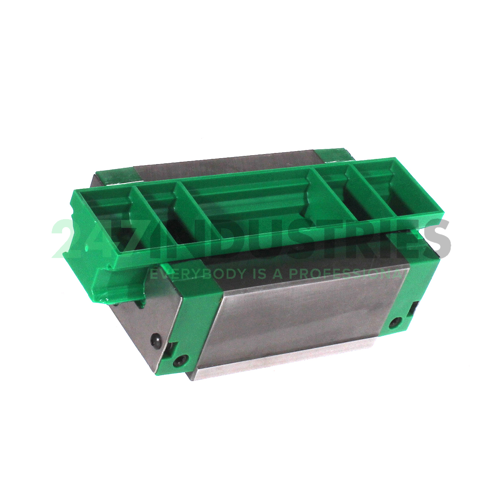

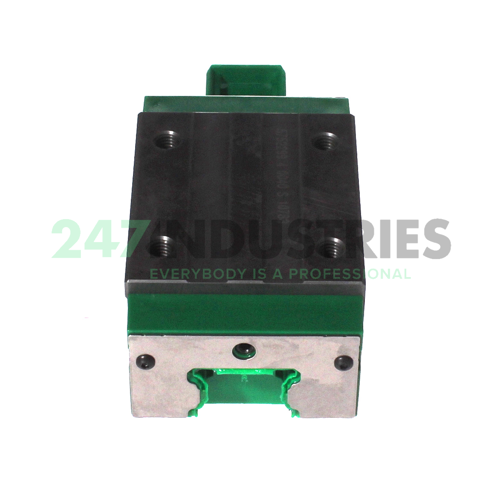

KWVE35-B-S-V1-G4 INA

All dimensions

1. Inner (d) MM 34,00
2. Outer (D) MM 70,00
3. Width (B) MM 112,00
4. Inner (d) Inch 1.3386
5. Outer (D) Inch 2.7559
6. Width (B) Inch 4.4094
7. Width carriage (B) mm 70,00
8. Overall length carriage (L) mm 112,00

Suffix description

1. B Standard Carriage, Four-Row, Full Complement Ball Set
2. S Narrow Carriage
3. V1 No Preload
4. G4 Precision Class 4

Technical details

1. Availability 11 pcs
2. Brand INA
3. Item number KWVE35-B-S-V1-G4 INA
4. Also known as 0183558380250
   KWVE35-B-S-G4-V1

5. EAN 4054366333469
6. Category Linear Plain Bearing Unit

Weight and Dimensions

1. Weight (kg) 1.3

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Dynamic load rating (C) "38000.0000"
2. Static load rating (C 0) "72000.0000"
3. Static moment rating about X axis (M 0x) "1465.0000"
4. Static moment rating about Y axis (M 0y) "1020.0000"
5. Static moment rating about Z axis (M 0z) "1020.0000"
6. ECLASS number 23-30-04-90
7. ECLASS2 number 23-30-04-90
8. Medias description Carriages KWVE..-B-S, narrow carriage, four-row
