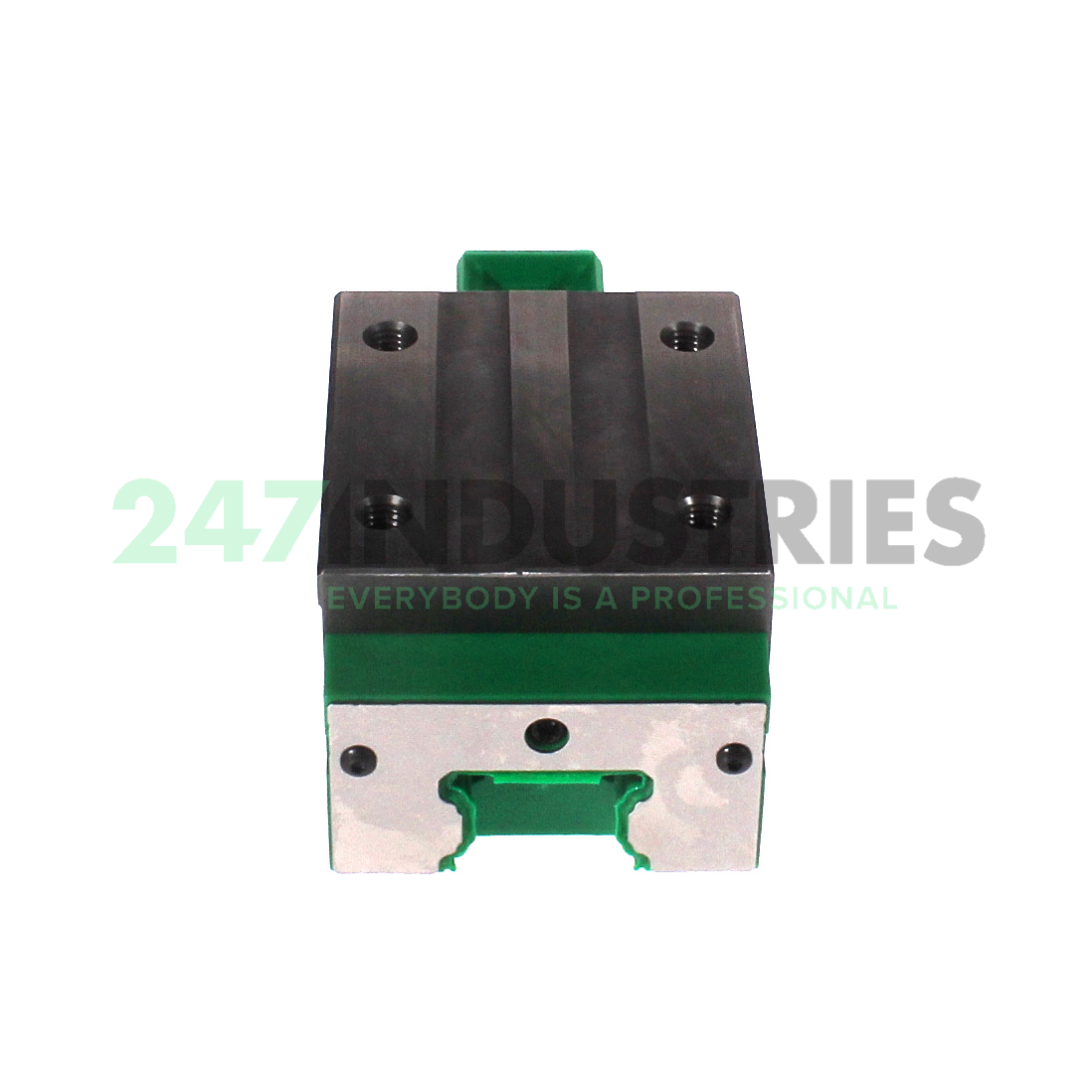

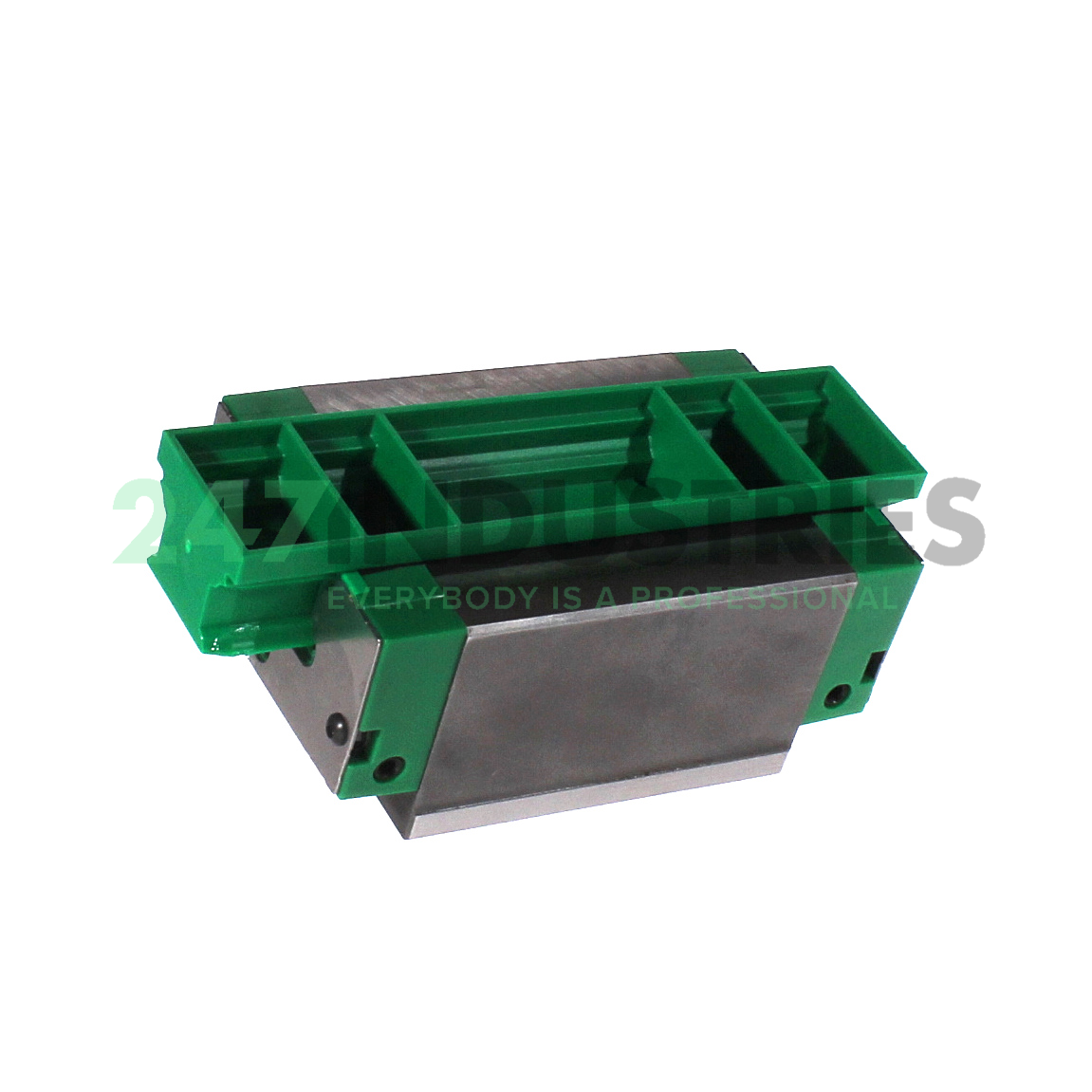

KWVE35-B-H-V0-G3 INA

All dimensions

1. Inner (d) MM 34,00
2. Outer (D) MM 70,00
3. Width (B) MM 112,00
4. Inner (d) Inch 1.3386
5. Outer (D) Inch 2.7559
6. Width (B) Inch 4.4094
7. Width carriage (B) mm 70,00
8. Overall length carriage (L) mm 112,00

Suffix description

1. B Standard Carriage, Four-Row, Full Complement Ball Set
2. H High, Narrow Carriage For Two-Row Ball Bearing And Guideway Assembly
3. V0 Little To No Preload
4. G3 Precision Class 3

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number KWVE35-B-H-V0-G3 INA
4. Also known as 0200371980140
   KWVE35-B-H-G3-V0

5. EAN 4054364006570
6. Category Linear Plain Bearing Unit

Weight and Dimensions

1. Weight (kg) 1.71

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Dynamic load rating (C) "38000.0000"
2. Static load rating (C 0) "72000.0000"
3. Static moment rating about X axis (M 0x) "1465.0000"
4. Static moment rating about Y axis (M 0y) "1020.0000"
5. Static moment rating about Z axis (M 0z) "1020.0000"
6. ECLASS number 23-30-04-90
7. ECLASS2 number 23-30-04-90
8. Medias description Carriages KWVE..-B-H, high, narrow carriage, four-row
