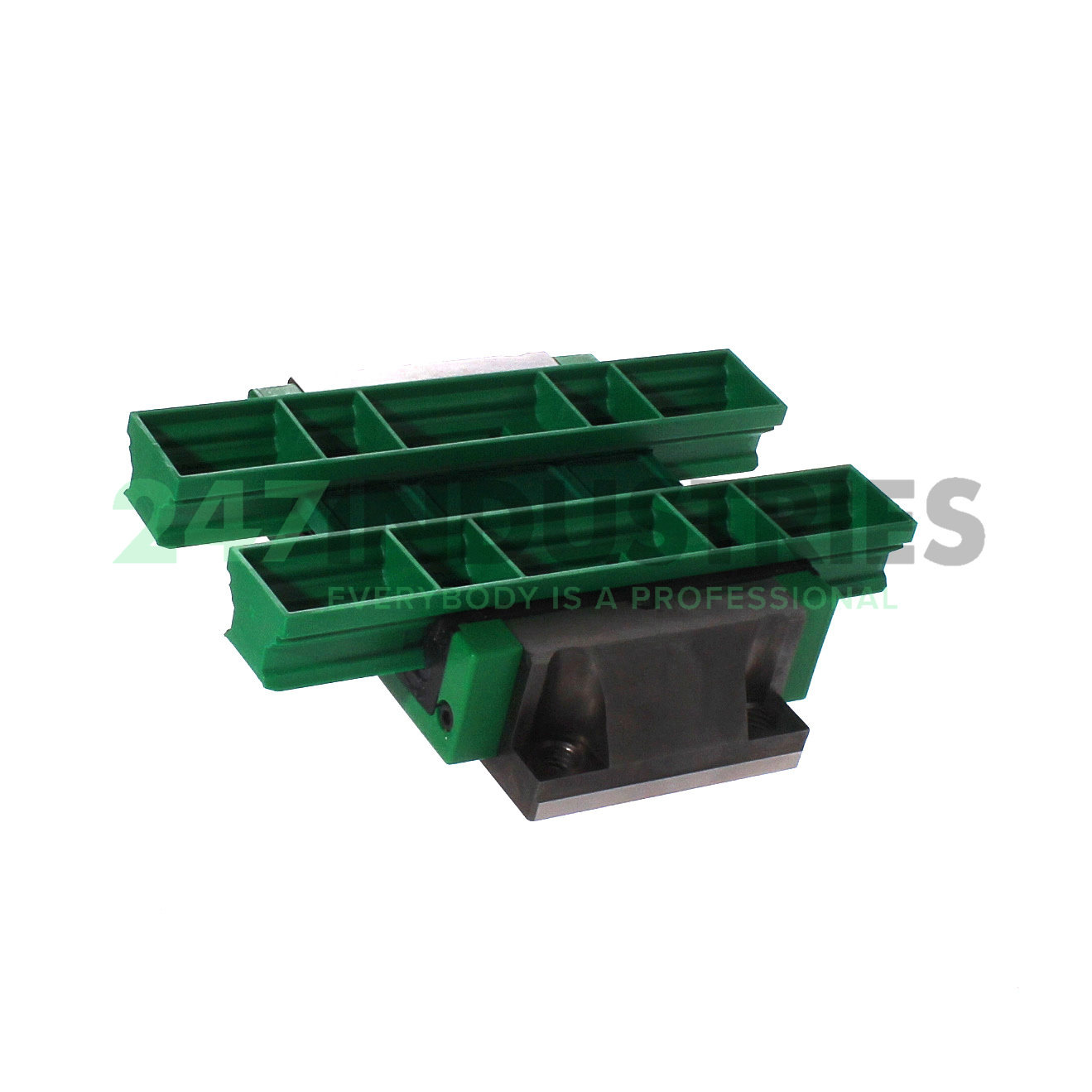

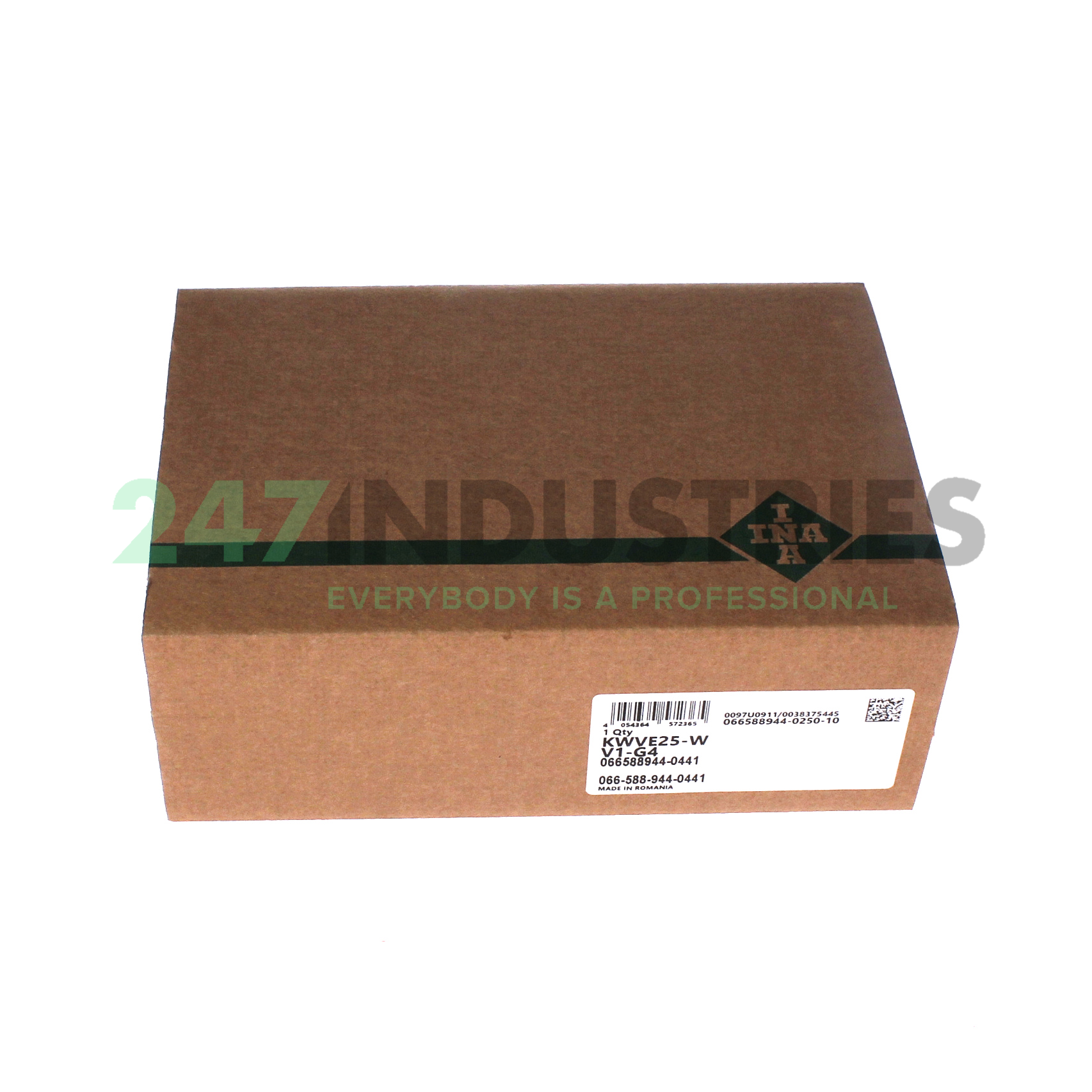

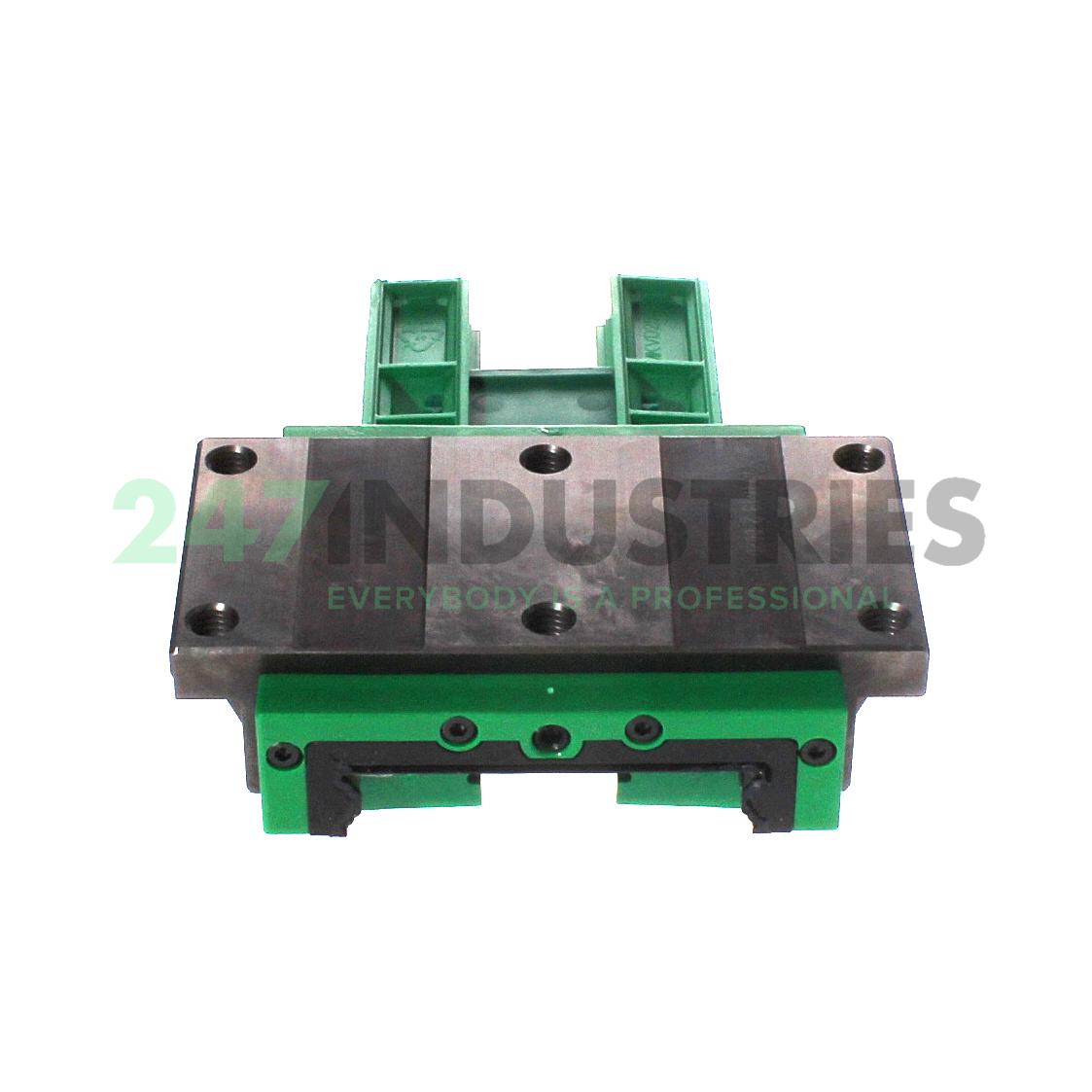

KWVE25-W-V1-G4 INA

All dimensions

1. Inner (d) MM 69,00
2. Outer (D) MM 120,00
3. Width (B) MM 81,70
4. Inner (d) Inch 2.7165
5. Outer (D) Inch 4.7244
6. Width (B) Inch 3.2165
7. Width carriage (B) mm 120,00
8. Overall length carriage (L) mm 81,70

Suffix description

1. W Wide Carriage
2. V1 No Preload
3. G4 Precision Class 4

Technical details

1. Availability 4 pcs
2. Brand INA
3. Item number KWVE25-W-V1-G4 INA
4. Also known as 0665889440250
   KWVE25-W-G4-V1

5. EAN 4054364572365
6. Category Linear Plain Bearing Unit

Weight and Dimensions

1. Weight (kg) 1.1

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Dynamic load rating (C) "17900.0000"
2. Static load rating (C 0) "37000.0000"
3. Static moment rating about X axis (M 0x) "1470.0000"
4. Static moment rating about Y axis (M 0y) "395.0000"
5. Static moment rating about Z axis (M 0z) "395.0000"
6. ECLASS number 23-30-04-90
7. ECLASS2 number 23-30-04-90
8. Medias description Carriages KWVE..-W, wide carriage for linear recirculating ball bearing and guideway assembly
