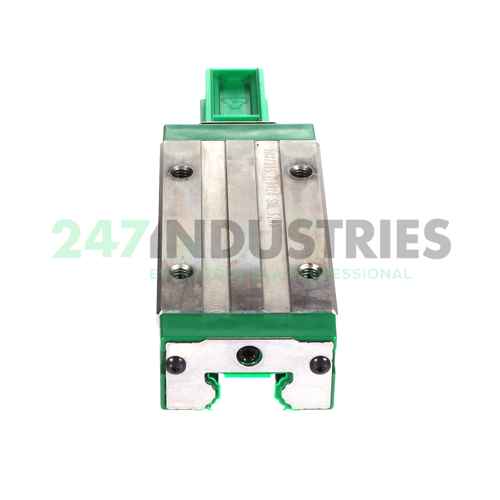

KWVE25-B-SNL-RROC-V1-G3 INA

All dimensions

1. Inner (d) MM 23,00
2. Outer (D) MM 48,00
3. Width (B) MM 109,10
4. Inner (d) Inch 0.9055
5. Outer (D) Inch 1.8898
6. Width (B) Inch 4.2953
7. Width carriage (B) mm 48,00
8. Overall length carriage (L) mm 109,10

Suffix description

1. B Standard Carriage, Four-Row, Full Complement Ball Set
2. SNL Narrow, Low, Long Carriage
3. RROC Protected Against Corrosion By Corrotect® Special Coating - Cr(VI)-Free
4. V1 No Preload
5. G3 Precision Class 3

Technical details

1. Availability 7 pcs
2. Brand INA
3. Item number KWVE25-B-SNL-RROC-V1-G3 INA
4. Also known as 0772075560240

5. EAN 4054362989424
6. Category Linear Plain Bearing Unit

Weight and Dimensions

1. Weight (kg) 0.62

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Dynamic load rating (C) "23400.0000"
2. Static load rating (C 0) "54000.0000"
3. Static moment rating about X axis (M 0x) "745.0000"
4. Static moment rating about Y axis (M 0y) "825.0000"
5. Static moment rating about Z axis (M 0z) "825.0000"
