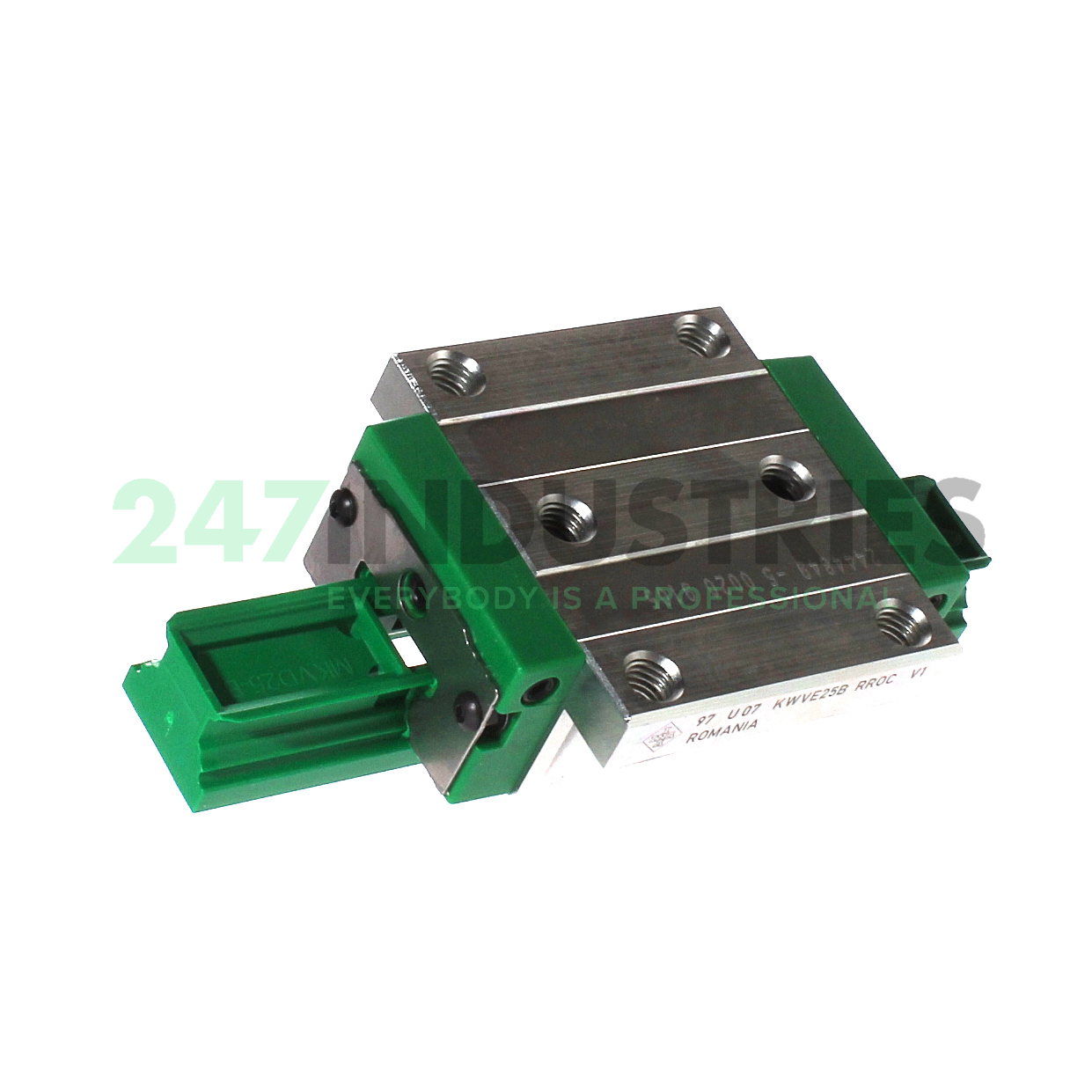

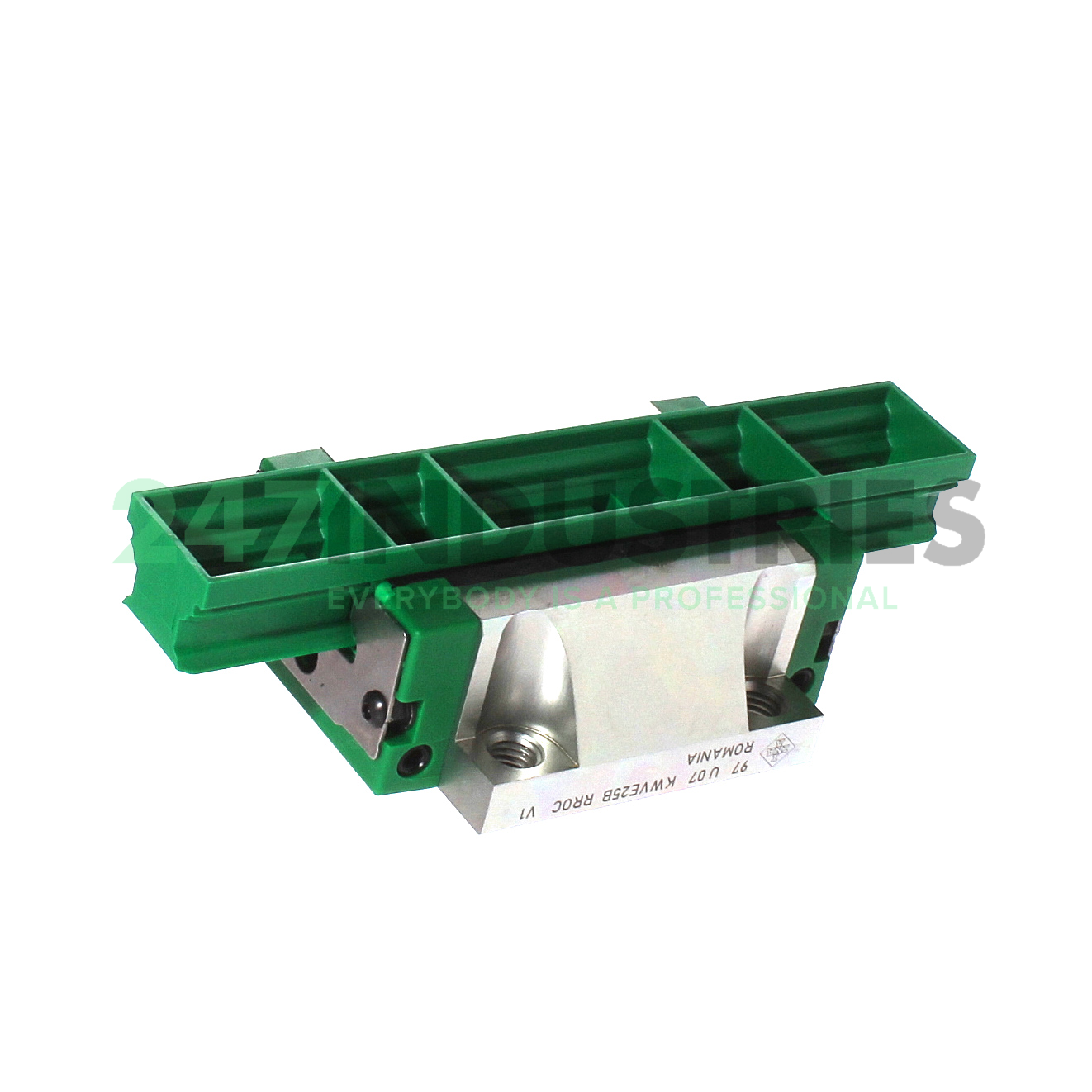

KWVE25-B-RROC-V1-G3 INA

All dimensions

1. Inner (d) MM 23,00
2. Outer (D) MM 70,00
3. Width (B) MM 30,90
4. Inner (d) Inch 0.9055
5. Outer (D) Inch 2.7559
6. Width (B) Inch 1.2165
7. Width carriage (B) mm 70,00
8. Overall length carriage (L) mm 83,30

Suffix description

1. B Standard Carriage, Four-Row, Full Complement Ball Set
2. RROC Protected Against Corrosion By Corrotect® Special Coating - Cr(VI)-Free
3. V1 No Preload
4. G3 Precision Class 3

Technical details

1. Availability 11 pcs
2. Brand INA
3. Item number KWVE25-B-RROC-V1-G3 INA
4. Also known as 0293308150240
   KWVE25-B-RROC-G3-V1

5. EAN 4054362987130
6. Category Linear Plain Bearing Unit

Weight and Dimensions

1. Weight (kg) 0.68

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Dynamic load rating (C) "17900.0000"
2. Static load rating (C 0) "37000.0000"
3. Static moment rating about X axis (M 0x) "510.0000"
4. Static moment rating about Y axis (M 0y) "395.0000"
5. Static moment rating about Z axis (M 0z) "395.0000"
6. ECLASS number 23-30-04-90
7. ECLASS2 number 23-30-04-90
8. Medias description Carriages KWVE..-B, standard carriage, four-row, full complement ball set
