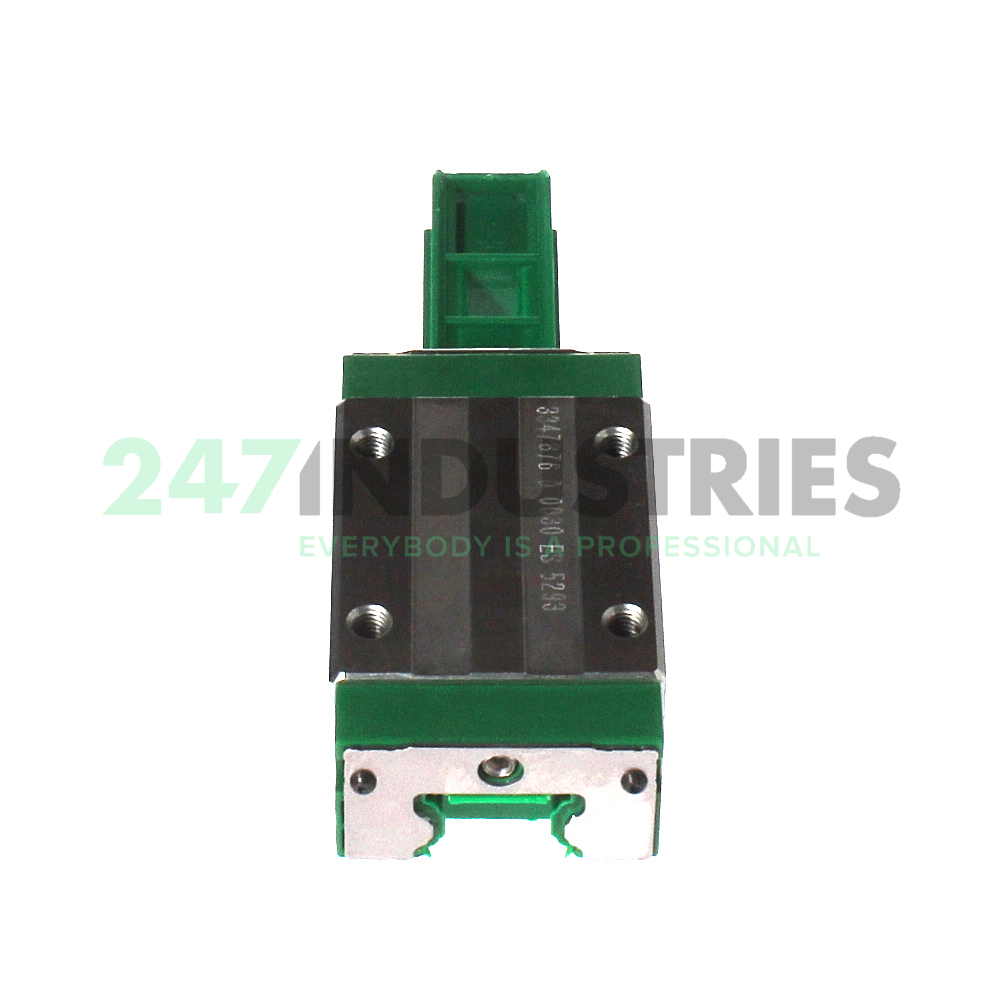

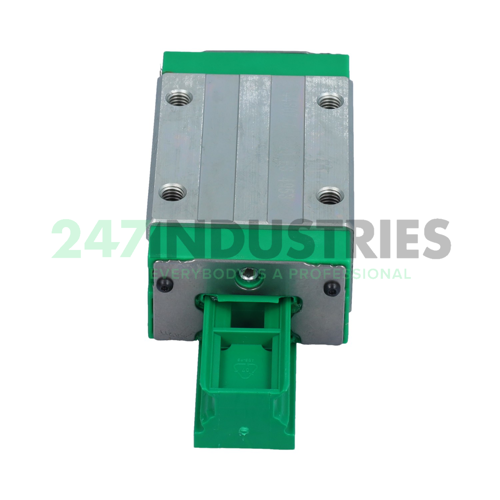

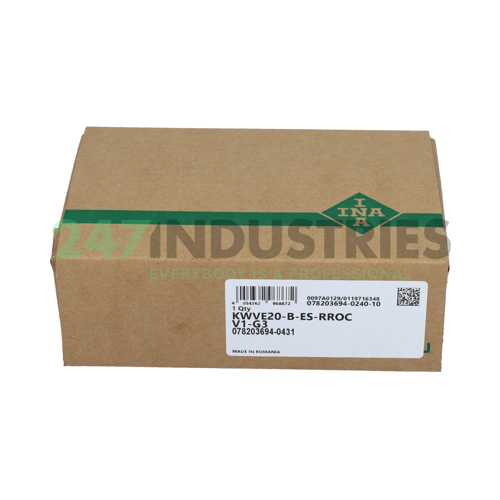

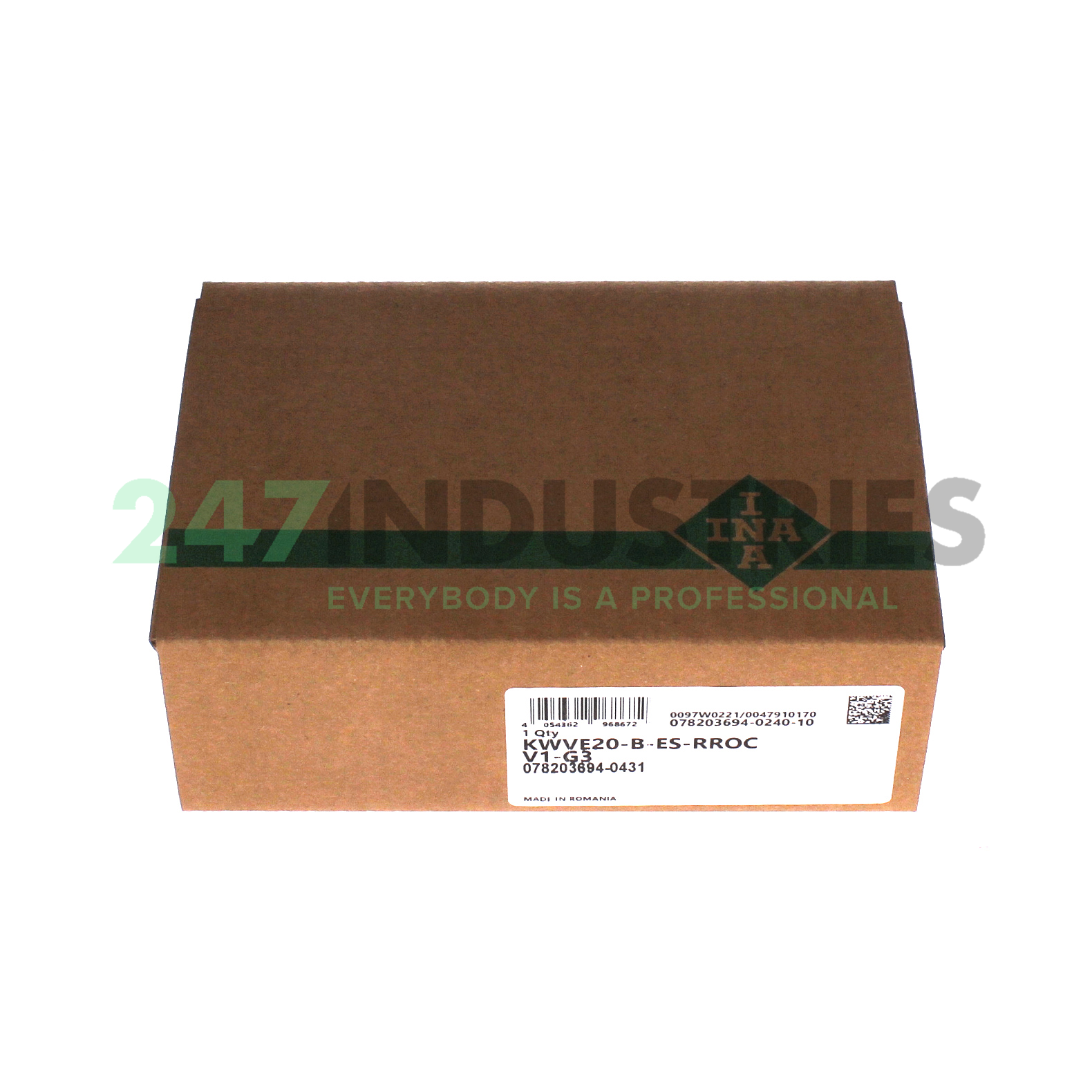

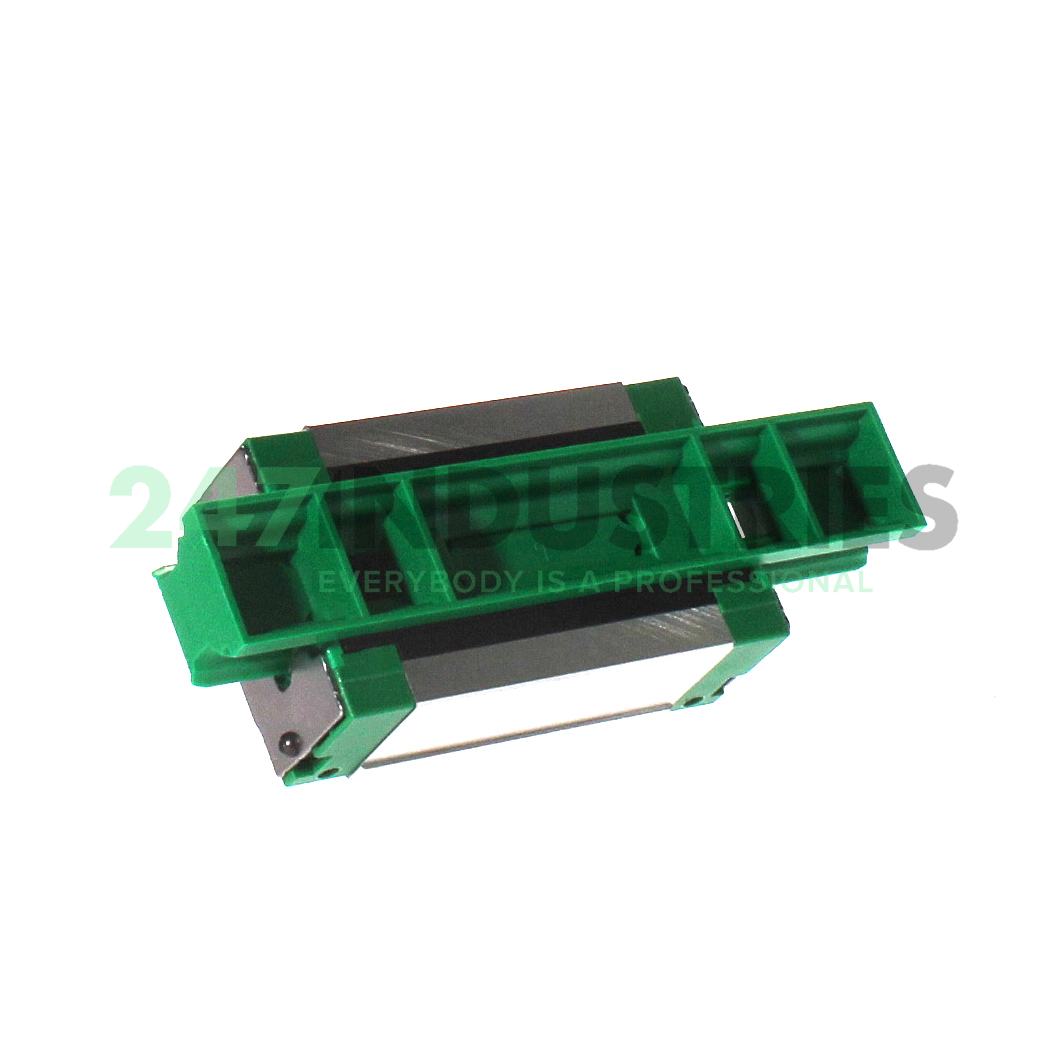

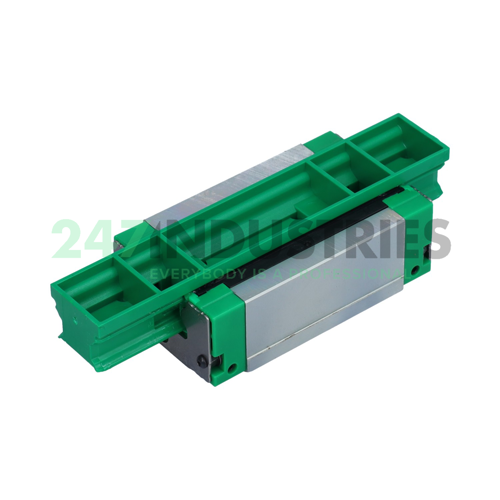

KWVE20-B-ES-RROC-V1-G3 INA

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 42
3. Width (B) MM 71,4
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.6535
6. Width (B) Inch 2.811
7. Width carriage (B) mm 42
8. Overall length carriage (L) mm 71,4

Suffix description

1. B Version
2. ES Expanded Design, Narrow Carriage
3. RROC Protected Against Corrosion By Corrotect® Special Coating - Cr(VI)-Free
4. V1 Slight Preload
5. G3 Precision Class 3

Technical details

1. Availability 3 pcs
2. Brand INA
3. Item number KWVE20-B-ES-RROC-V1-G3 INA
4. Also known as 0782036940240

5. EAN 4054362968672
6. Category Linear Plain Bearing Unit

Weight and Dimensions

1. Weight (kg) 0.315

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Dynamic load rating (C) 13100
2. Static load rating (C 0) 27000
3. Static moment rating about X axis (M 0x) 332
4. Static moment rating about Y axis (M 0y) 240
5. Static moment rating about Z axis (M 0z) 240
