KWSE30-HL-V0-G2 INA

All dimensions

1. Inner (d) MM 28,00
2. Outer (D) MM 60,00
3. Width (B) MM 119,10
4. Inner (d) Inch 1.1024
5. Outer (D) Inch 2.3622
6. Width (B) Inch 4.6890
7. Width carriage (B) mm 60,00
8. Overall length carriage (L) mm 119,30

Suffix description

1. HL High, Narrow, Long Carriage
2. V0 Little To No Preload
3. G2 Precision Class 2

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number KWSE30-HL-V0-G2 INA
4. Also known as 0028662340130
   KWSE30-HL-G2-V0

5. EAN 4054362950660
6. Category Linear Plain Bearing Unit

Weight and Dimensions

1. Weight (kg) 1.2

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Dynamic load rating, load direction I: compressive load (I C) "51000.0000"
2. Static load rating, load direction I: compressive load (I C 0) "113000.0000"
3. Dynamic load rating, load direction II: tensile load (II C) "48000.0000"
4. Static load rating, load direction II: tensile load (II C 0) "85000.0000"
5. Dynamic load rating; basic dynamic load rating, Load direction III: lateral load (III C) "50000.0000"
6. Static load rating, Load direction III: lateral load (III C 0) "88000.0000"
7. ECLASS number 23-30-04-90
8. ECLASS2 number 23-30-04-90

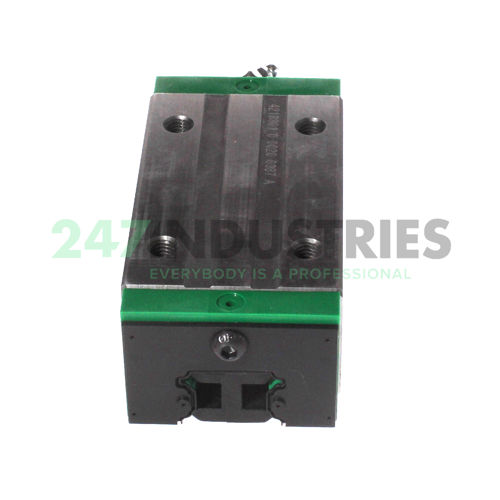

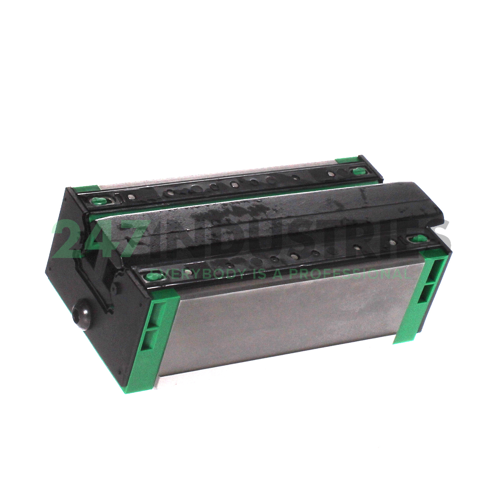

9. Medias description High, narrow, long carriage for six-row linear recirculating ball bearing and guideway assembly

Downloads and links

1. Link to manufacturer Link to manufacturer
