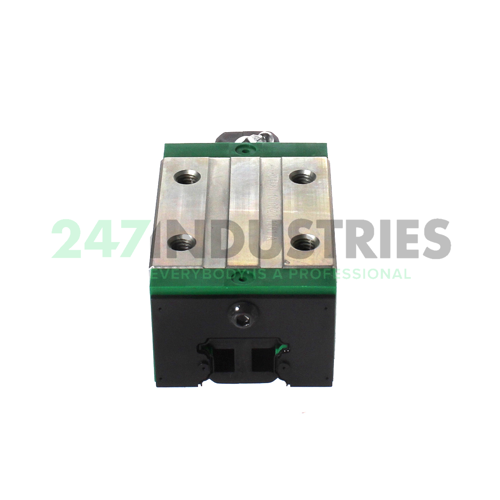

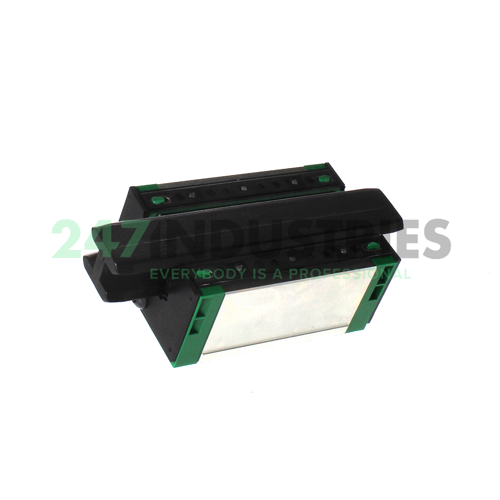

KWSE30-H-RROC-V1-G3 INA

All dimensions

1. Inner (d) MM 28,00
2. Outer (D) MM 60,00
3. Width (B) MM 91,40
4. Inner (d) Inch 1.1024
5. Outer (D) Inch 2.3622
6. Width (B) Inch 3.5984
7. Width carriage (B) mm 60,00
8. Overall length carriage (L) mm 91,60

Suffix description

1. H High, Narrow Carriage For Two-Row Ball Bearing And Guideway Assembly
2. RROC Protected Against Corrosion By Corrotect® Special Coating - Cr(VI)-Free
3. V1 No Preload
4. G3 Precision Class 3

Technical details

1. Availability 4 pcs
2. Brand INA
3. Item number KWSE30-H-RROC-V1-G3 INA
4. Also known as 0785708400240
   KWSE30-H-RROC-G3-V1

5. EAN 4054362951308
6. Category Linear Plain Bearing Unit

Weight and Dimensions

1. Weight (kg) 0.9

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Dynamic load rating, load direction I: compressive load (I C) "40000.0000"
2. Static load rating, load direction I: compressive load (I C 0) "80000.0000"
3. Dynamic load rating, load direction II: tensile load (II C) "37800.0000"
4. Static load rating, load direction II: tensile load (II C 0) "60000.0000"
5. Dynamic load rating; basic dynamic load rating, Load direction III: lateral load (III C) "40000.0000"
6. Static load rating, Load direction III: lateral load (III C 0) "62000.0000"
7. ECLASS number 23-30-04-90
8. ECLASS2 number 23-30-04-90
9. Medias description High, narrow carriage for six-row linear recirculating ball bearing and guideway assembly
