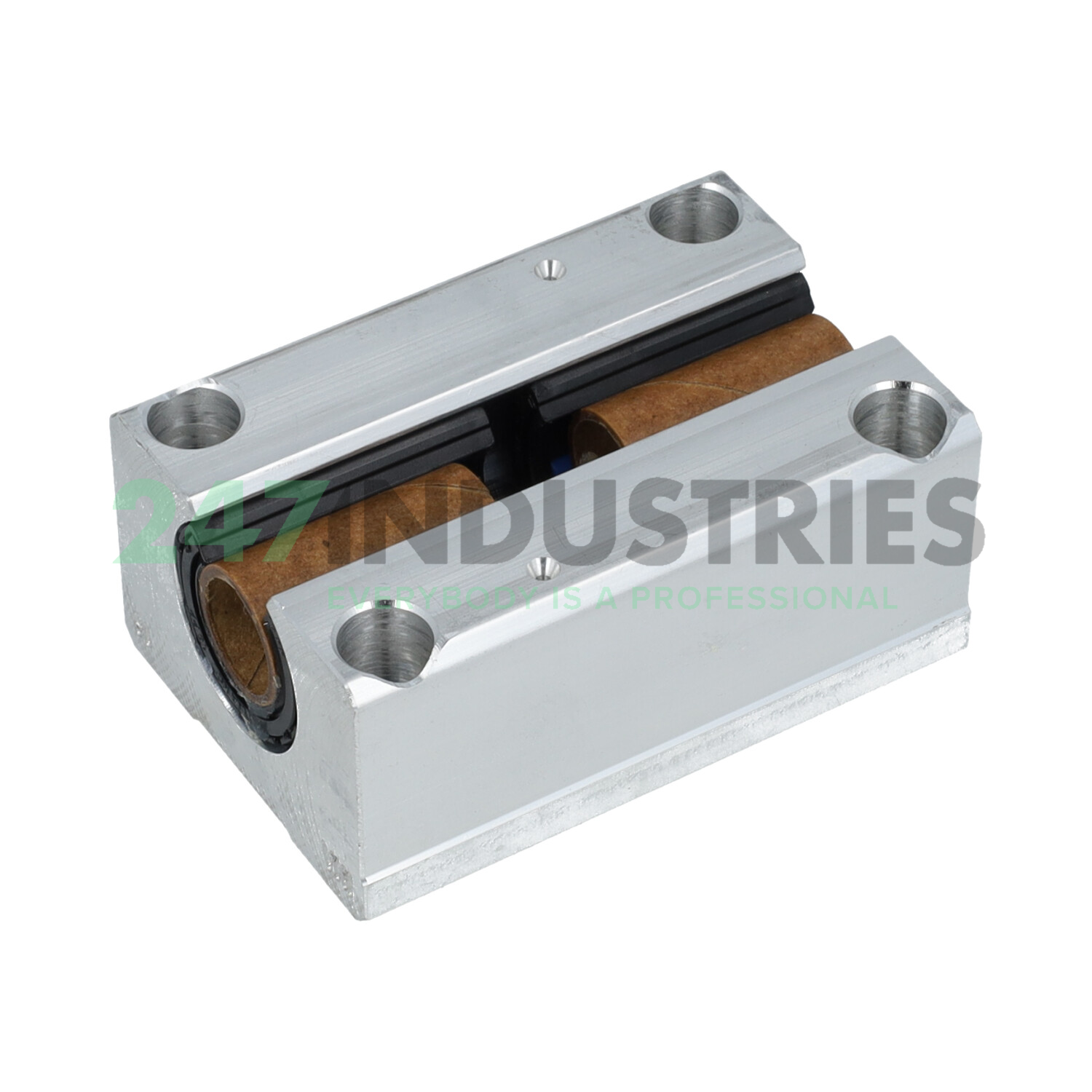

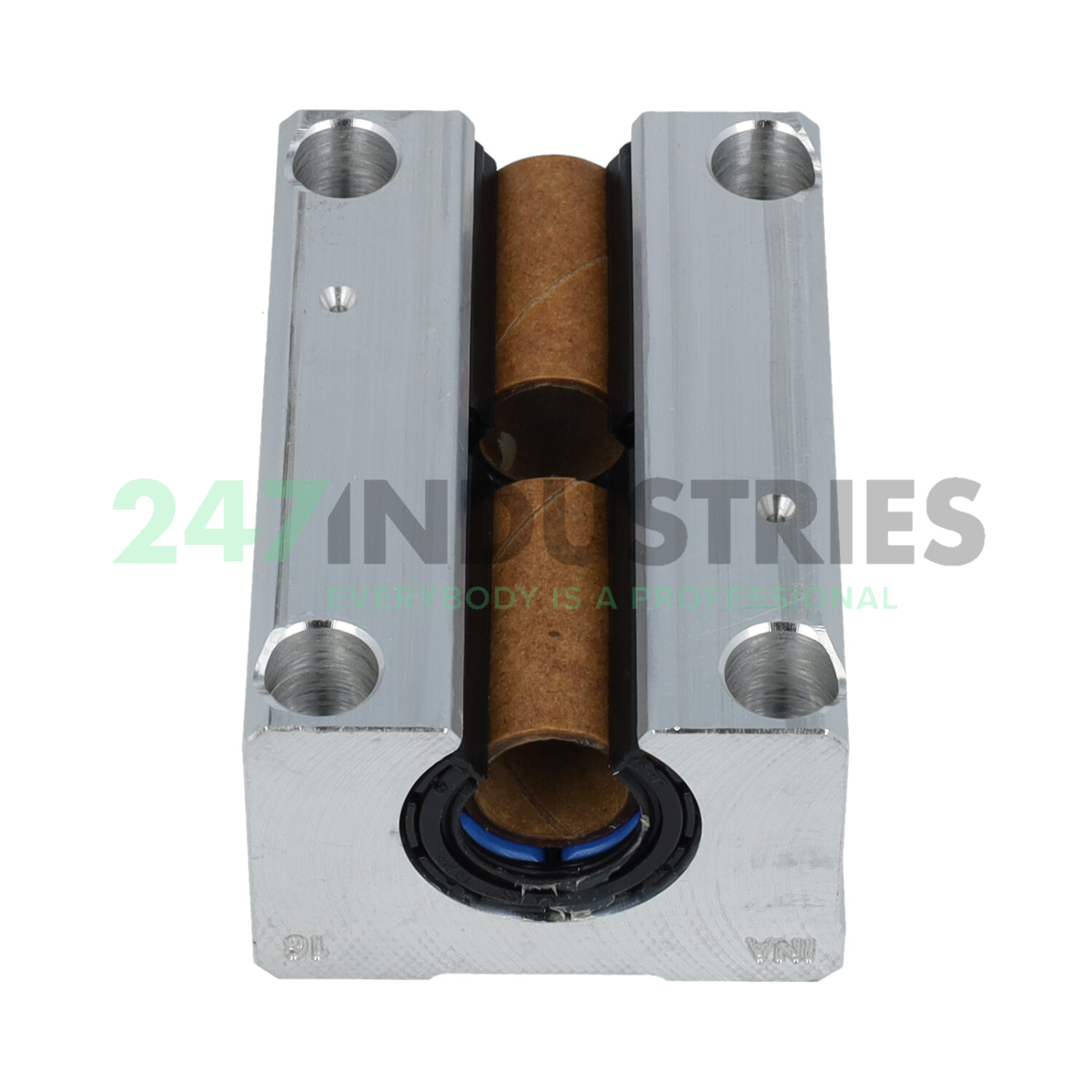

KTSO16-PP-AS INA

All dimensions

1. Inner (d) MM 16
2. Outer (D) MM 53
3. Width (B) MM 78
4. Inner (d) Inch 0.6299
5. Outer (D) Inch 2.0866
6. Width (B) Inch 3.0709
7. Height (H) mm 35
8. Length (L) mm 78
9. Width (b) mm 53

Suffix description

1. PP Lip Seal On Both Sides Of Bearing
2. AS Lubrication Holes In The Outer Ring Or Lubrication Groove In The Housing

Technical details

1. Availability 3 pcs
2. Brand INA
3. Item number KTSO16-PP-AS INA
4. Also known as 0067968000000

5. EAN 4012802051834
6. Category Linear Ball Bearing Unit

Weight and Dimensions

1. Weight (kg) 0.32

Product Properties

1. Seal 2L - LS-seal at Both Sides

Data from Schaeffler (medias)

1. ECLASS number 23-30-03-06
2. ECLASS2 number 23-30-03-06

Downloads and links

1. Link to manufacturer Link to manufacturer
