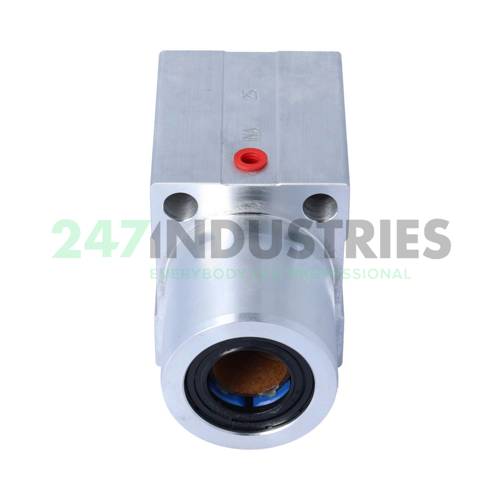

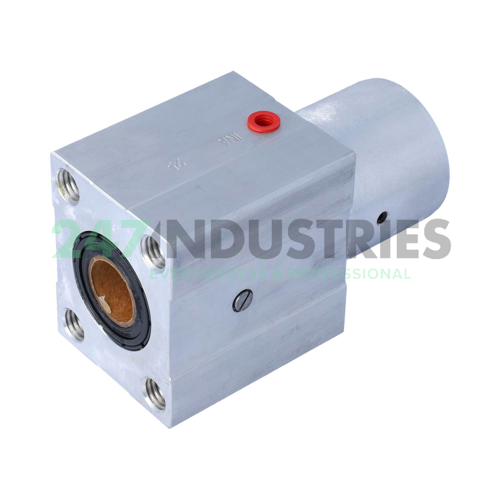

KTFS25-PP-AS INA

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 74
3. Width (B) MM 122
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.9134
6. Width (B) Inch 4.8031
7. Height (H) mm 60
8. Length (L) mm 122
9. Width (b) mm 74

Suffix description

1. PP Lip Seal On Both Sides Of Bearing
2. AS Lubrication Holes In The Outer Ring Or Lubrication Groove In The Housing

Technical details

1. Availability 3 pcs on Tue 7 Apr
2. Brand INA
3. Item number KTFS25-PP-AS INA
4. Also known as 0102112840000

5. EAN 4012802051537
6. Category Linear Ball Bearing Unit

Weight and Dimensions

1. Weight (kg) 0.7

Product Properties

1. Seal 2L - LS-seal at Both Sides

Data from Schaeffler (medias)

1. Load capacity dyn. (C min) 4400
2. Load capacity stat. C0 (C 0 min) 4850
3. ECLASS number 23-30-03-06
4. ECLASS2 number 23-30-03-06

Downloads and links

1. Download datasheet Download datasheet
2. Link to Manufacturer Link to Manufacturer
