KSR16-L0-12-10-17-15 INA

All dimensions

1. Inner (d) MM 16,20
2. Outer (D) MM 111,40
3. Width (B) MM 18,30
4. Inner (d) Inch 0.6378
5. Outer (D) Inch 4.3858
6. Width (B) Inch 0.7205
7. Thickness of sprocket (C 1) mm 10,50
8. Pitch circle diameter (gearing) (D 0) mm 103,70
9. Tip diameter (gearing) (D k) mm 111,40

Technical details

1. Availability 12 pcs
2. Brand INA
3. Item number KSR16-L0-12-10-17-15 INA
4. Also known as 0008339160000

5. EAN 4012802789805
6. Category Specials

Weight and Dimensions

1. Weight (kg) 0.58

Data from Schaeffler (medias)

1. ECLASS number 23-17-02-90
2. ECLASS2 number 23-17-02-90

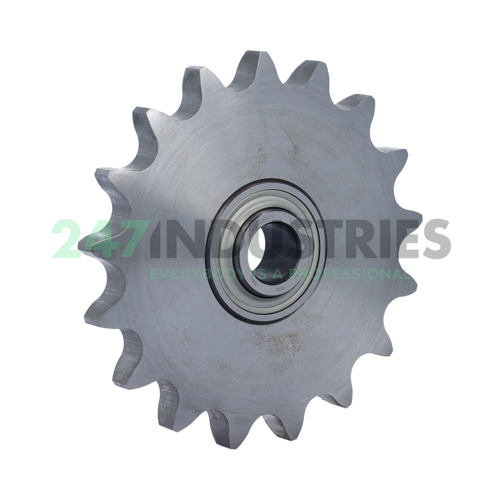

3. Medias description Roller chain idler sprocket units KSR..-L0, sprocket made from steel or sintered iron
