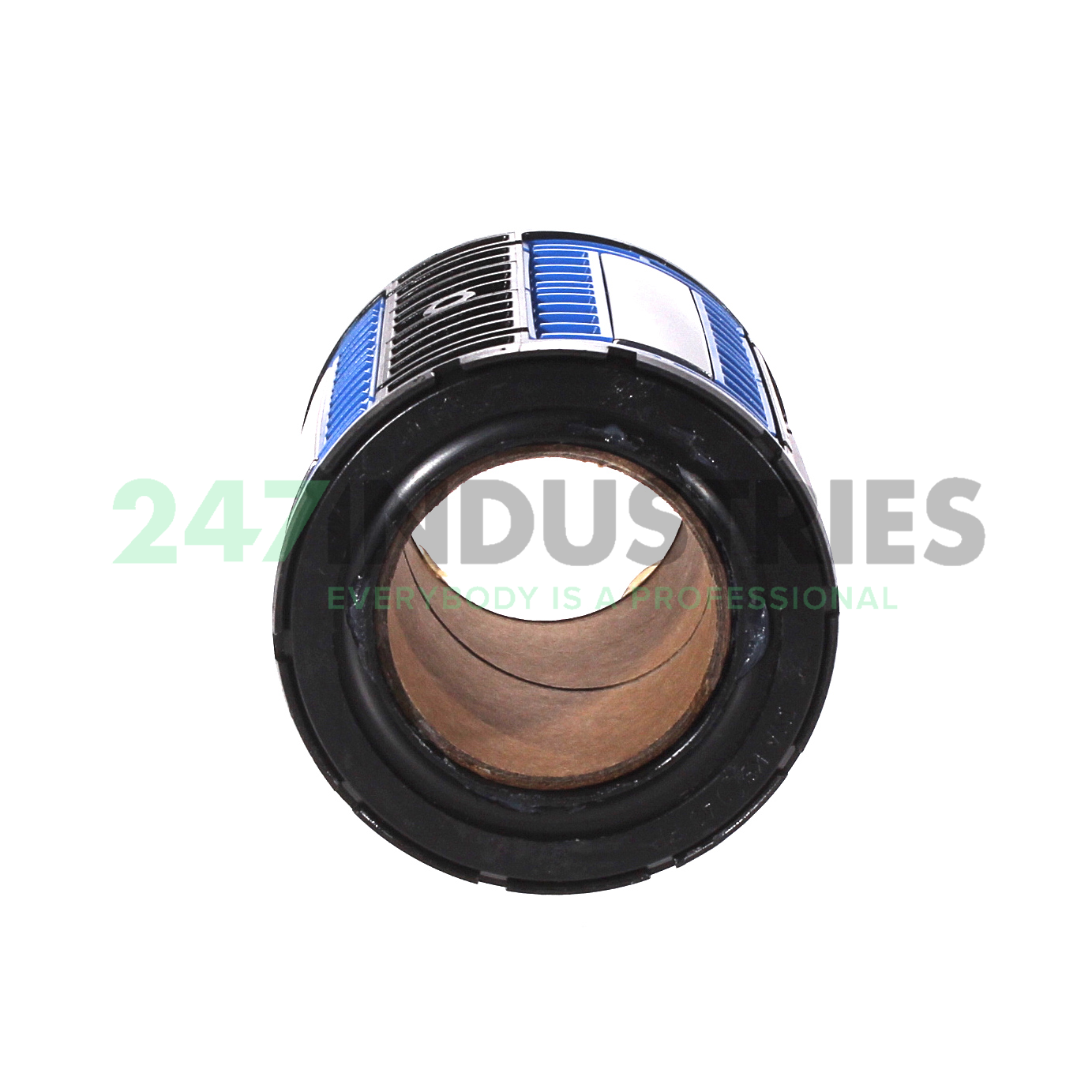

KS40-PP INA

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 62
3. Width (B) MM 80
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.4409
6. Width (B) Inch 3.1496
7. Length (L) mm 80

Suffix description

1. PP Lip Seal On Both Sides Of The Bearing

Technical details

1. Availability 37 pcs
2. Brand INA
3. Item number KS40-PP INA
4. Also known as 0067537790000

5. EAN 4012802051216
6. Category Linear Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.335

Product Properties

1. Seal 2L - LS-seal at Both Sides

Data from Schaeffler (medias)

1. Load capacity dyn. (C min) 8800
2. Load capacity stat. (C 0 min) 7200
3. Load capacity stat. (C 0 max) 9600
4. ECLASS number 23-30-03-01
5. ECLASS2 number 23-30-03-01
6. Medias description Linear ball bearings KS..-PP, heavy load range, lip seals on both sides
