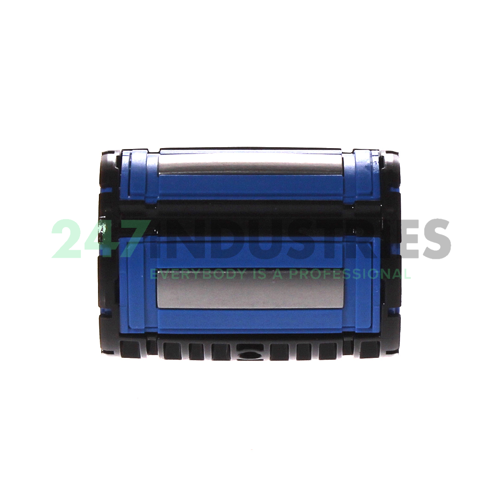

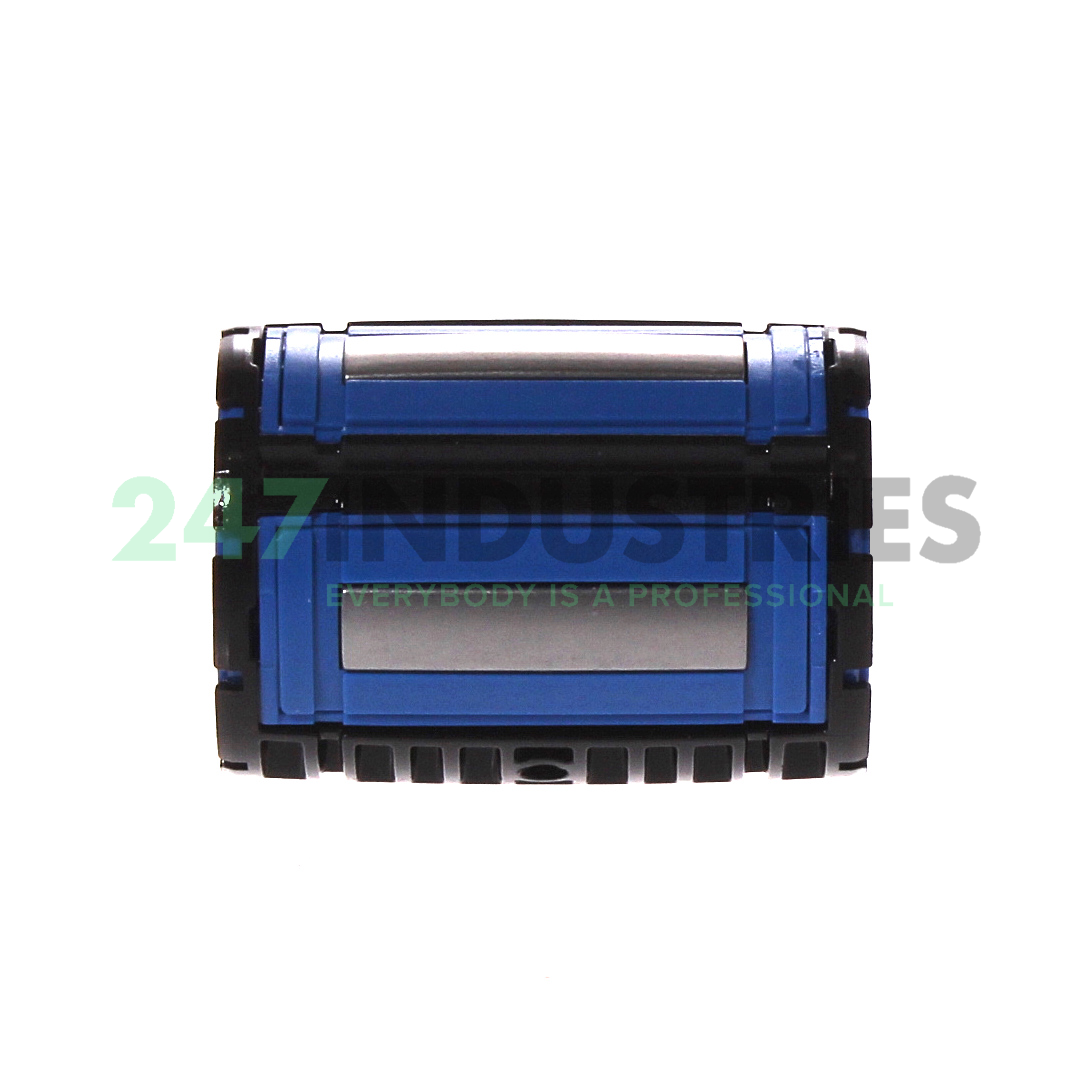

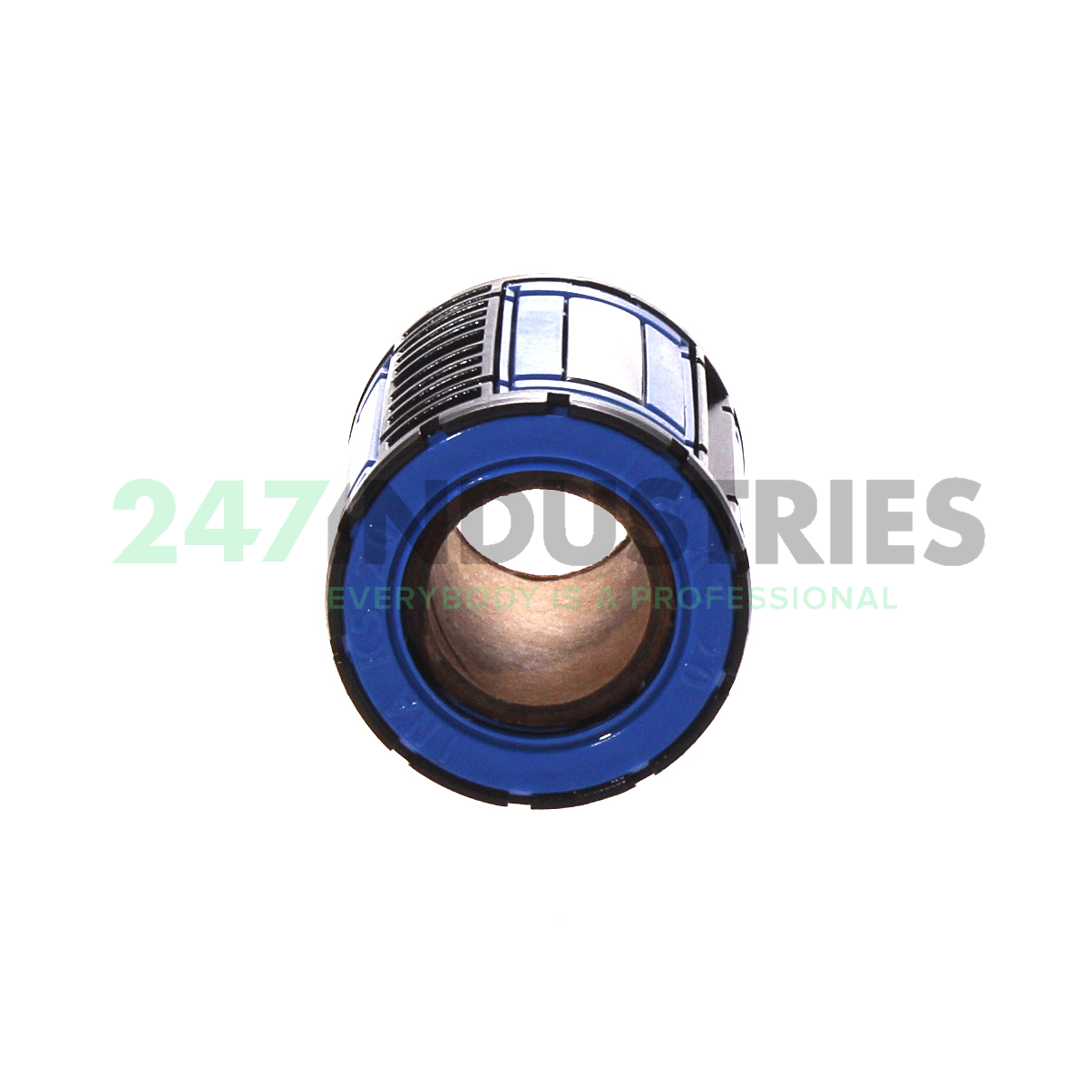

KS20 INA

All dimensions

1. Inner (d) MM 20,00
2. Outer (D) MM 32,00
3. Width (B) MM 45,00
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.2598
6. Width (B) Inch 1.7717
7. Length (L) mm 45,00

Technical details

1. Availability 5 pcs
2. Brand INA
3. Item number KS20 INA
4. Also known as 0055543490000
   KS2045

5. EAN 4012802051155
6. Category Linear Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.051

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Load capacity dyn. (C min) "1780.0000"
2. Load capacity stat. (C 0 min) "1600.0000"
3. Load capacity stat. (C 0 max) "2310.0000"
4. ECLASS number 23-30-03-01
5. ECLASS2 number 23-30-03-01
6. Medias description Linear ball bearings KS.., heavy load range, gap seals on both sides

Downloads and links

1. Link to manufacturer Link to manufacturer
