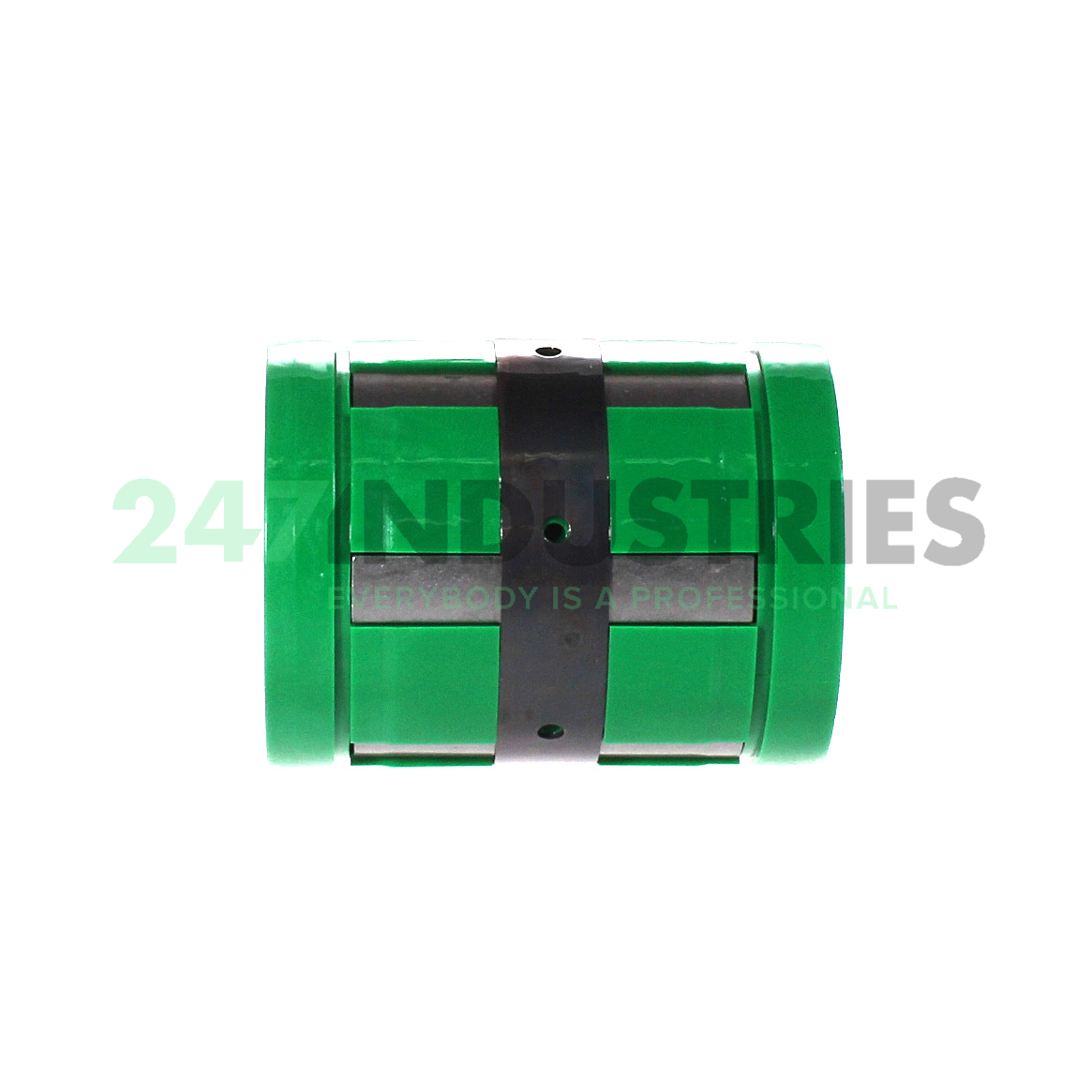

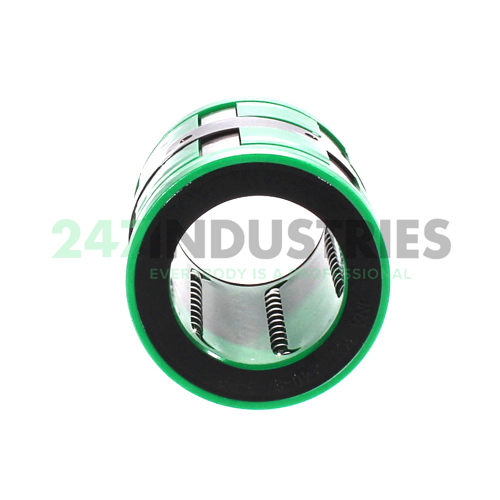

KN40-B INA

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 62
3. Width (B) MM 80
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.4409
6. Width (B) Inch 3.1496
7. Length (L) mm 80

Suffix description

1. B Guideways And Carriages May Only Be Combined With Each Other Within The Same Accuracy And Interchangeability Class, So A Can Only Be Combined With A, And B Can Only Be Combined With B

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number KN40-B INA
4. Also known as 0296806970000
   KN4080
   LBCD40A
   LMES40
   R0670-040-00
   SPM40
   TK40

5. EAN 4047643206716
6. Category Linear Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.26

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Load capacity dyn. (C min) 6300
2. Load capacity stat. (C 0 min) 4350
3. Load capacity stat. (C 0 max) 5600
4. ECLASS number 23-30-03-01
5. ECLASS2 number 23-30-03-01
6. Medias description Linear ball bearings KN..-B, Lightweight range, closed design, with relubrication facility, adjustable angle
