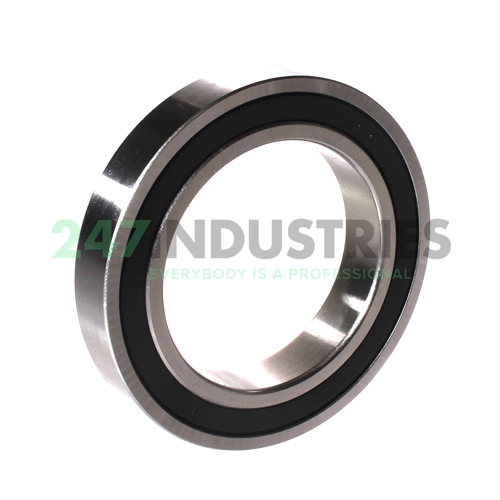

KH61909 2RZ E TA A7 UL GMN Paul Müller Industrie

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 68
3. Width (B) MM 12
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 2.6772
6. Width (B) Inch 0.4724

Suffix description

1. 2RZ Ball Bearing To DIN 623, Two Low Friction (Gap) Seals
2. E 25° Contact Angle
3. TA One Piece Outer Ring Centred Machined Laminated Phenolic
4. A7 Tolerance Class ABEC 7 According To Abma
5. UL Universal Matching - Light Preload

Technical details

1. Availability 10 pcs
2. Brand GMN Paul Müller Industrie
3. Item number KH61909 2RZ E TA A7 UL GMN Paul Müller Industrie
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.128

Product Properties

1. Seal 2RZ - Rubber and Steel Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 25 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
