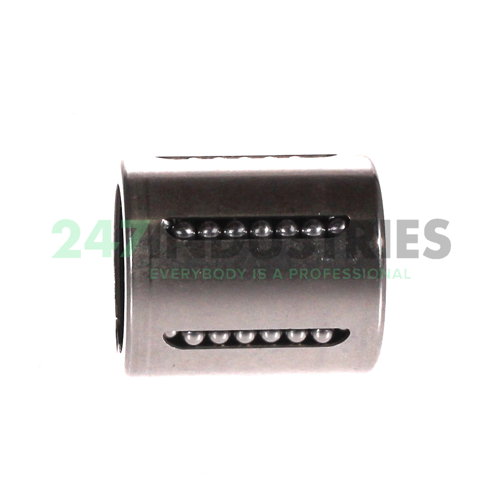

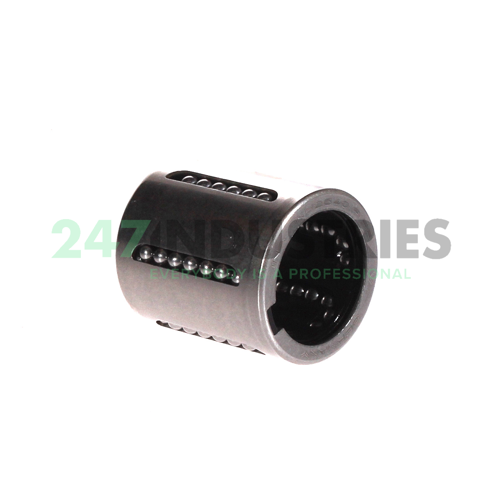

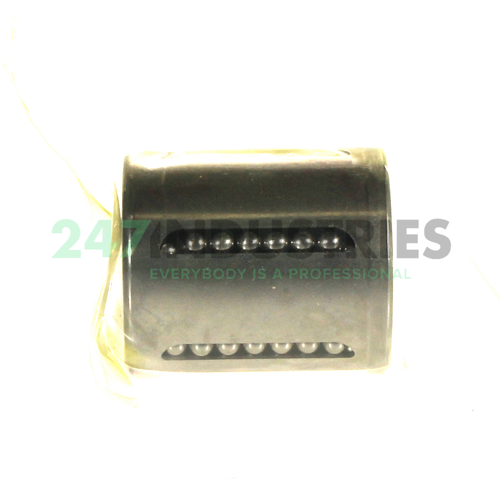

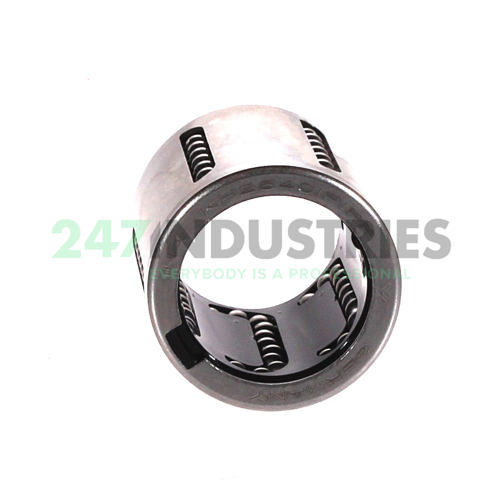

KH25-B INA

Linear ball bearing (compact range) KH

Stock
not in stock
Brand INA
Article number KH25-B INA
Inside diameter 25mm
Outside diameter 35mm
Width 40mm
Product description

The KH25-B INA is a ball bushing or linear ball bearing from INA's compact design series. These ball bushings have low radial heights. This makes them very suitable for applications with limited radial clearance. This is often the case in machines for the food and packaging industry. Like all other linear bearings in this compact range, the KH25-B INA has a sealed design for use on unsupported shafts.

The metal outer ring of the bearing contains a plastic cage. When the ball bushing is in motion, the rolling elements follow a trajectory returning through openings in the outer ring. INA linear ball bearings in the compact design series offer a remarkably good price/performance ratio.

Help with this product

Downloads and links

Similar to: KH25-B INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 25
  2. Outer (D) MM 35
  3. Width (B) MM 40
  4. Inner (d) Inch 0.9843
  5. Outer (D) Inch 1.378
  6. Width (B) Inch 1.5748
  7. Length (L) mm 40
  8. Outer diameter (D) mm 35

Suffix description

  1. B Guideways And Carriages May Only Be Combined With Each Other Within The Same Accuracy And Interchangeability Class, So A Can Only Be Combined With A, And B Can Only Be Combined With B

Technical details

  1. Availability 0 pcs
  2. Brand INA
  3. Item number KH25-B INA
  4. Also known as 0000450200000
    KH2540
    KH2540B
  5. EAN 4047643173483
  6. Category Linear Ball Bearing

Weight and Dimensions

  1. Weight (kg) 0.06

Product Properties

  1. Seal No Seal

Data from Schaeffler (medias)

  1. Load capacity dyn. (C min) 2280
  2. Load capacity stat. (C 0 min) 1670
  3. Load capacity stat. (C 0 max) 2130
  4. ECLASS number 23-30-03-01
  5. ECLASS2 number 23-30-03-01
  6. Medias description Linear ball bearings with preservative, not sealed, with relubrication facility

Downloads and links

  1. Link to manufacturer Link to manufacturer
