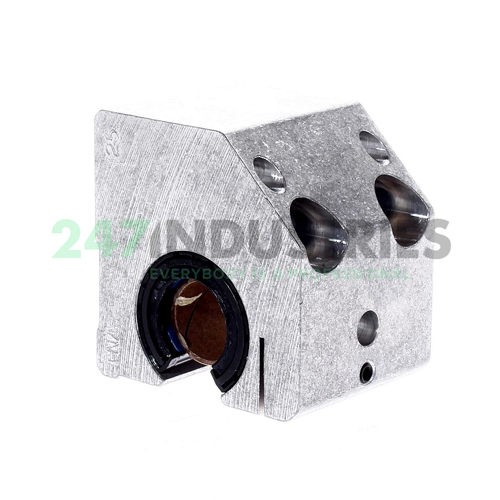

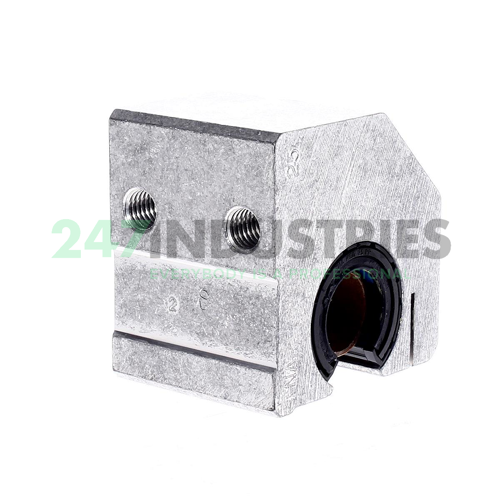

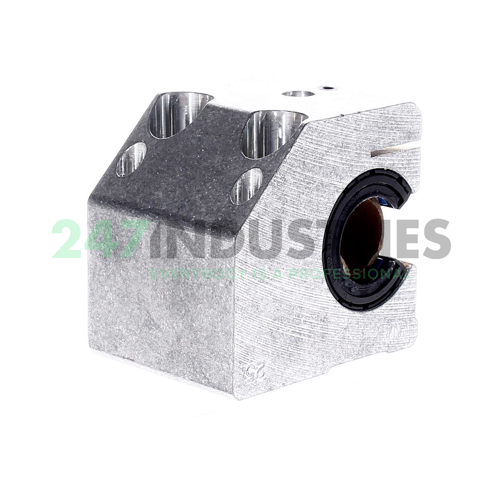

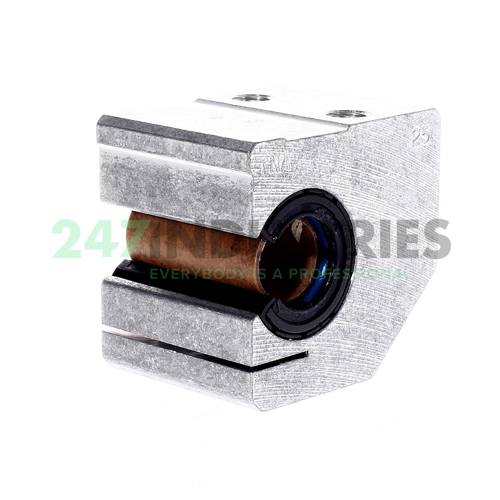

KGSCS25-PP-AS INA

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 75
3. Width (B) MM 58
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.9528
6. Width (B) Inch 2.2835
7. Height (H) mm 72
8. Length (L) mm 58
9. Width (b) mm 75

Suffix description

1. PP Lip Seal On Both Sides Of Bearing
2. AS Lubrication Holes In The Outer Ring Or Lubrication Groove In The Housing

Technical details

1. Availability 16 pcs
2. Brand INA
3. Item number KGSCS25-PP-AS INA
4. Also known as 0101919410000

5. EAN 4054364147976
6. Category Linear Ball Bearing Unit

Weight and Dimensions

1. Weight (kg) 0.68

Product Properties

1. Seal 2L - LS-seal at Both Sides

Data from Schaeffler (medias)

1. Load capacity stat. C0 max 4300
2. ECLASS number 23-30-03-06
3. ECLASS2 number 23-30-03-06

Downloads and links

1. Link to manufacturer Link to manufacturer
