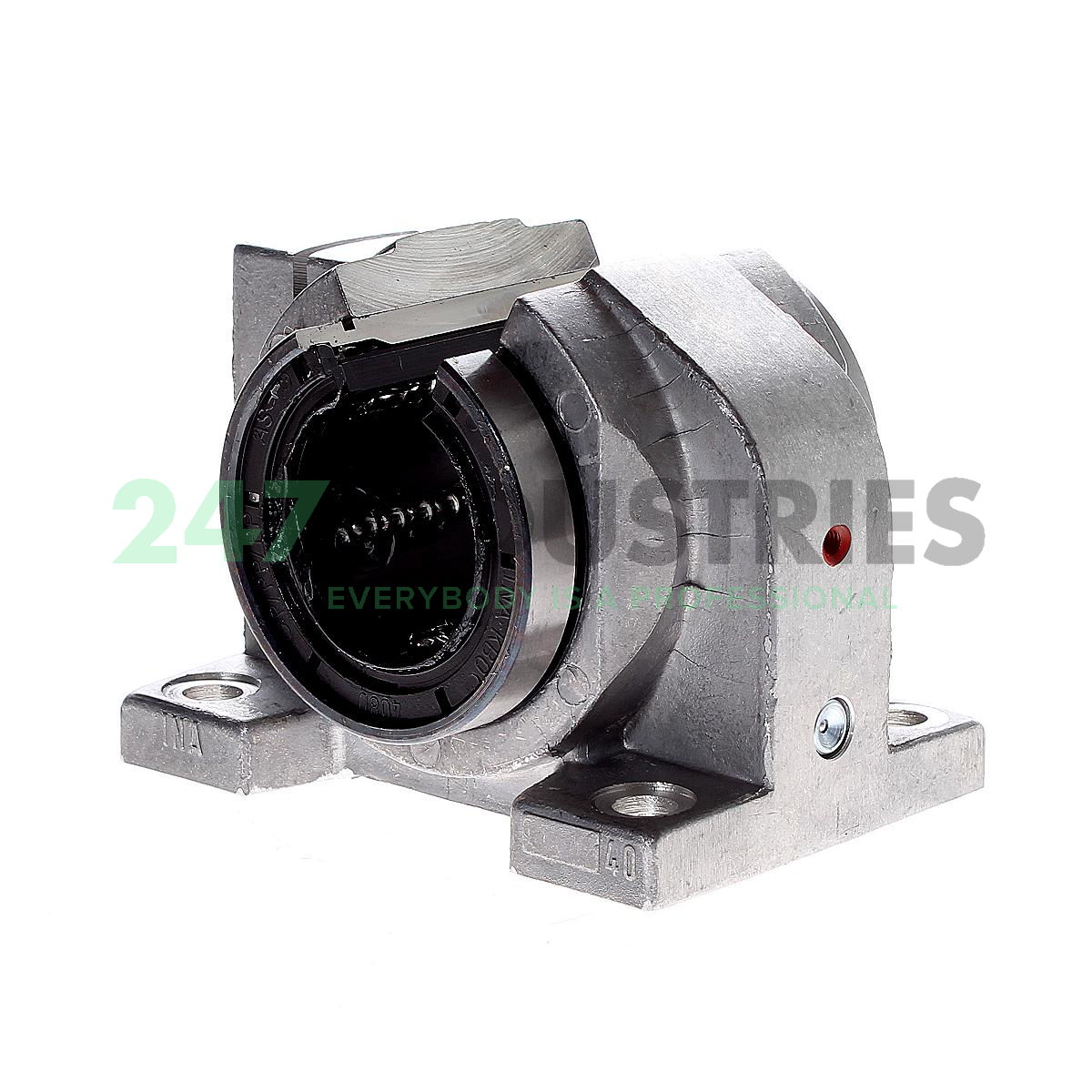

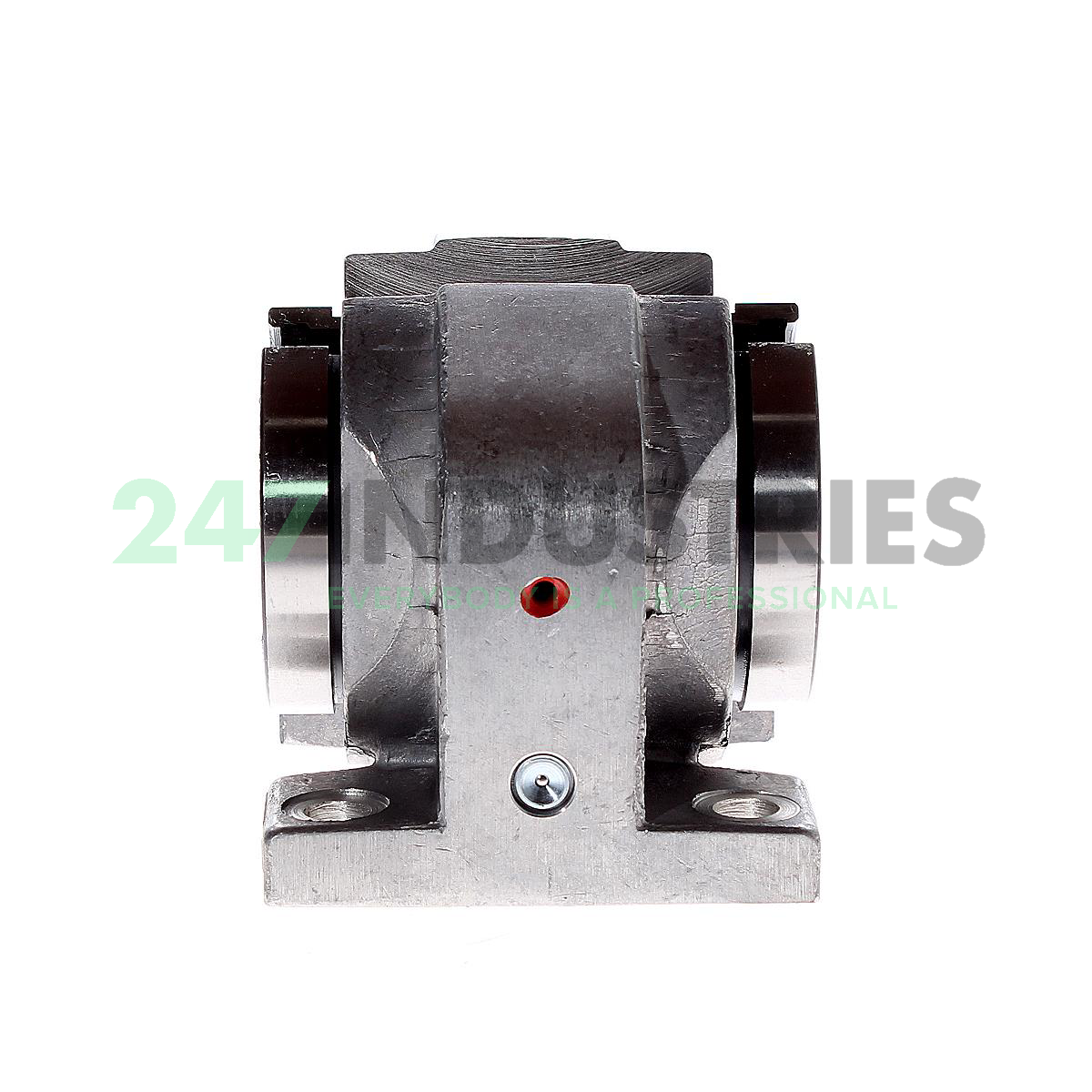

KGBAO40-PP-AS INA

Linear ball bearing and housing units (heavy range) KGBAO..PP AS, open design, s

Stock
29 pcs in stock and ready for shipment
Brand INA
Article number KGBAO40-PP-AS INA
Inside diameter 40mm
Outside diameter 108mm
Width 80mm
Product description

The KGBAO40-PP-AS INA is a linear ball bearing unit or ball bushing unit that is part of INA's machined range. The linear bearing is firmly anchored in its housing. The robust construction of the housing allows use of the full load capacity of the ball bushing.

The open design makes this type suitable for use on a supported shaft. In addition, this linear ball bearing unit is adjustable via a groove for custom radial clearances. Simple screw fastening makes mounting the bearing on the connection construction child's play, and a convenient centering edge on the housing facilitates alignment. Finally, centering holes allow for fast, additional dowel connection.

Help with this product

Downloads and links

Similar to: KGBAO40-PP-AS INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 40
  2. Outer (D) MM 108
  3. Width (B) MM 80
  4. Inner (d) Inch 1.5748
  5. Outer (D) Inch 4.252
  6. Width (B) Inch 3.1496
  7. Height (H) mm 82,5
  8. Length (L) mm 80

Suffix description

  1. PP Lip Seal On Both Sides Of Bearing
  2. AS Lubrication Holes In The Outer Ring Or Lubrication Groove In The Housing

Technical details

  1. Availability 29 pcs
  2. Brand INA
  3. Item number KGBAO40-PP-AS INA
  4. Also known as 0017439020000
    KGBAO4080PP AS
  5. EAN 4012802047981
  6. Category Linear Ball Bearing Unit

Weight and Dimensions

  1. Weight (kg) 1.07

Product Properties

  1. Seal 2L - LS-seal at Both Sides

Data from Schaeffler (medias)

  1. Load capacity dyn. C (C) 6100
  2. ECLASS number 23-30-03-06
  3. ECLASS2 number 23-30-03-06

Downloads and links

  1. Link to manufacturer Link to manufacturer
