KGB25-PP-AS INA

65,40 ex VAT
€ 79,13 in VAT
€ 79,13 in VAT
65,40 ex VAT

Guaranteed same day shipment on orders placed before 18.00h (CEST)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

KGB25-PP-AS INA

Stock
24 pcs in stock and ready for shipment
Brand INA
Article number KGB25-PP-AS INA
Inside diameter 25mm
Outside diameter 80mm
Width 58mm
Product description

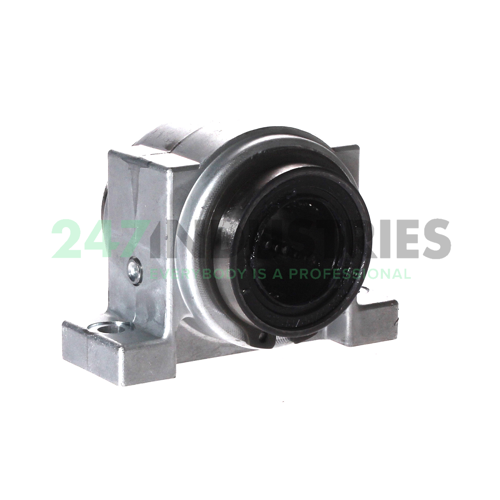

The KGB25-PP-AS INA is a linear ball bearing unit or ball bushing unit that is part of INA's machined range. The linear bearing is firmly anchored in its housing. The robust construction of the housing allows use of the full load capacity of the ball bushing.

The closed design makes this type suitable for use on unsupported shafts. Simple screw fastening makes mounting the bearing on the connection construction child's play, and a convenient centering edge on the housing facilitates alignment. Finally, centering holes allow for fast, additional dowel connection.

Help with this product

Downloads and links

Similar to: KGB25-PP-AS INA

No similar products found

Product specifications

All dimensions

  1. Inner (d) MM 25
  2. Outer (D) MM 80
  3. Width (B) MM 58
  4. Inner (d) Inch 0.9843
  5. Outer (D) Inch 3.1496
  6. Width (B) Inch 2.2835
  7. Height (H) mm 57,5
  8. Length (L) mm 58
  9. Width (b) mm 80

Suffix description

  1. PP Lip Seal On Both Sides Of Bearing
  2. AS Lubrication Holes In The Outer Ring Or Lubrication Groove In The Housing

Technical details

  1. Availability 24 pcs
  2. Brand INA
  3. Item number KGB25-PP-AS INA
  4. Also known as 0015662100000
    KGB2558PP AS
  5. EAN 4012802047875
  6. Category Linear Ball Bearing Unit

Weight and Dimensions

  1. Weight (kg) 0.58

Product Properties

  1. Seal 2L - LS-seal at Both Sides

Data from Schaeffler (medias)

  1. ECLASS number 23-30-03-06
  2. ECLASS2 number 23-30-03-06

Downloads and links

  1. Link to manufacturer Link to manufacturer
