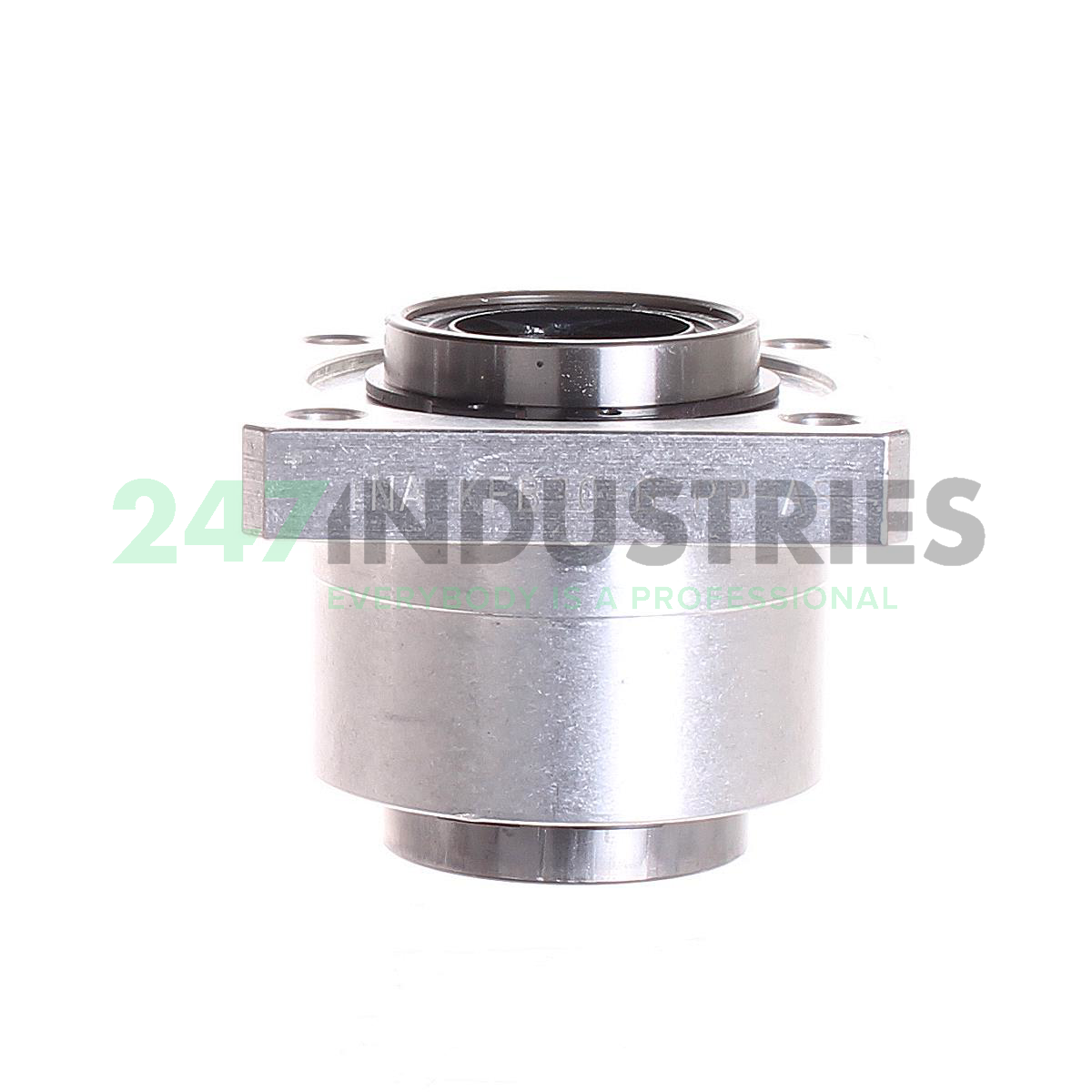

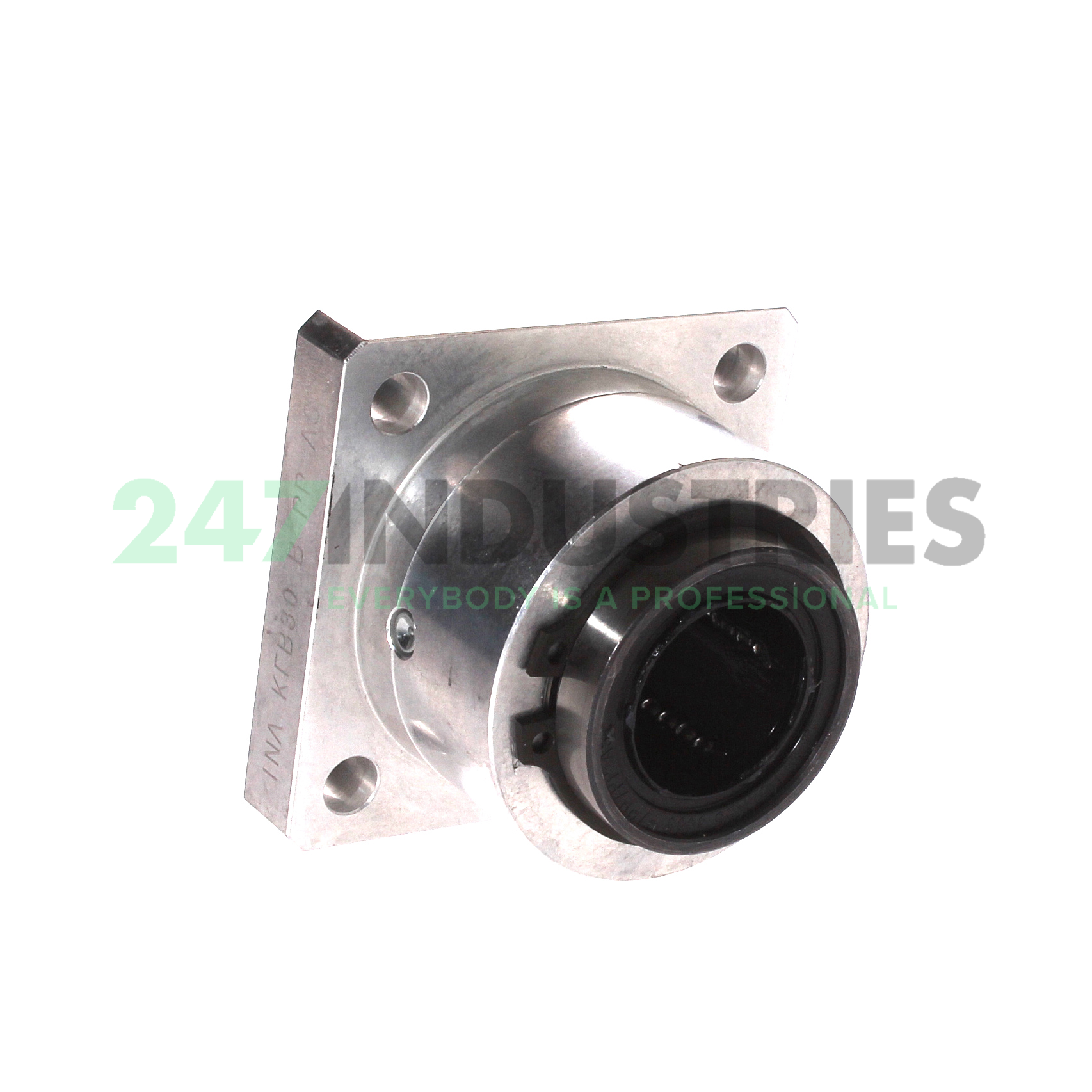

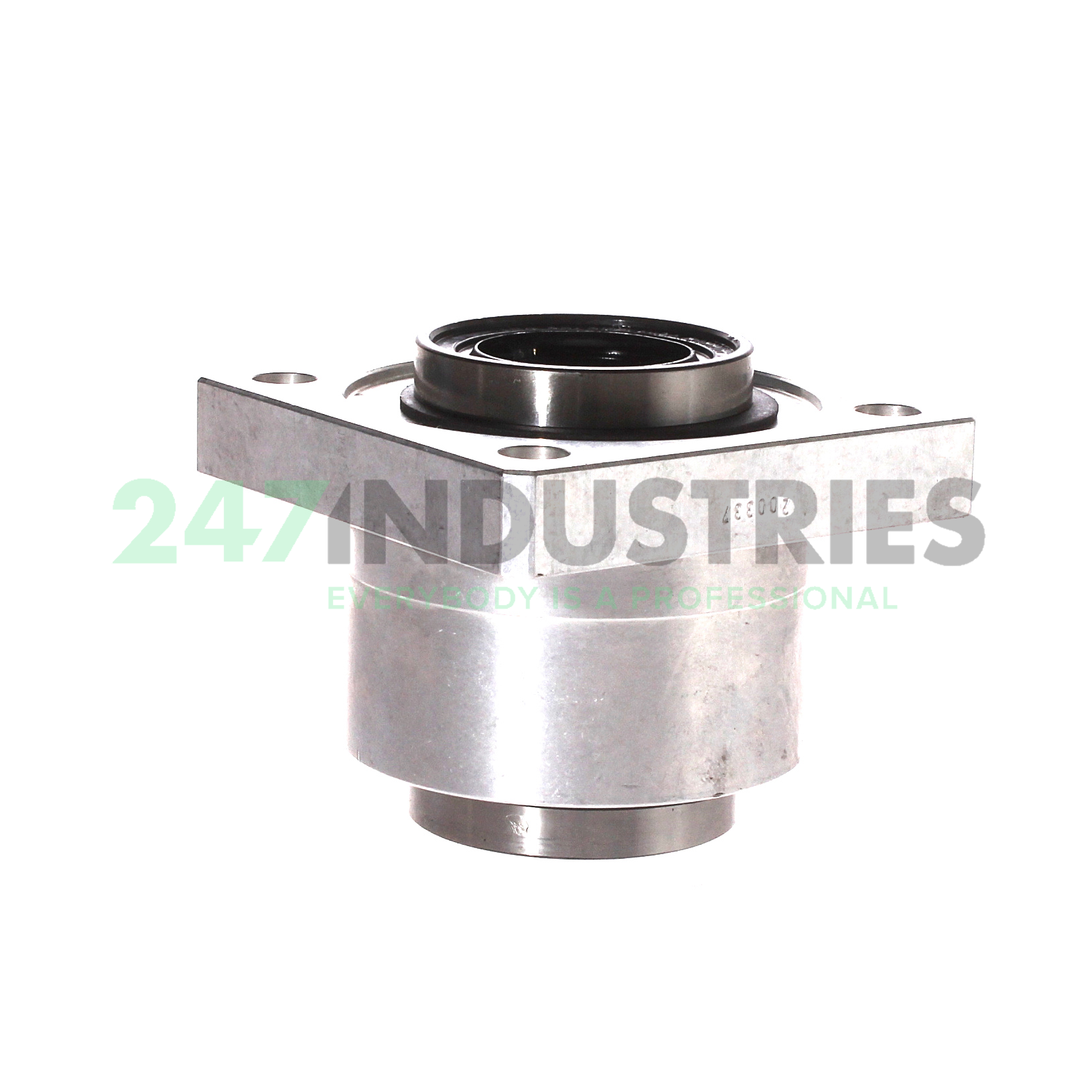

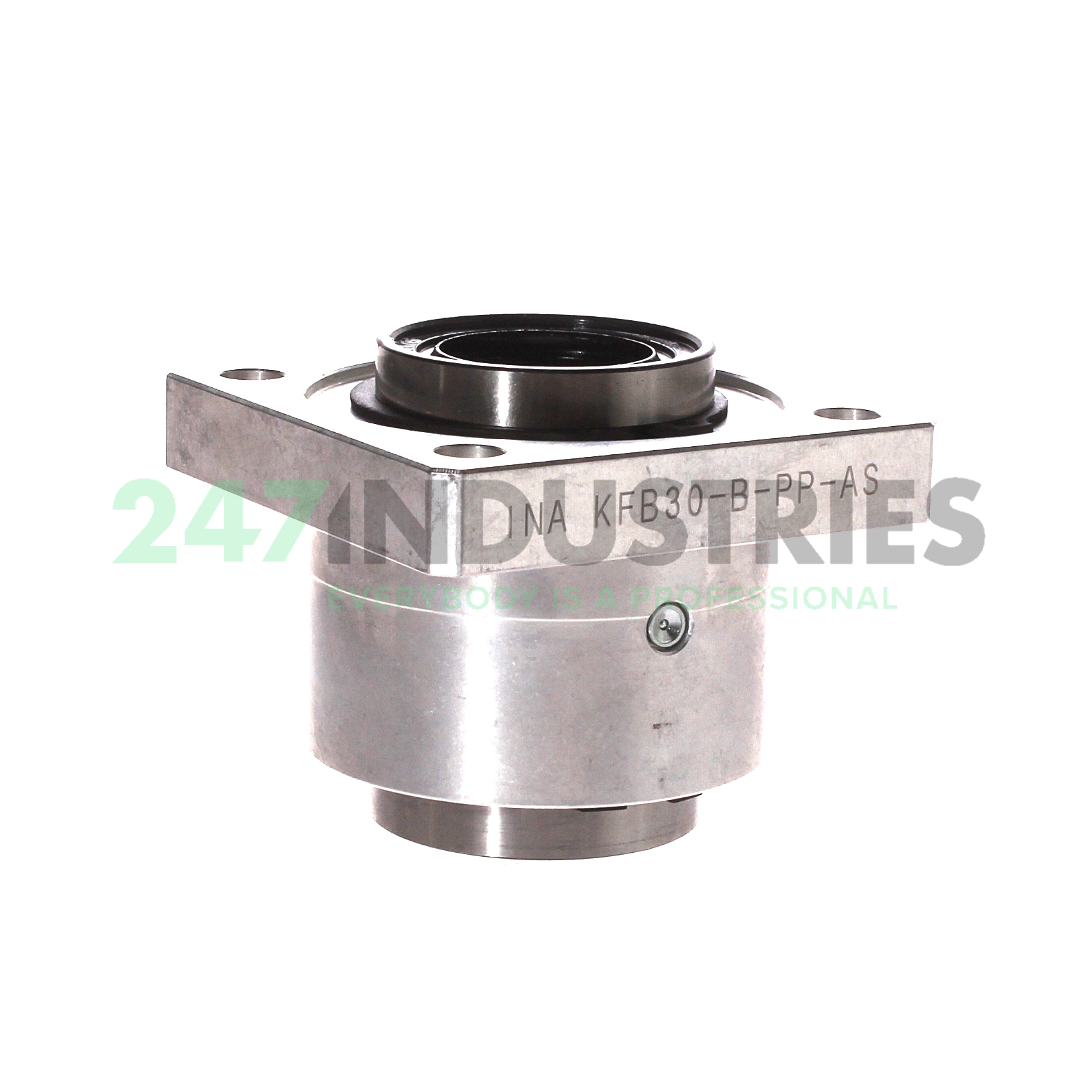

KFB30-B-PP-AS INA

All dimensions

1. Inner (d) MM 30,00
2. Outer (D) MM 80,00
3. Width (B) MM 68,00
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 3.1496
6. Width (B) Inch 2.6772
7. Length (L) mm 68,00
8. Width (b) mm 80,00

Suffix description

1. B
2. PP Lip Seal On Both Sides Of Bearing
3. AS Lubrication Holes In The Outer Ring Or Lubrication Groove In The Housing

Technical details

1. Availability 15 pcs
2. Brand INA
3. Item number KFB30-B-PP-AS INA
4. Also known as 0700610840000

5. EAN 4054362438144
6. Category Linear Ball Bearing Unit

Weight and Dimensions

1. Weight (kg) 0.64

Product Properties

1. Seal 2L - LS-seal at Both Sides

Data from Schaeffler (medias)

1. Load capacity dyn. C (C) "3600.0000"
2. ECLASS number 23-30-03-06
3. ECLASS2 number 23-30-03-06
