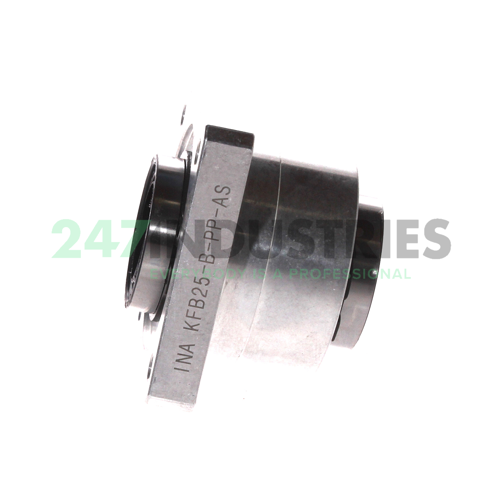

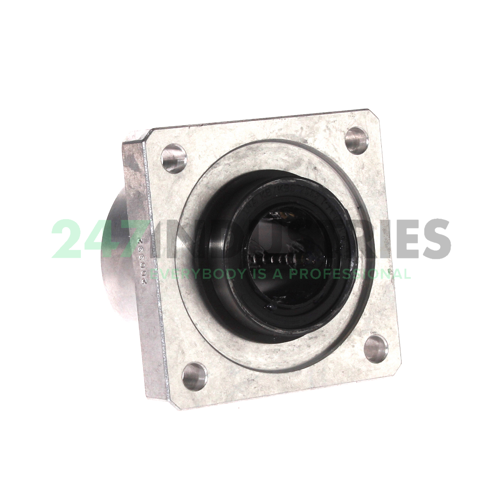

KFB25-B-PP-AS INA

All dimensions

1. Inner (d) MM 25,00
2. Outer (D) MM 0,00
3. Width (B) MM 0,00
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 0.0000
6. Width (B) Inch 0.0000
7. Length (L) mm 58,00
8. Width (b) mm 70,00

Suffix description

1. B
2. PP Lip Seal On Both Sides Of Bearing
3. AS Lubrication Holes In The Outer Ring Or Lubrication Groove In The Housing

Technical details

1. Availability 7 pcs
2. Brand INA
3. Item number KFB25-B-PP-AS INA
4. Also known as 0700608350000

5. EAN 4054364068738
6. Category Linear Ball Bearing Unit

Weight and Dimensions

1. Weight (kg) 0.42

Product Properties

1. Seal 2L - LS-seal at Both Sides

Data from Schaeffler (medias)

1. Load capacity dyn. C (C) "2800.0000"
2. ECLASS number 23-30-03-06
3. ECLASS2 number 23-30-03-06
