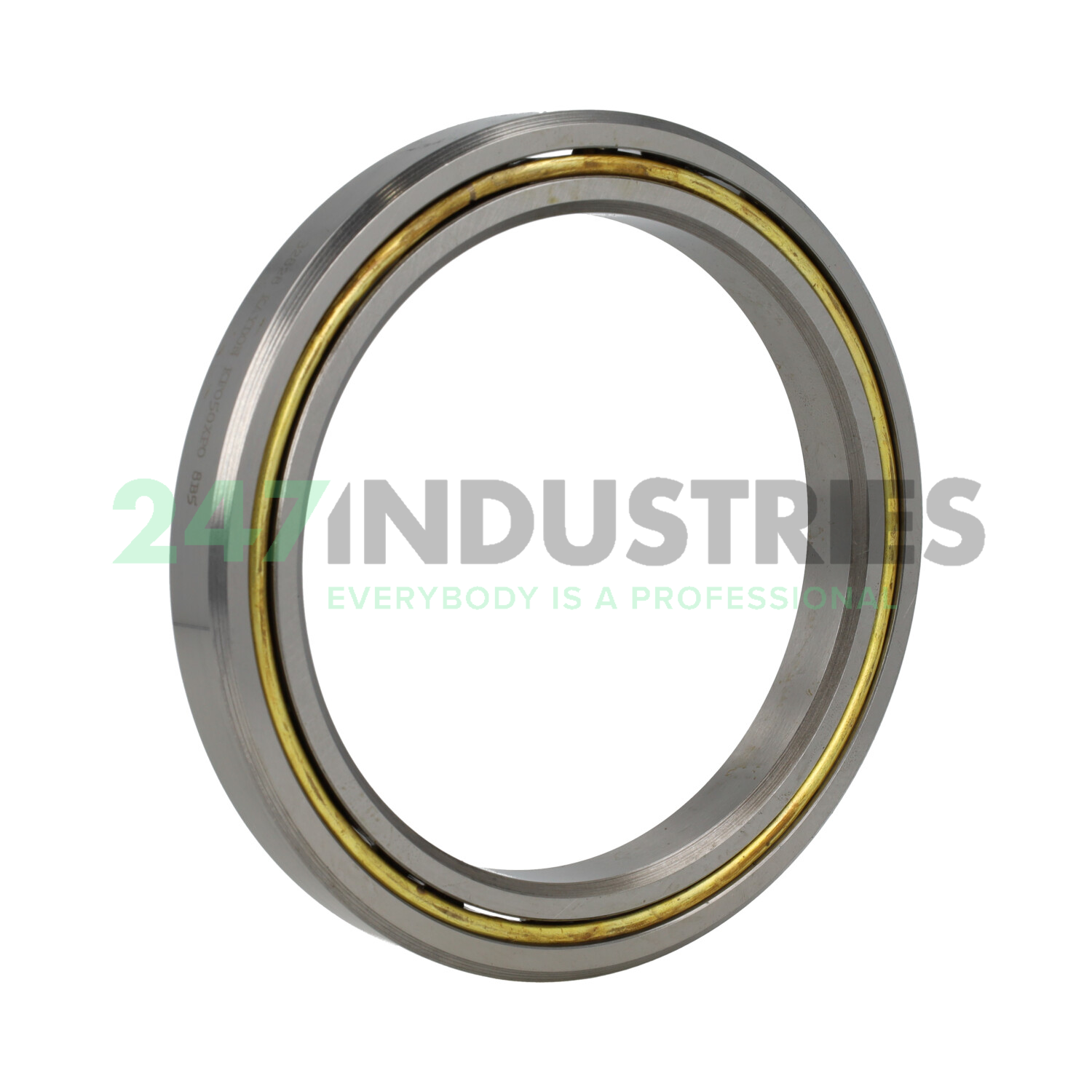

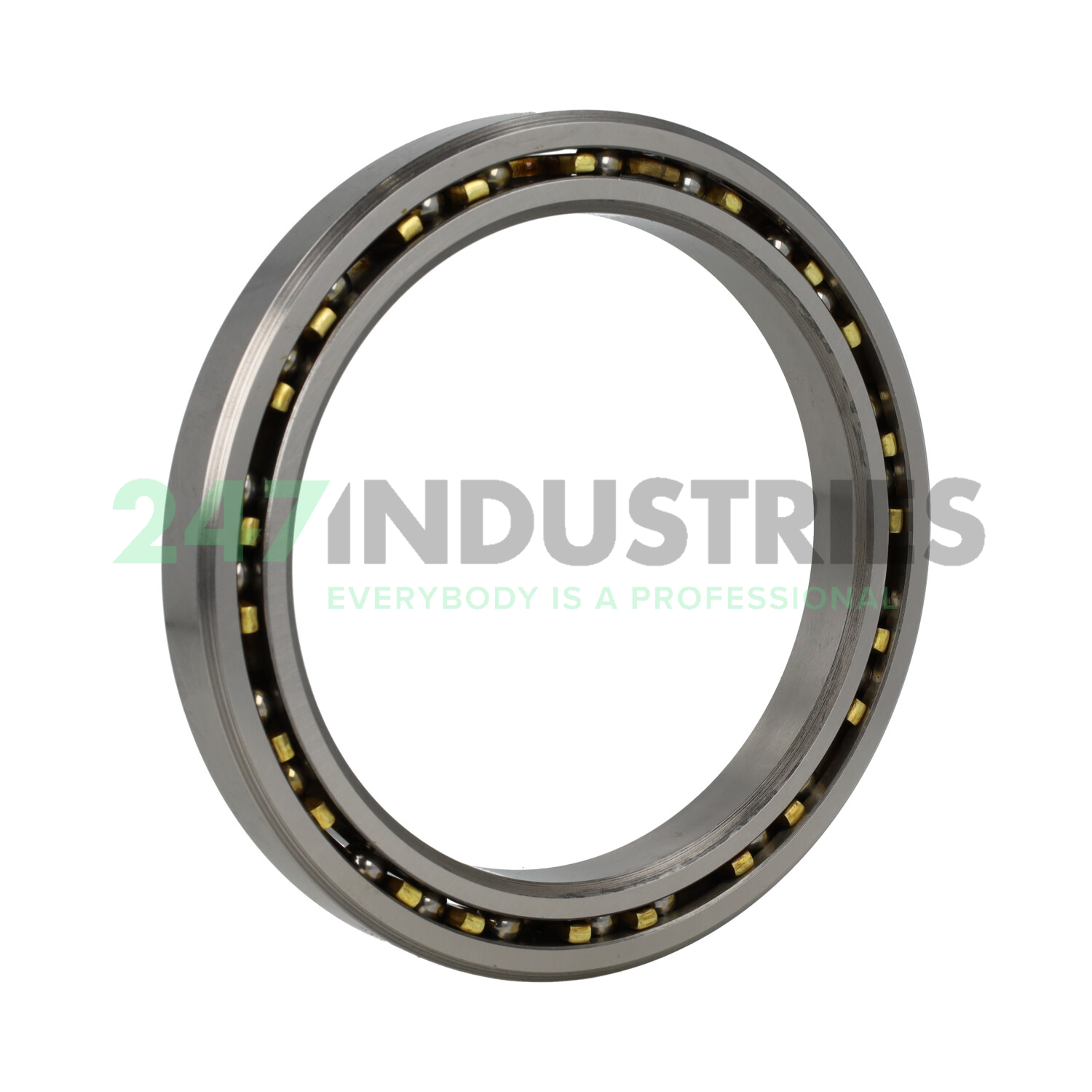

KF050XP0 Kaydon

All dimensions

1. Inner (d) MM 127
2. Outer (D) MM 165,1
3. Width (B) MM 19,05
4. Inner (d) Inch 5
5. Outer (D) Inch 6.5
6. Width (B) Inch 0.75

Suffix description

1. X Four-Point Contact
2. P Standard Formed Ring “Snap-Over” Type (Material—Brass Or Non-Metallic Composite)
3. 0 KAYDON Precision Class 1 Per ABEC 1F

Technical details

1. Availability 1 pc
2. Brand Kaydon
3. Item number KF050XP0 Kaydon
4. Also known as CSXF050
   FPXF500
   L18VA500
   NBX12719

5. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 1.04

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. External Modification No External Modification
4. Radial Internal Play Cn Normal Internal Play
5. Precision ABEC.1 Tolerances
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Standard
