KBO25 INA

Linear ball bearings (heavy range) KBO, open design

Stock
4 pcs in stock and ready for shipment
Brand INA
Article number KBO25 INA
Inside diameter 25,00mm
Outside diameter 40,00mm
Width 58,00mm
Product description

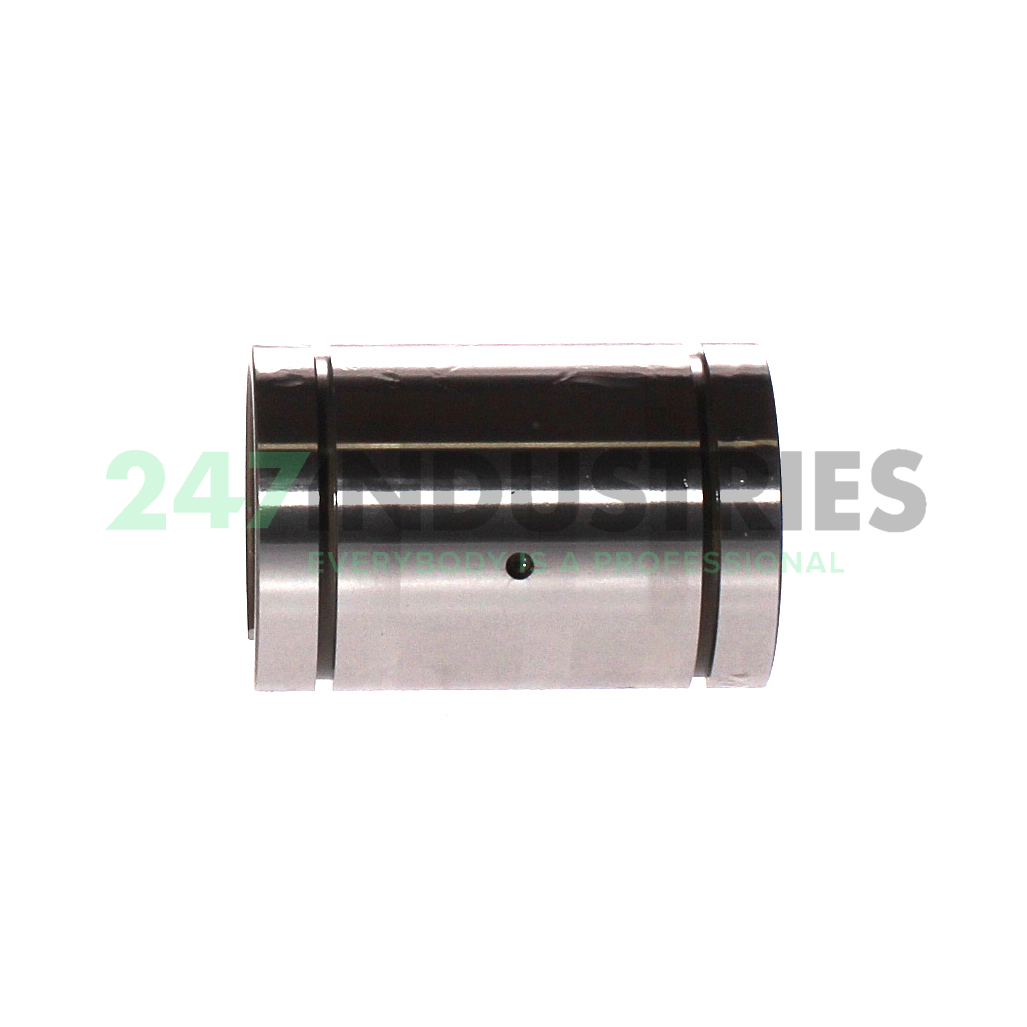

The KBO25 INA is a ball bushing or linear ball bearing from INA's machined range. These ball bushings are particularly durable and they have a high running accuracy. The balls run with great precision thanks to a special spring washer. The result is low and even displacement resistance, also under severe operating conditions and regardless of the installed position.

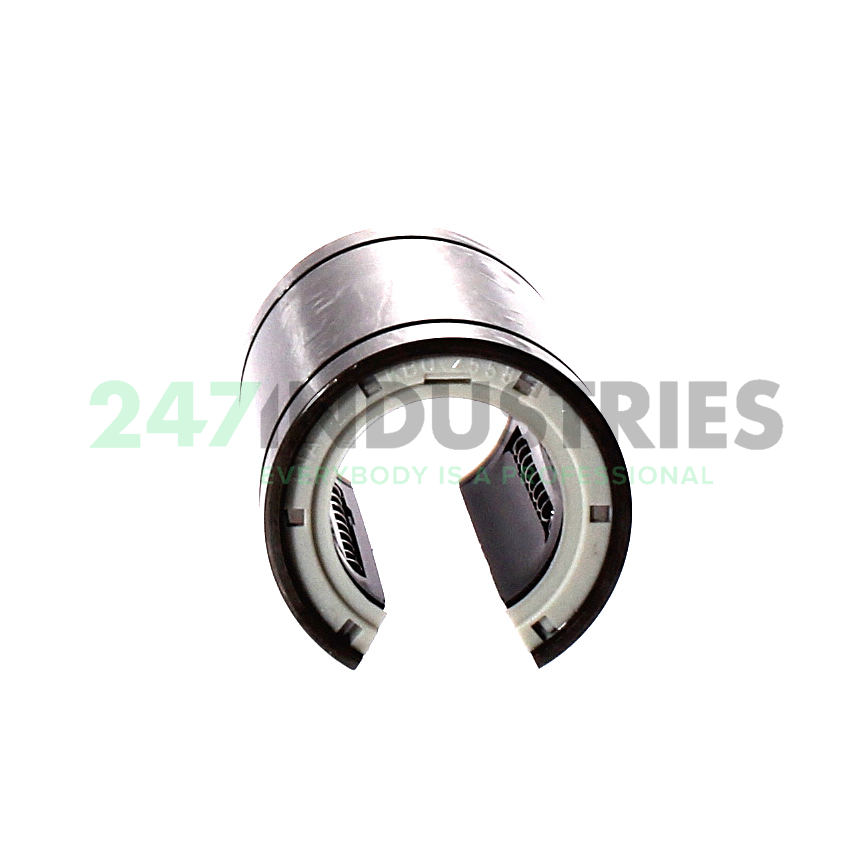

The open design makes this bearing suitable for use on a supported shafts. The outer ring accommodates a plastic cage and balls. When the ball bushing is in motion, the rolling elements follow a trajectory returning through openings in the outer ring.

Read more Show less
Help with this product

Downloads and links

Similar to: KBO25 INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 25,00
  2. Outer (D) MM 40,00
  3. Width (B) MM 58,00
  4. Inner (d) Inch 0.9843
  5. Outer (D) Inch 1.5748
  6. Width (B) Inch 2.2835
  7. Length (L) mm 58,00

Technical details

  1. Availability 4 pcs
  2. Brand INA
  3. Item number KBO25 INA
  4. Also known as 0012536110000
    LAN25X40X58
    LBCT25A
  5. EAN 4012802585568
  6. Category Linear Ball Bearing

Weight and Dimensions

  1. Weight (kg) 0.12

Product Properties

  1. Seal No Seal

Data from Schaeffler (medias)

  1. Load capacity stat. (C 0 max) "2300.0000"
  2. ECLASS number 23-30-03-01
  3. ECLASS2 number 23-30-03-01
  4. Medias description Linear ball bearings KBO.., machined range, open design, corrosion-resistant design possible

Downloads and links

  1. Link to manufacturer Link to manufacturer
Show all details Show less
