KB16-P INA

Linear Ball Bearing

Stock
not in stock
Brand INA
Article number KB16-P INA
Product description

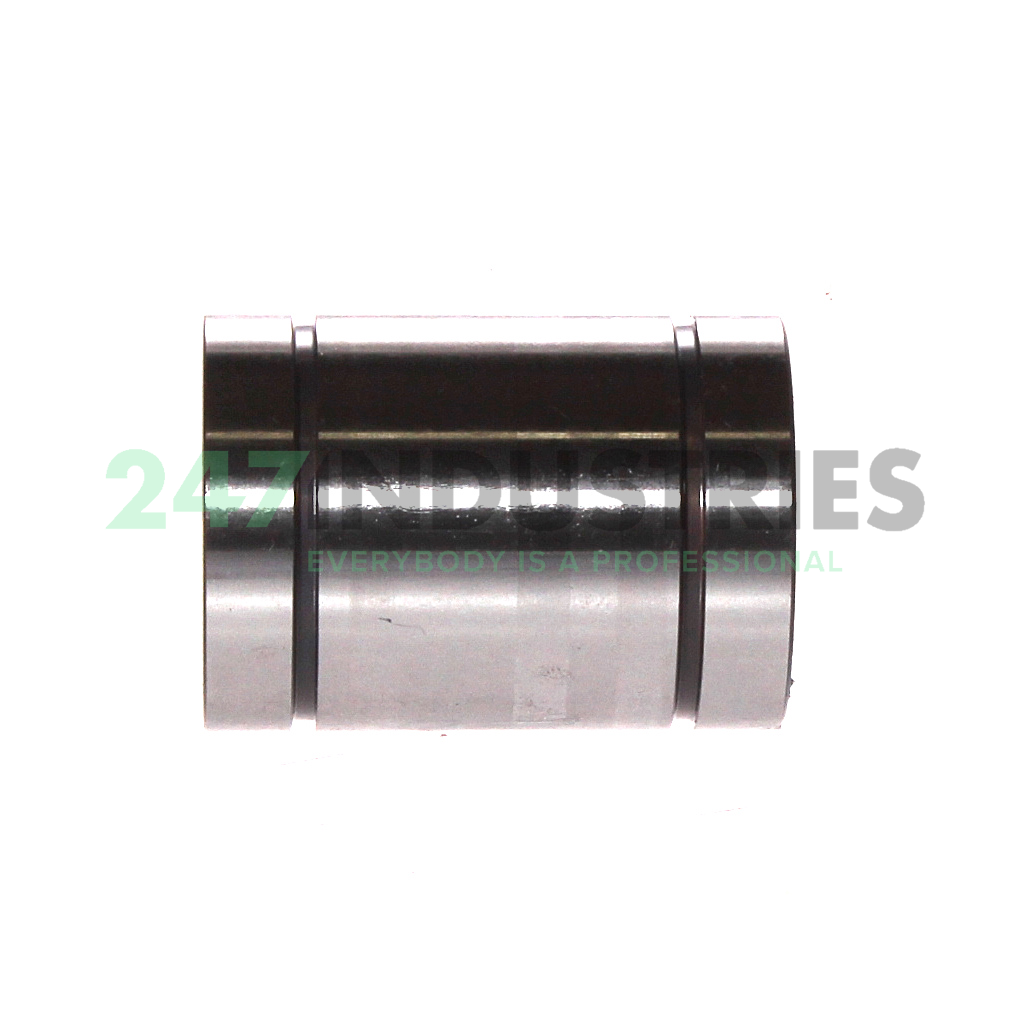

The KB16-P INA is a ball bushing or linear ball bearing from INA's machined range. These ball bushings are particularly durable and they have a high running accuracy. The balls run with great precision thanks to a special spring washer. The result is low and even displacement resistance, also under severe operating conditions and regardless of the installed position.

The closed design makes this bearing suitable for use on unsupported shafts. The outer ring accommodates a plastic cage and balls. When the ball bushing is in motion, the rolling elements follow a trajectory returning through openings in the outer ring.

Read more Show less
Help with this product

Downloads and links

Similar to: KB16-P INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 16
  2. Outer (D) MM 26
  3. Width (B) MM 36
  4. Inner (d) Inch 0.6299
  5. Outer (D) Inch 1.0236
  6. Width (B) Inch 1.4173

Suffix description

  1. P Lip Seal On One Side Of The Bearing

Technical details

  1. Availability 0 pcs
  2. Brand INA
  3. Item number KB16-P INA
  4. Also known as 0014573060000
    KB1636P
    LBCR16-LS
  5. EAN 4012802047059
  6. Category Linear Ball Bearing

Weight and Dimensions

  1. Weight (kg) 0.0475

Product Properties

  1. Seal L - LS-seal at One Side

Data from Schaeffler (medias)

  1. ECLASS number 23-30-03-01
  2. ECLASS2 number 23-30-03-01

Downloads and links

  1. Link to manufacturer Link to manufacturer
