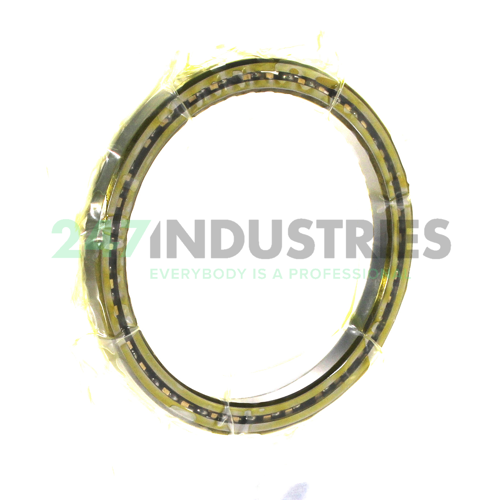

KB030CP0 Kaydon

All dimensions

1. Inner (d) MM 76,2
2. Outer (D) MM 92,08
3. Width (B) MM 7,94
4. Inner (d) Inch 3
5. Outer (D) Inch 3.625
6. Width (B) Inch 0.3125

Suffix description

1. C Radial Contact
2. P Standard Formed Ring “Snap-Over” Type (Material—Brass Or Non-Metallic Composite)
3. 0 KAYDON Precision Class 1 Per ABEC 1F

Technical details

1. Availability 1 pc
2. Brand Kaydon
3. Item number KB030CP0 Kaydon
4. Also known as CSCB030
   FPCB300
   KB030CPO
   L10RA300T
   NBC7607

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.095

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision ABEC.1 Tolerances
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
