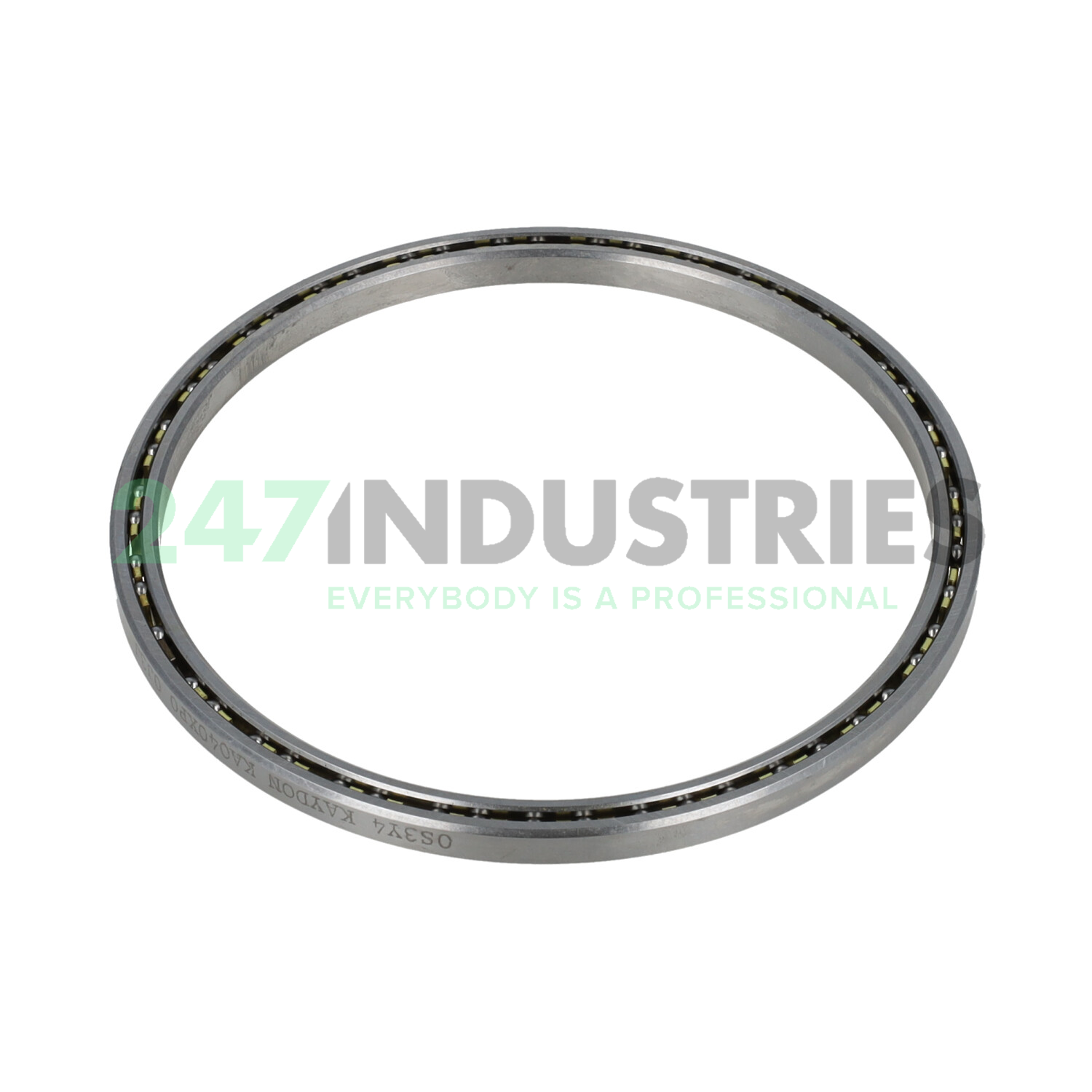

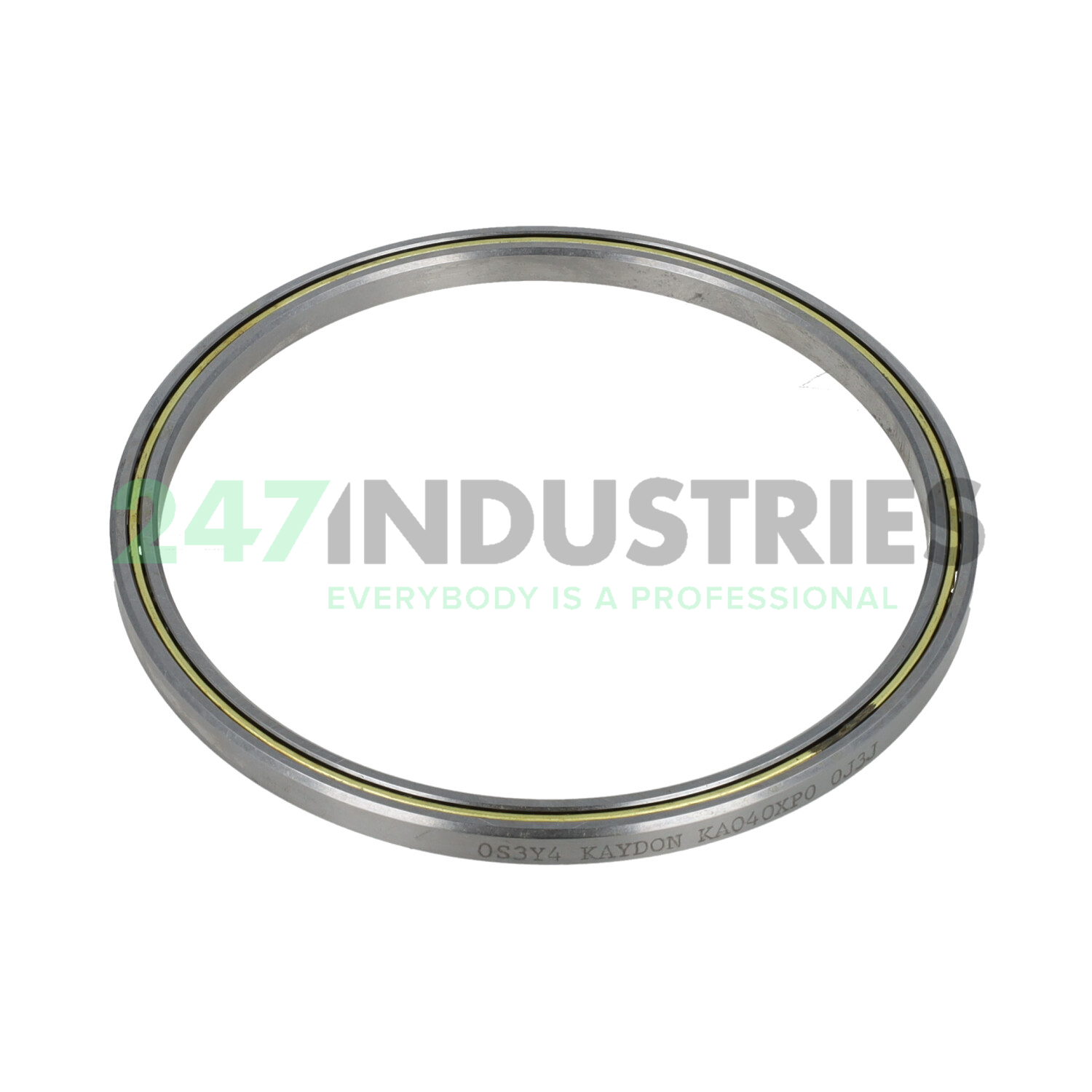

KA040XP0 Kaydon

All dimensions

1. Inner (d) MM 101,6
2. Outer (D) MM 114,3
3. Width (B) MM 6,35
4. Inner (d) Inch 4
5. Outer (D) Inch 4.5
6. Width (B) Inch 0.25

Suffix description

1. X Four-Point Contact
2. P Standard Formed Ring “Snap-Over” Type (Material—Brass Or Non-Metallic Composite)
3. 0 KAYDON Precision Class 1 Per ABEC 1F

Technical details

1. Availability 1 pc
2. Brand Kaydon
3. Item number KA040XP0 Kaydon
4. Also known as KA040XPO
   L18QA400T

5. Category Four Point Contact Ball Bearing

Weight and Dimensions

1. Weight (kg) 0.077

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. External Modification No External Modification
4. Radial Internal Play Cn Normal Internal Play
5. Precision Standard Precision
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Standard
