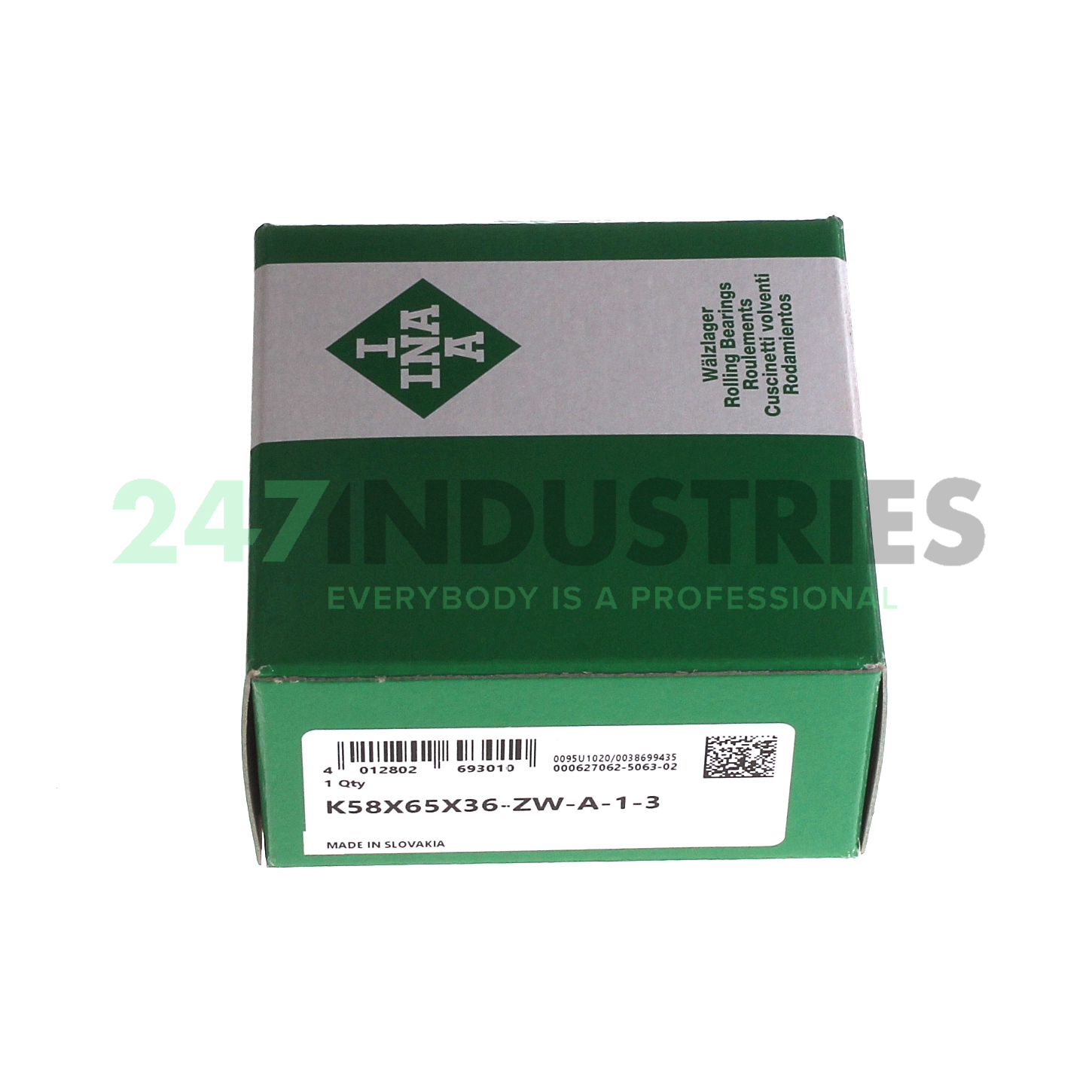

K58X65X36-ZW-A/-1-3 INA

All dimensions

1. Inner (d) MM 58
2. Outer (D) MM 65
3. Width (B) MM 36
4. Inner (d) Inch 2.2835
5. Outer (D) Inch 2.5591
6. Width (B) Inch 1.4173

Suffix description

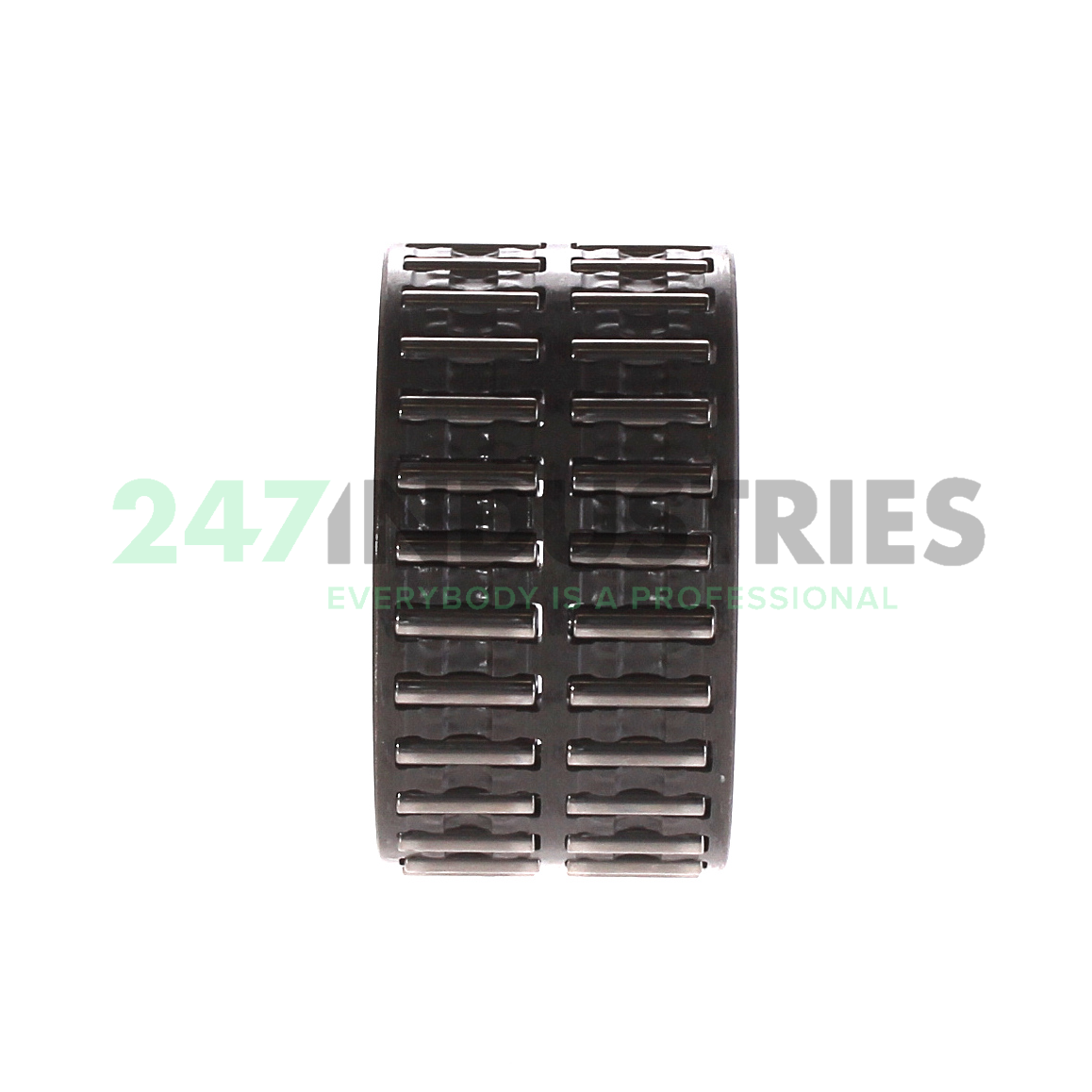

1. ZW Double Row Needle Roller And Cage Assembly
2. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
3. /-1-3 Micron - Needle Sort

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number K58X65X36-ZW-A/-1-3 INA
4. Also known as K58X65X36-ZW-A

5. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.127

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. ECLASS number 23-05-09-04
2. ECLASS2 number 23-05-09-04

Downloads and links

1. Link to Manufacturer Link to Manufacturer
