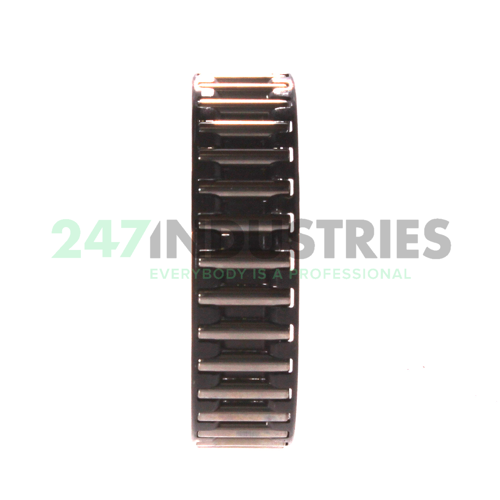

K58X65X18-A/-1-3 INA

All dimensions

1. Inner (d) MM 58
2. Outer (D) MM 65
3. Width (B) MM 18
4. Inner (d) Inch 2.2835
5. Outer (D) Inch 2.5591
6. Width (B) Inch 0.7087

Suffix description

1. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
2. /-1-3 Micron - Needle Sort

Technical details

1. Availability 29 pcs
2. Brand INA
3. Item number K58X65X18-A/-1-3 INA
4. Also known as 0000366680062

5. EAN 4012802698008
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.065

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. ECLASS number 23-05-09-04
2. ECLASS2 number 23-05-09-04
