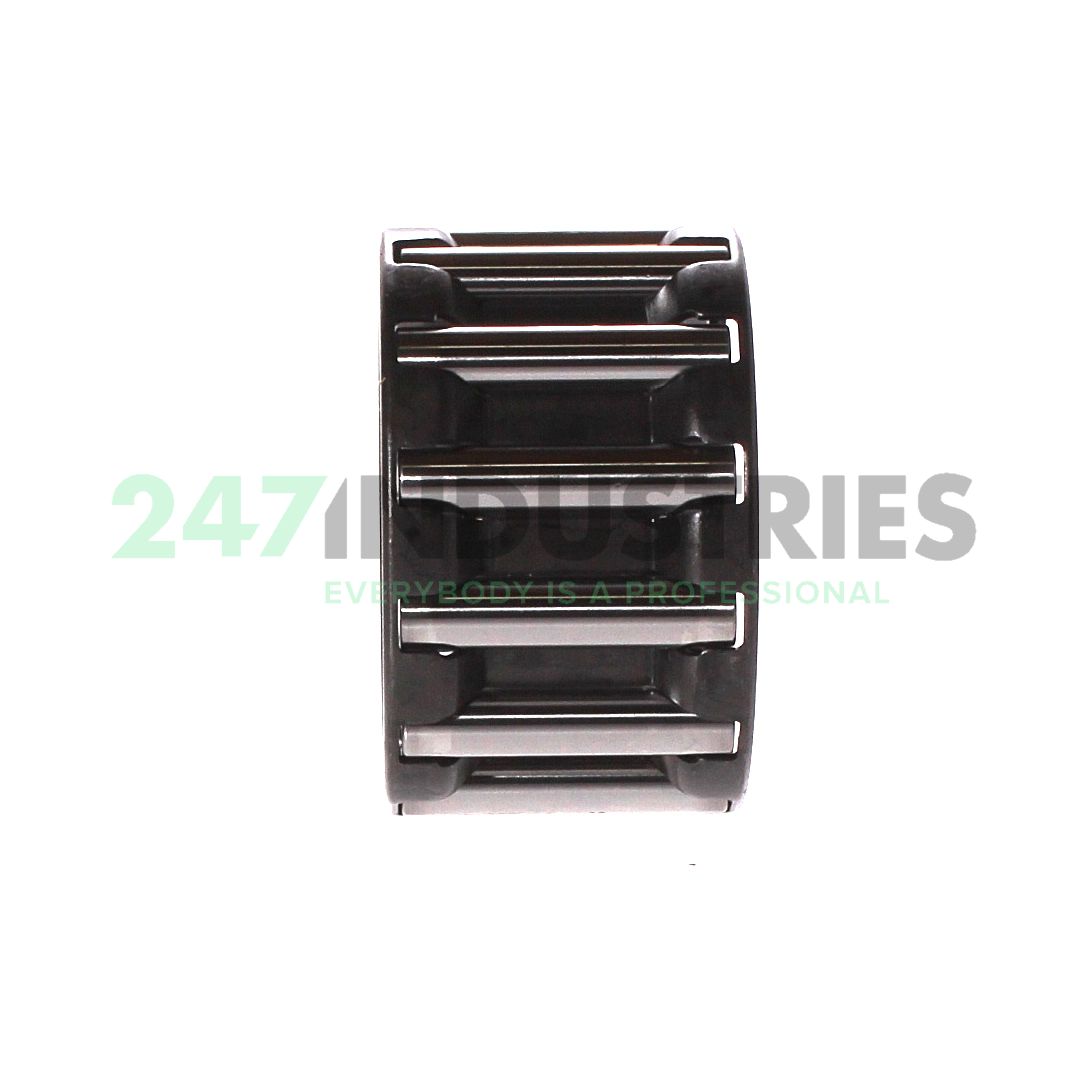

K45X59X36/0-6 INA

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 59
3. Width (B) MM 36
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 2.3228
6. Width (B) Inch 1.4173
7. Outside diameter of needle roller complement (E w) mm 59
8. Width (B c) mm 36

Suffix description

1. G2 Standard Quality Class For Needles
2. /0-10 Micron - Needle Sort

Technical details

1. Availability 60 pcs
2. Brand INA
3. Item number K45X59X36/0-6 INA
4. Also known as 0001833427063

5. EAN 4012802700770
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.186

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 109000
2. Radial Dynamic Load Rating Cr (N) 77000
3. Limiting speed (n G) 9400
4. Reference speed (n ϑr) 5400
5. ECLASS number 23-05-09-90
6. ECLASS2 number 23-05-09-90
7. Medias description Needle roller cage assembly K, single row
