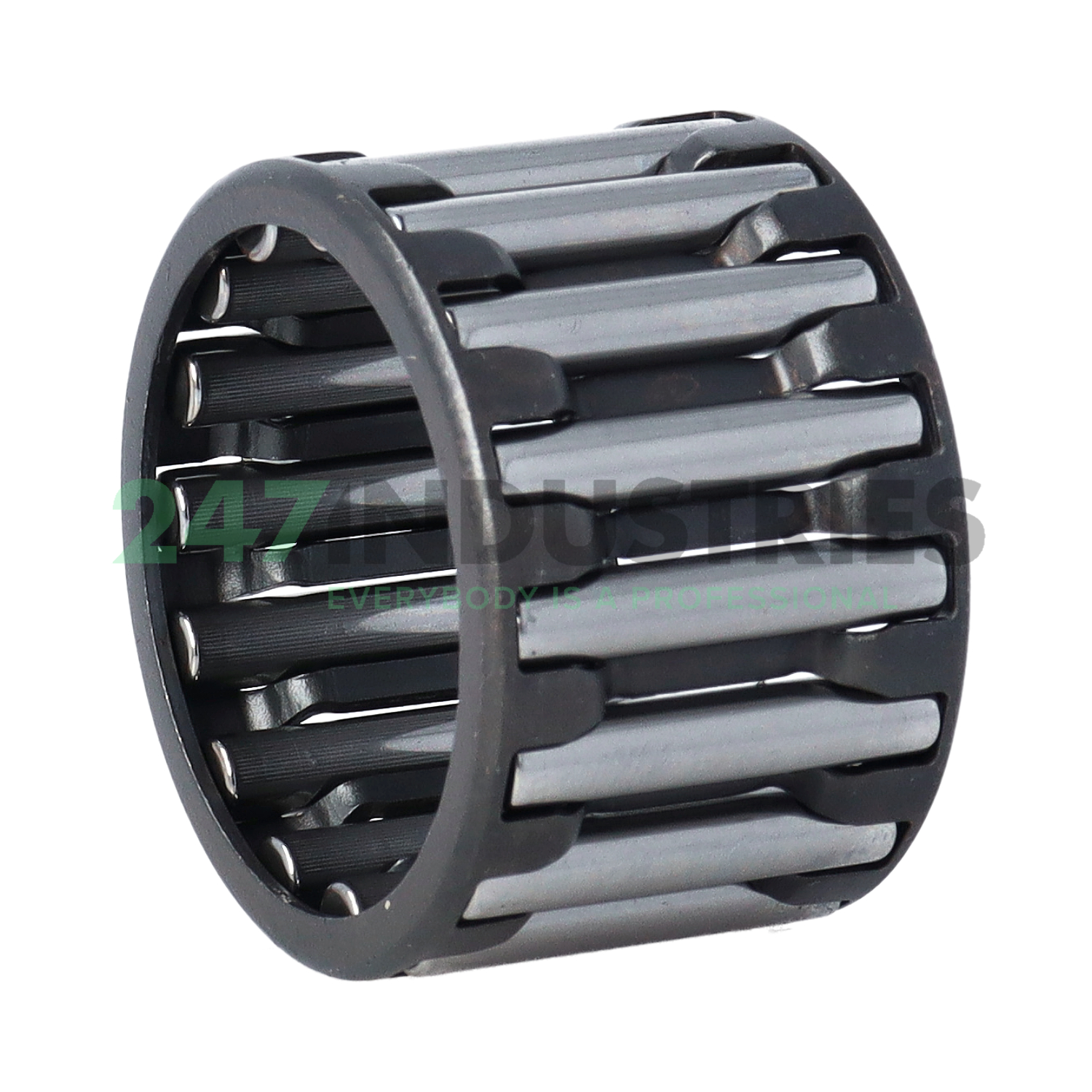

K35X45X30/0-7 INA

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 45
3. Width (B) MM 30
4. Inner (d) Inch 1.378
5. Outer (D) Inch 1.7717
6. Width (B) Inch 1.1811
7. Outside diameter of needle roller complement (E w) mm 45
8. Width (B c) mm 30

Suffix description

1. G2 Standard Quality Class For Needles
2. /0-10 Micron - Needle Sort

Technical details

1. Availability 20 pcs
2. Brand INA
3. Item number K35X45X30/0-7 INA
4. Also known as 0007181816063

5. EAN 4012802722994
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.08

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 79000
2. Radial Dynamic Load Rating Cr (N) 53000
3. Limiting speed (n G) 12300
4. Reference speed (n ϑr) 6700
5. ECLASS number 23-05-09-04
6. ECLASS2 number 23-05-09-04
7. Medias description Needle roller cage assembly K, single row
