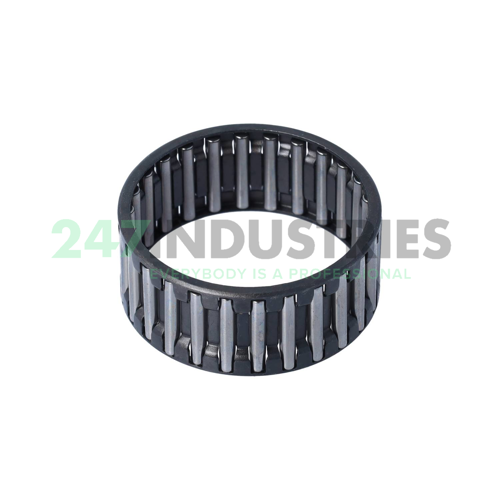

K35X40X17-A/0-7 INA

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 40
3. Width (B) MM 17
4. Inner (d) Inch 1.378
5. Outer (D) Inch 1.5748
6. Width (B) Inch 0.6693
7. Outside diameter of needle roller complement (E w) mm 40
8. Width (B c) mm 17

Suffix description

1. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
2. /0-7 Micron - Needle Sort

Technical details

1. Availability 49 pcs
2. Brand INA
3. Item number K35X40X17-A/0-7 INA
4. Also known as 0000843106063

5. EAN 4012802367737
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.025

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 38500
2. Radial Dynamic Load Rating Cr (N) 20800
3. Limiting speed (n G) 13100
4. Reference speed (n ϑr) 7400
5. ECLASS number 23-05-09-04
6. ECLASS2 number 23-05-09-04
7. Medias description Needle roller cage assembly K, single row
