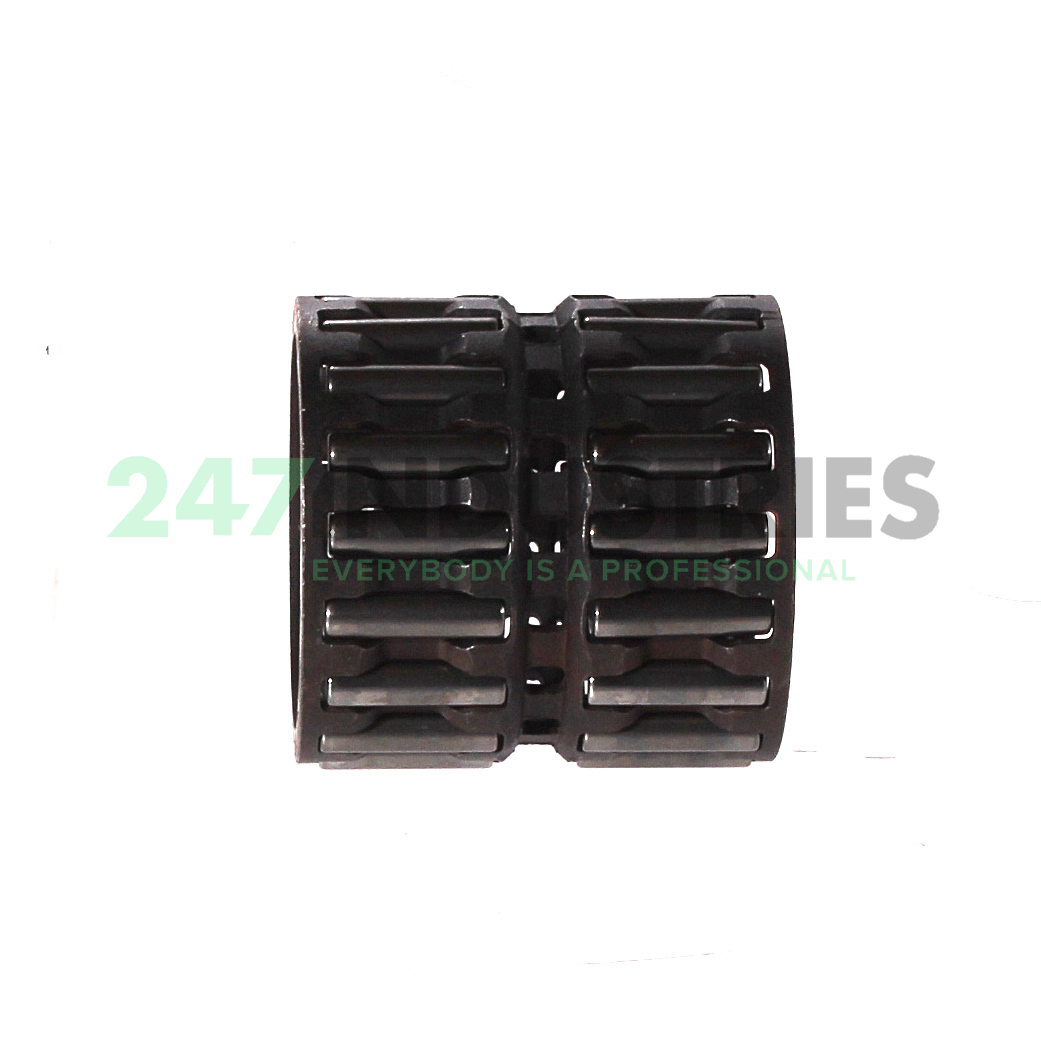

K24X30X31-ZW-A-1-3 INA

All dimensions

1. Inner (d) MM 24
2. Outer (D) MM 30
3. Width (B) MM 31
4. Inner (d) Inch 0.9449
5. Outer (D) Inch 1.1811
6. Width (B) Inch 1.2205

Suffix description

1. ZW Double Row Needle Roller And Cage Assembly
2. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
3. -1-3 Micron - Needle Sort

Technical details

1. Availability 1 pc
2. Brand INA
3. Item number K24X30X31-ZW-A-1-3 INA
4. Also known as K24X30X31-ZW-A/0-7

5. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.032

Product Properties

1. Seal No Seal
