JLM506810 KFB Clarfeld

Cup for single-row tapered roller bearing

Stock
not in stock
Brand KFB Clarfeld
Article number JLM506810 KFB Clarfeld
Outside diameter 90mm
Width 18,5mm
Product description

The JLM506810 KFB Clarfeld is a cup for a single-row tapered roller bearing. This cup is an outer ring that can be combined with a separately available cone (the cage with rolling elements), to form a complete tapered roller bearing. The outer and inner rings have conical raceways and the roller elements are conical as well. This design enables tapered roller bearings to absorb radial and axial forces (in one direction). The greater the angle between the outer ring and the centre line of the bearing, the greater the axial load capacity.

The geometrical qualities of tapered roller bearings prevent sliding movements between the raceways and rollers. This will keep component wear down to a minimum. However, a minimum load is required for proper bearing operation. Because cone and cup are separable, they can easily be mounted. In addition, end play (axial clearance) or preload can be adjusted by moving the components axially during assembly.

For reliable operation of your bearing, it is best to replace cone and cup at the same time. We recommend taking components from the same manufacturer. This prevents bearing problems caused by different internal bearing profiles, differences in material, and in tolerances. Always combine the JLM506810 KFB Clarfeld with a matching cone from the same manufacturer.

Read more Show less
Help with this product

Similar to: JLM506810 KFB Clarfeld

Product
Dimensions/Properties
Stock
Price ex VAT

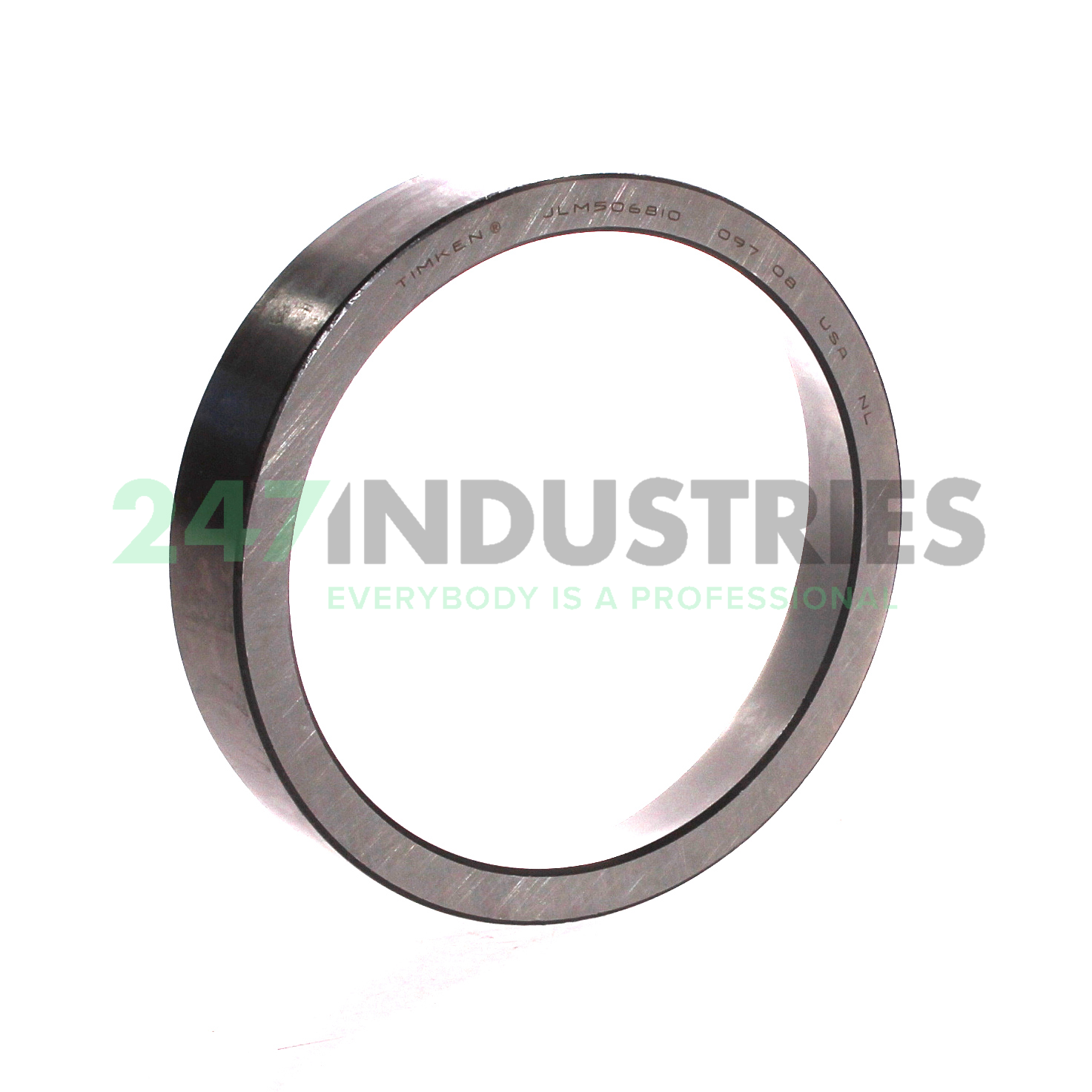

JLM506810 Timken
JLM506810 Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)
25,19 ex VAT
  • Inside diameter 0mm
  • Outside diameter 90mm
  • Width 18,5mm
JLM506810 Timken
Guaranteed same day shipment on orders placed before 18:00h (CET)

19 pcs
25,19 ex VAT
JLM506810 SKF
JLM506810 SKF
Guaranteed same day shipment on orders placed before 18:00h (CET)
18,27 ex VAT
  • Inside diameter 0mm
  • Outside diameter 90mm
  • Width 18,5mm
JLM506810 SKF
Guaranteed same day shipment on orders placed before 18:00h (CET)

5 pcs
18,27 ex VAT
4T-JLM506810 NTN
4T-JLM506810 NTN
Guaranteed same day shipment on orders placed before 18:00h (CET)
11,80 ex VAT
  • Inside diameter 0mm
  • Outside diameter 90mm
  • Width 18,5mm
4T-JLM506810 NTN
Guaranteed same day shipment on orders placed before 18:00h (CET)

2 pcs
11,80 ex VAT
JLM506810 BTC
JLM506810 BTC
Guaranteed same day shipment on orders placed before 18:00h (CET)
9,10 ex VAT
  • Inside diameter 0mm
  • Outside diameter 90,00mm
  • Width 18,50mm
JLM506810 BTC
Guaranteed same day shipment on orders placed before 18:00h (CET)

17 pcs
9,10 ex VAT
KJLM506810 ZWZ
KJLM506810 ZWZ
Guaranteed same day shipment on orders placed before 18:00h (CET)
4,78 ex VAT
  • Inside diameter 0mm
  • Outside diameter 90,00mm
  • Width 18,50mm
KJLM506810 ZWZ
Guaranteed same day shipment on orders placed before 18:00h (CET)

2 pcs
4,78 ex VAT

Product specifications

All dimensions

  1. Outer (D) MM 90
  2. Width (B) MM 18,5
  3. Outer (D) Inch 3.5433
  4. Width (B) Inch 0.7283

Technical details

  1. Availability 0 pcs
  2. Brand KFB Clarfeld
  3. Item number JLM506810 KFB Clarfeld
  4. Category Cup for Tapered Roller Bearings Single Row

Weight and Dimensions

  1. Weight (kg) 0.2
