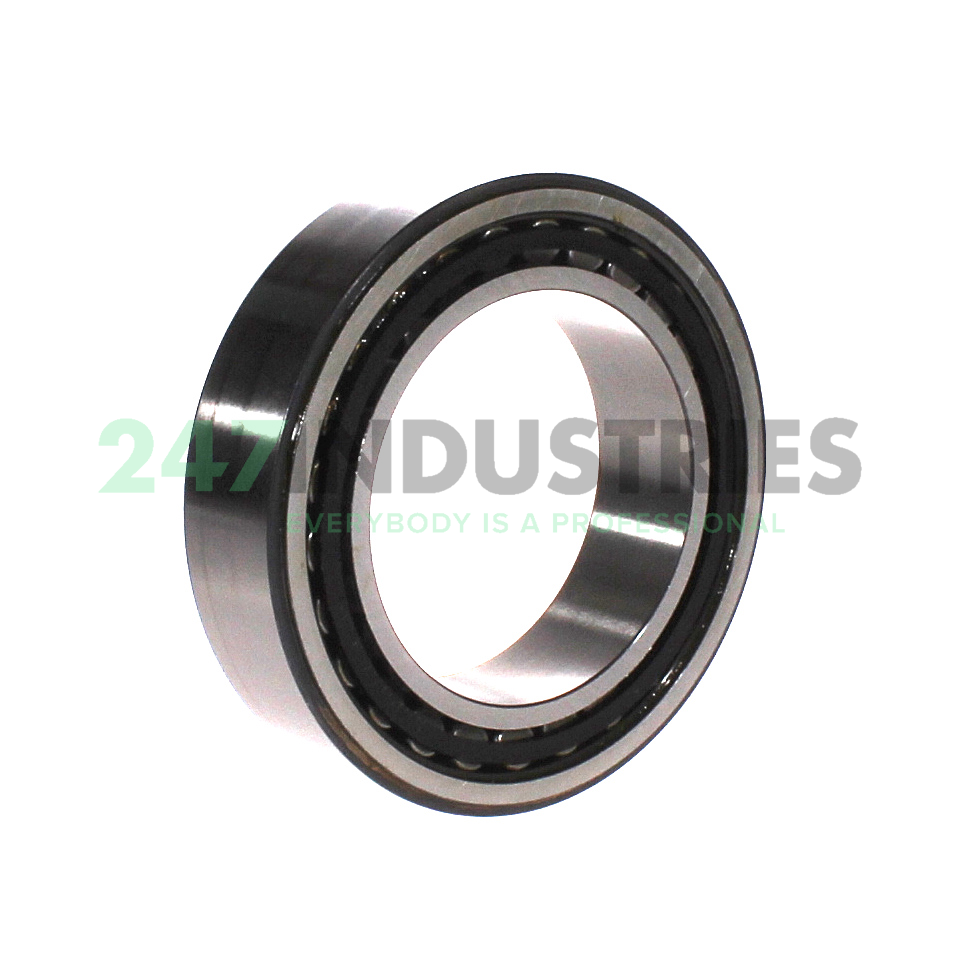

JK0S080-A FAG

All dimensions

1. Inner (d) MM 80
2. Outer (D) MM 125
3. Width (B) MM 30
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 4.9213
6. Width (B) Inch 1.1811
7. Width inner ring (B) mm 30

Suffix description

1. A Internal Design Modification

Technical details

1. Availability 23 pcs on Wed 9 Sep
2. Brand FAG
3. Item number JK0S080-A FAG
4. Also known as 0191861420000
   0956572150000
   BT1B332839
   JKOS80A

5. EAN 4064327117274
6. Category Tapered Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1.33

Product Properties

1. Precision Standard Precision

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 211000
2. Radial Dynamic Load Rating Cr (N) 137000
3. Limiting speed (n G) 2550
4. ECLASS number 23-05-09-10
5. ECLASS2 number 23-05-09-10
6. Medias description Tapered roller bearings JK0S, integral tapered roller bearings, lip seal on one side, diameter series 0
