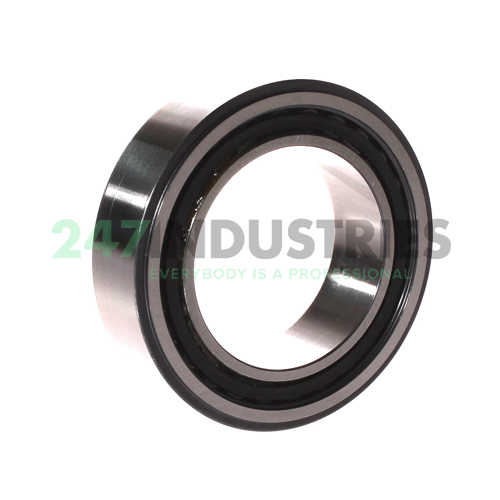

JK0S060 FAG

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 95
3. Width (B) MM 26
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 3.7402
6. Width (B) Inch 1.0236
7. Width inner ring (B) mm 26

Suffix description

1. >A

Technical details

1. Availability 136 pcs
2. Brand FAG
3. Item number JK0S060 FAG
4. Also known as 0190040870000
   BT1B328041
   JKOS060

5. EAN 4012801047876
6. Category Tapered Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.635

Product Properties

1. Precision Standard Precision

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 123000
2. Radial Dynamic Load Rating Cr (N) 82000
3. Limiting speed (n G) 3350
4. ECLASS number 23-05-09-10
5. ECLASS2 number 23-05-09-10
6. Medias description Tapered roller bearings JK0S, integral tapered roller bearings, lip seal on one side, diameter series 0
