JAM14 Asahi

Rod end

Stock
441 pcs in stock and ready for shipment
Brand Asahi
Article number JAM14 Asahi
Inside diameter 14mm
Outside diameter 37mm
Width 19mm
Product description

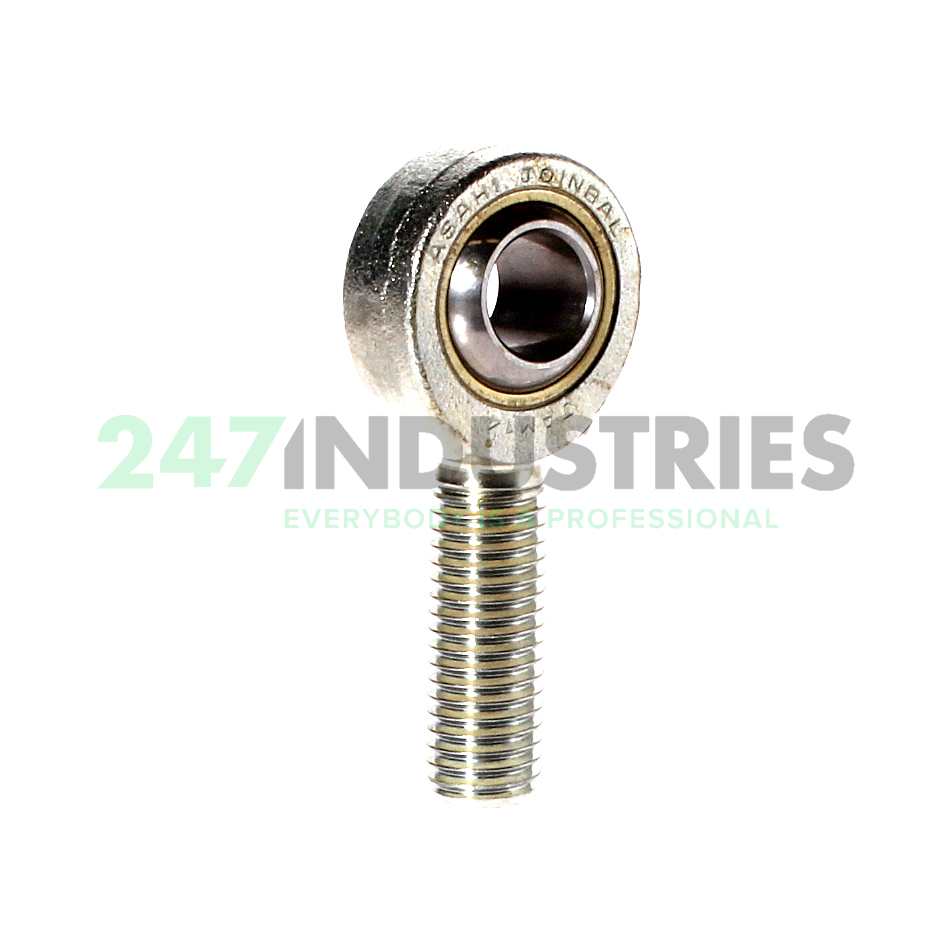

The JAM14 Asahi is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The JAM14 Asahi has a spherical plain bearing with a steel-on-bronze sliding contact. The steel inner ring contacts the bronze surface of the outer ring. The steel-on-bronze sliding contact makes this bearing highly wear-resistant, providing low friction. However, the load capacity is slightly lower compared to spherical plain bearings with steel-on-steel sliding contacts. This bearing needs regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.

Help with this product

Similar to: JAM14 Asahi

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 14
  2. Outer (D) MM 37
  3. Width (B) MM 19
  4. Inner (d) Inch 0.5512
  5. Outer (D) Inch 1.4567
  6. Width (B) Inch 0.748

Technical details

  1. Availability 441 pcs
  2. Brand Asahi
  3. Item number JAM14 Asahi
  4. Also known as GAKFR14PB
    SAKAC14M
  5. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.13

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on Bronze
