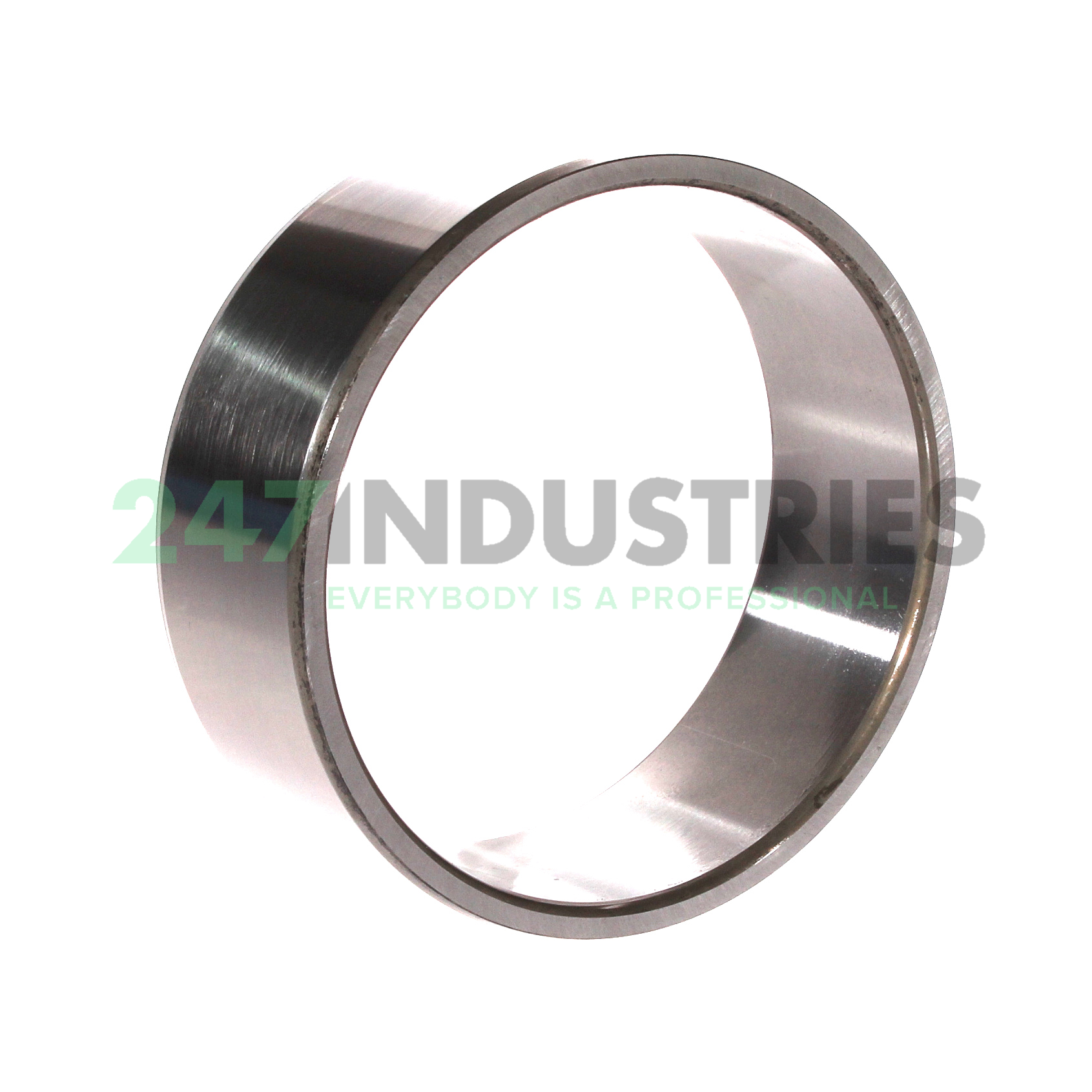

IR90X100X36-XL INA

All dimensions

1. Inner (d) MM 90,00
2. Outer (D) MM 100,00
3. Width (B) MM 36,00
4. Inner (d) Inch 3.5433
5. Outer (D) Inch 3.9370
6. Width (B) Inch 1.4173
7. Raceway diameter inner ring (F) mm 100,00
8. Width (b) mm 36,00

Suffix description

1. XL X-Life

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number IR90X100X36-XL INA
4. Also known as 0000235230000
   IR90X100X36

5. EAN 4012802044980
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.406

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. ECLASS number 23-05-91-90
2. ECLASS2 number 23-05-91-90
3. Medias description Inner ring IR..-XL, cylindrical

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
