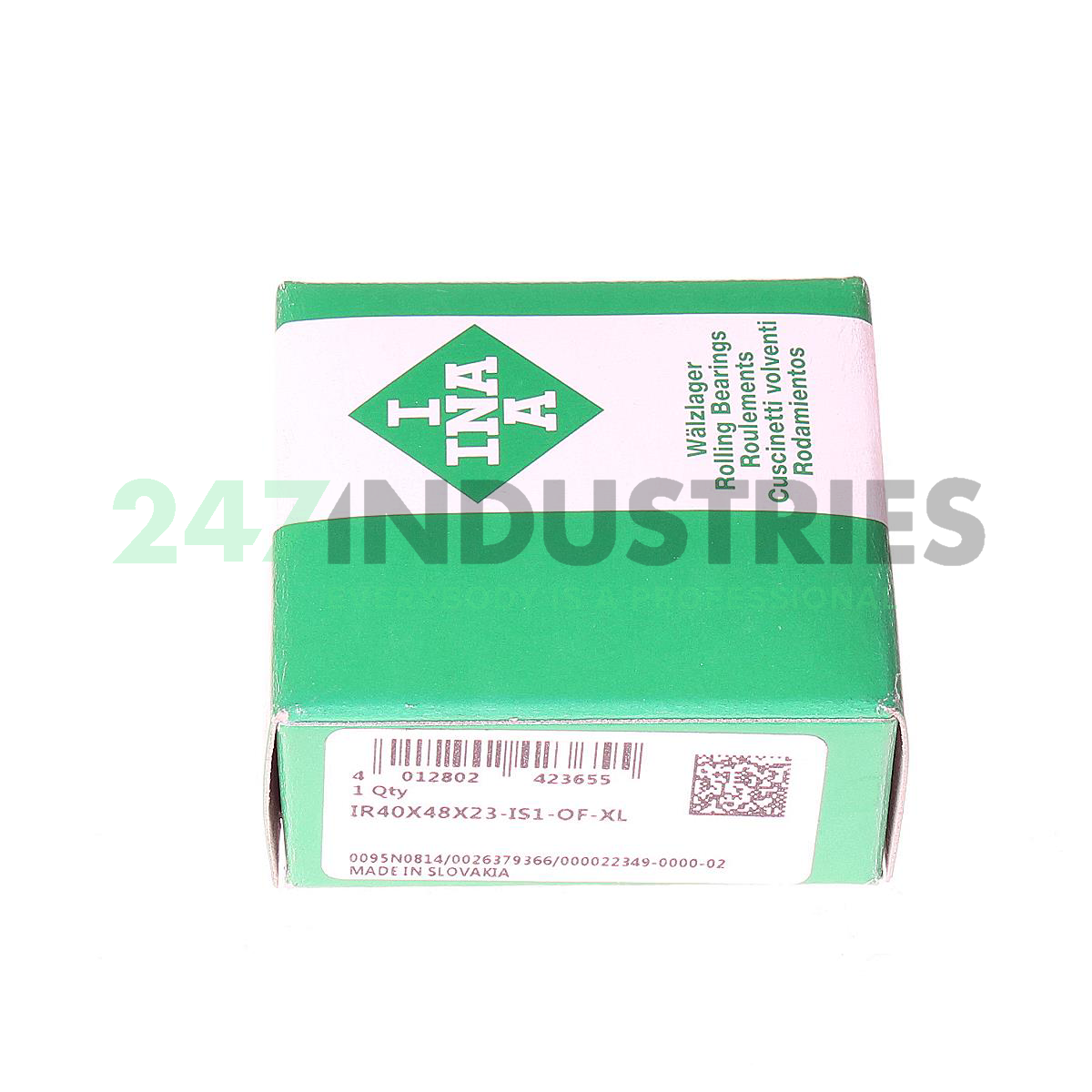

IR40X48X23-IS1-OF-XL INA

All dimensions

1. Inner (d) MM 40,00
2. Outer (D) MM 48,00
3. Width (B) MM 23,00
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 1.8898
6. Width (B) Inch 0.9055
7. Raceway diameter inner ring (F) mm 48,00
8. Width (b) mm 23,00

Suffix description

1. IS1 One Lubrication Hole In The Inner Ring
2. OF Without Chamfer On The Inner Ring Ends
3. XL X-Life

Technical details

1. Availability 24 pcs
2. Brand INA
3. Item number IR40X48X23-IS1-OF-XL INA
4. Also known as 0000223490000
   IR40X48X23-IS1-OF

5. EAN 4012802423655
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.0973

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. ECLASS number 23-05-91-90
2. ECLASS2 number 23-05-91-90
