IR12X16X14-IS1-OF-XL INA

All dimensions

1. Inner (d) MM 12
2. Outer (D) MM 16
3. Width (B) MM 14
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 0.6299
6. Width (B) Inch 0.5512
7. Raceway diameter inner ring (F) mm 16
8. Width (b) mm 14

Suffix description

1. IS1 One Lubrication Hole In The Inner Ring
2. OF Without Chamfer On The Inner Ring Ends
3. XL X-Life

Technical details

1. Availability 294 pcs
2. Brand INA
3. Item number IR12X16X14-IS1-OF-XL INA
4. Also known as 0000206480000
   IR12X16X14-IS1-OF

5. EAN 4012802711172
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.009

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. ECLASS number 23-05-91-90
2. ECLASS2 number 23-05-91-90

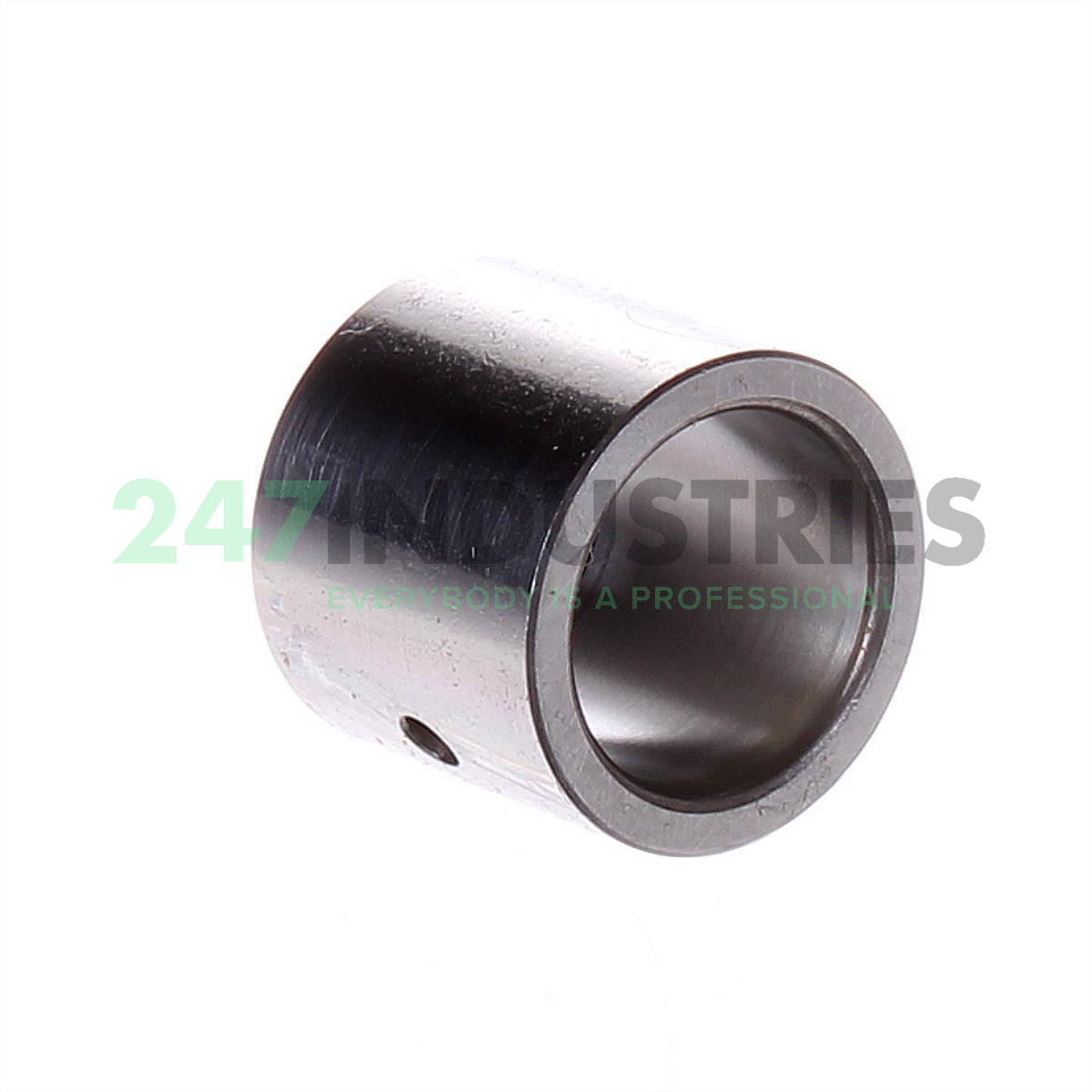

3. Medias description Inner ring IR..-IS1-OF-XL, cylindrical

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
