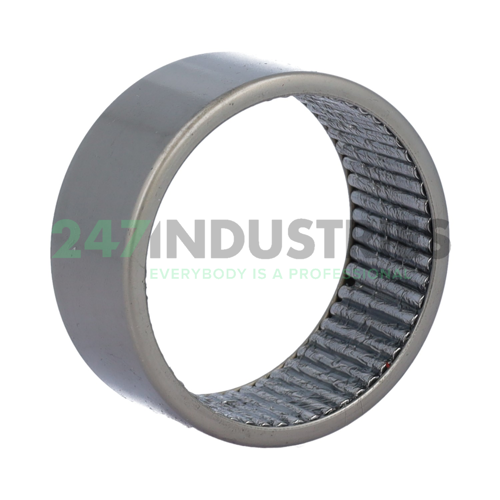

HN5025 INA

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 58
3. Width (B) MM 25
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 2.2835
6. Width (B) Inch 0.9843
7. Under roller diameter (F w) mm 50

Suffix description

1. G2 Standard Quality Class For Needles
2. /0-10 Micron - Needle Sort

Technical details

1. Availability 187 pcs
2. Brand INA
3. Item number HN5025 INA
4. Also known as 0000371330000

5. EAN 4054362398783
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.107

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 152000
2. Radial Dynamic Load Rating Cr (N) 54000
3. Limiting speed for grease lubrication (n G Grease) 2260
4. Reference speed (n ϑr) 3050
5. ECLASS number 23-05-09-05
6. ECLASS2 number 23-05-09-05
7. Medias description Drawn cup needle roller bearings with open ends HN, full complement needle roller set
