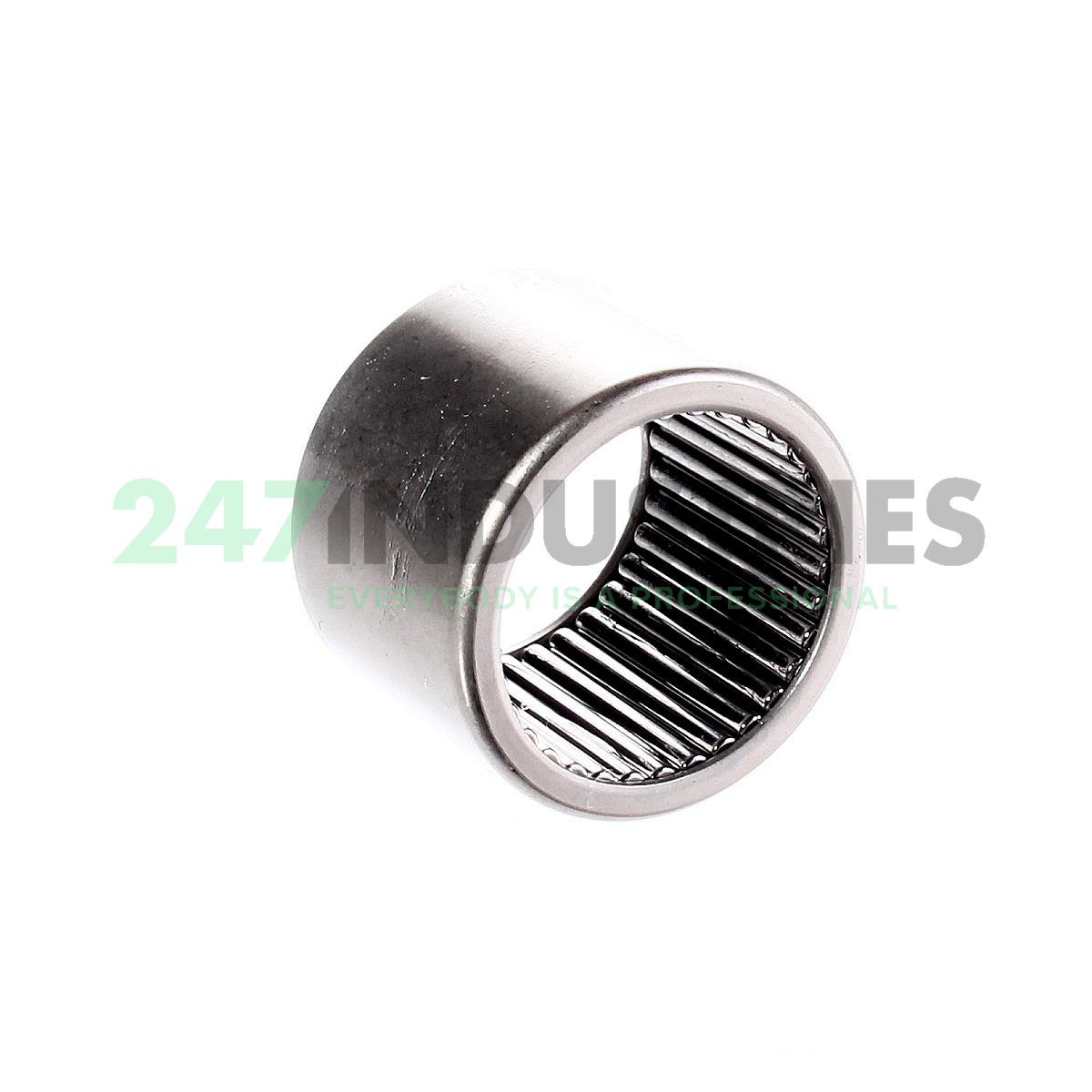

HN2020 INA

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 26
3. Width (B) MM 20
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.0236
6. Width (B) Inch 0.7874
7. Under roller diameter (F w) mm 20

Suffix description

1. G2 Standard Quality Class For Needles
2. /0-10 Micron - Needle Sort

Technical details

1. Availability 285 pcs
2. Brand INA
3. Item number HN2020 INA
4. Also known as 0000369940000

5. EAN 4054364468330
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.0295

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 48000
2. Radial Dynamic Load Rating Cr (N) 22400
3. Limiting speed for grease lubrication (n G Grease) 5400
4. Reference speed (n ϑr) 7200
5. ECLASS number 23-05-09-05
6. ECLASS2 number 23-05-09-05
7. Medias description Drawn cup needle roller bearings with open ends HN, full complement needle roller set
