HM220149/110/Q SKF

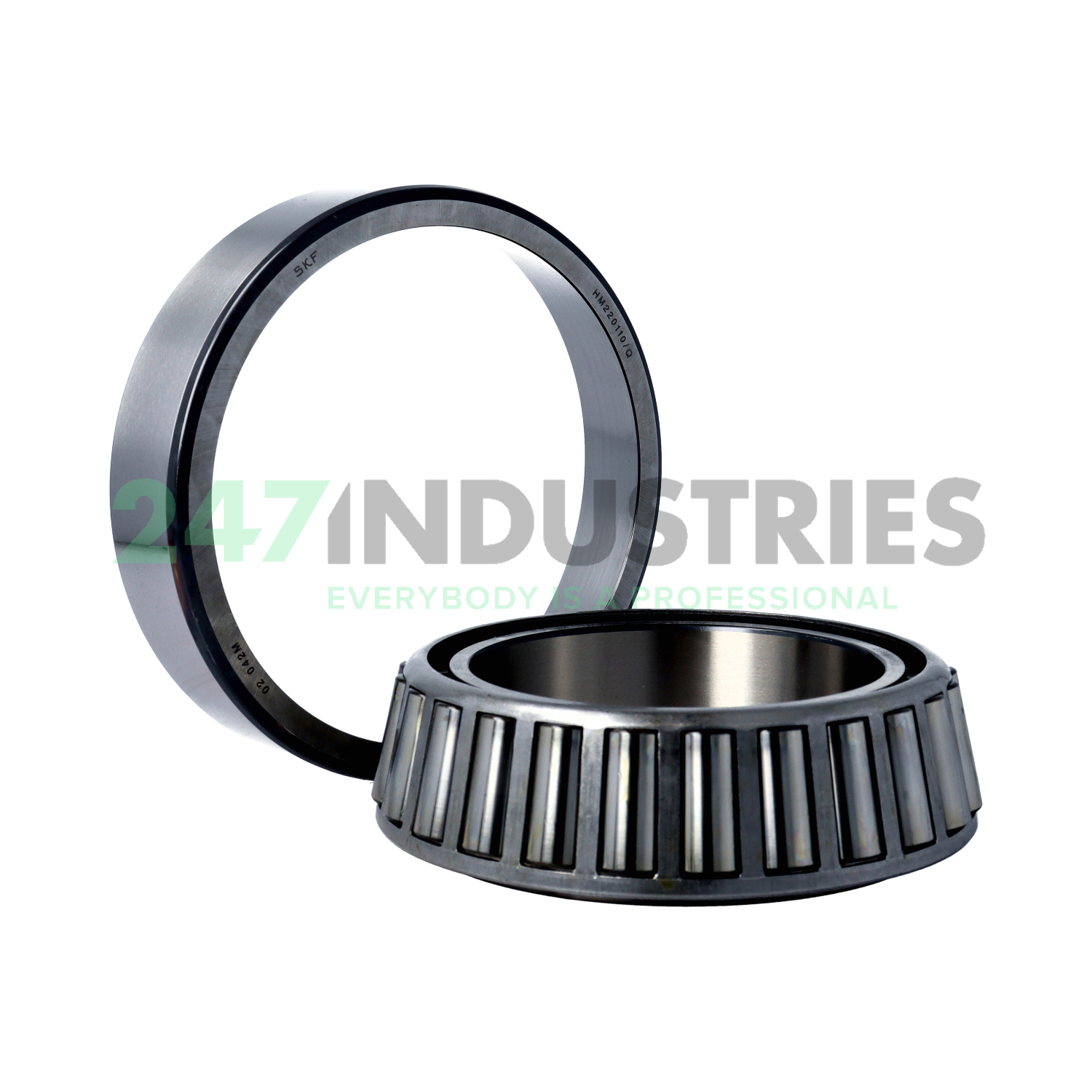

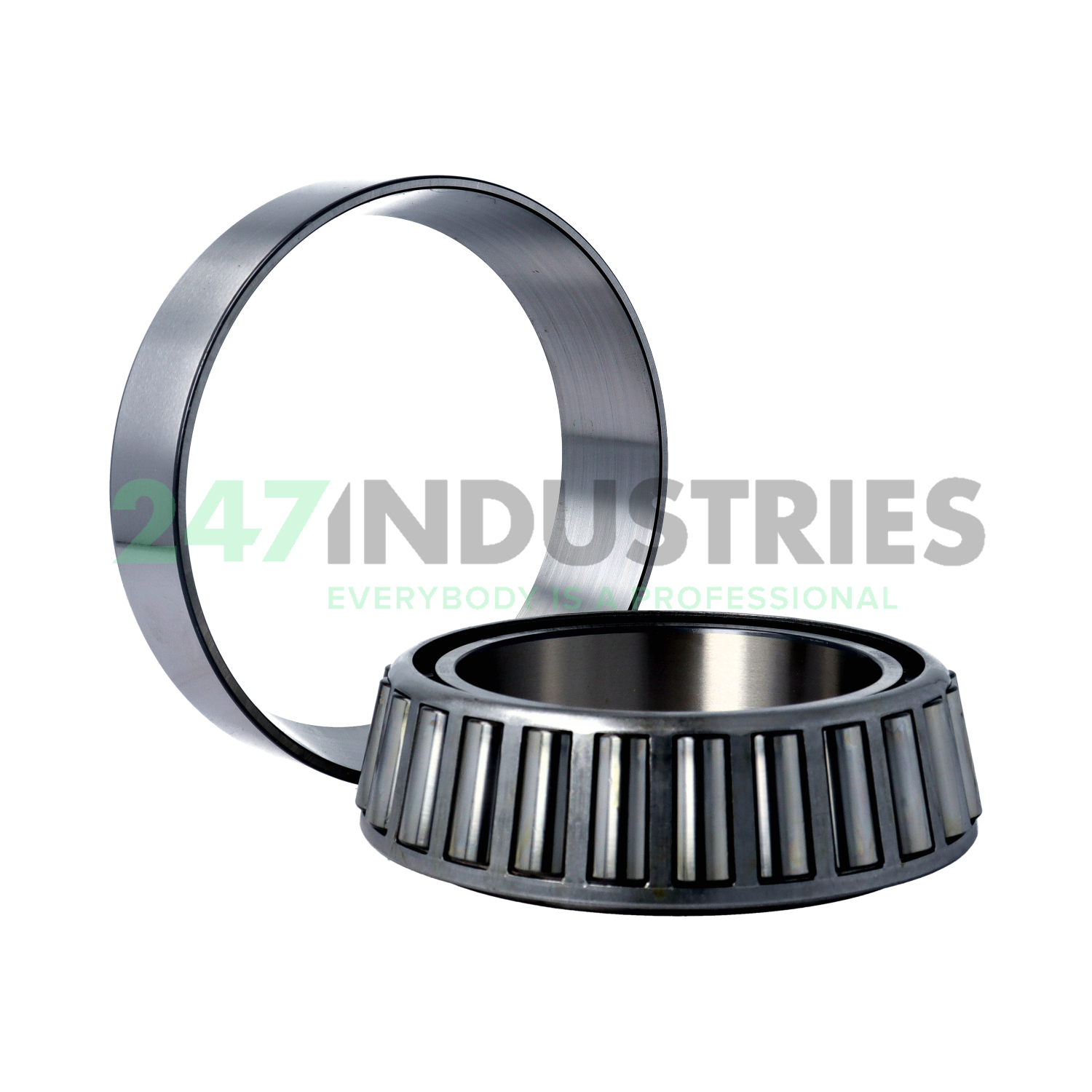

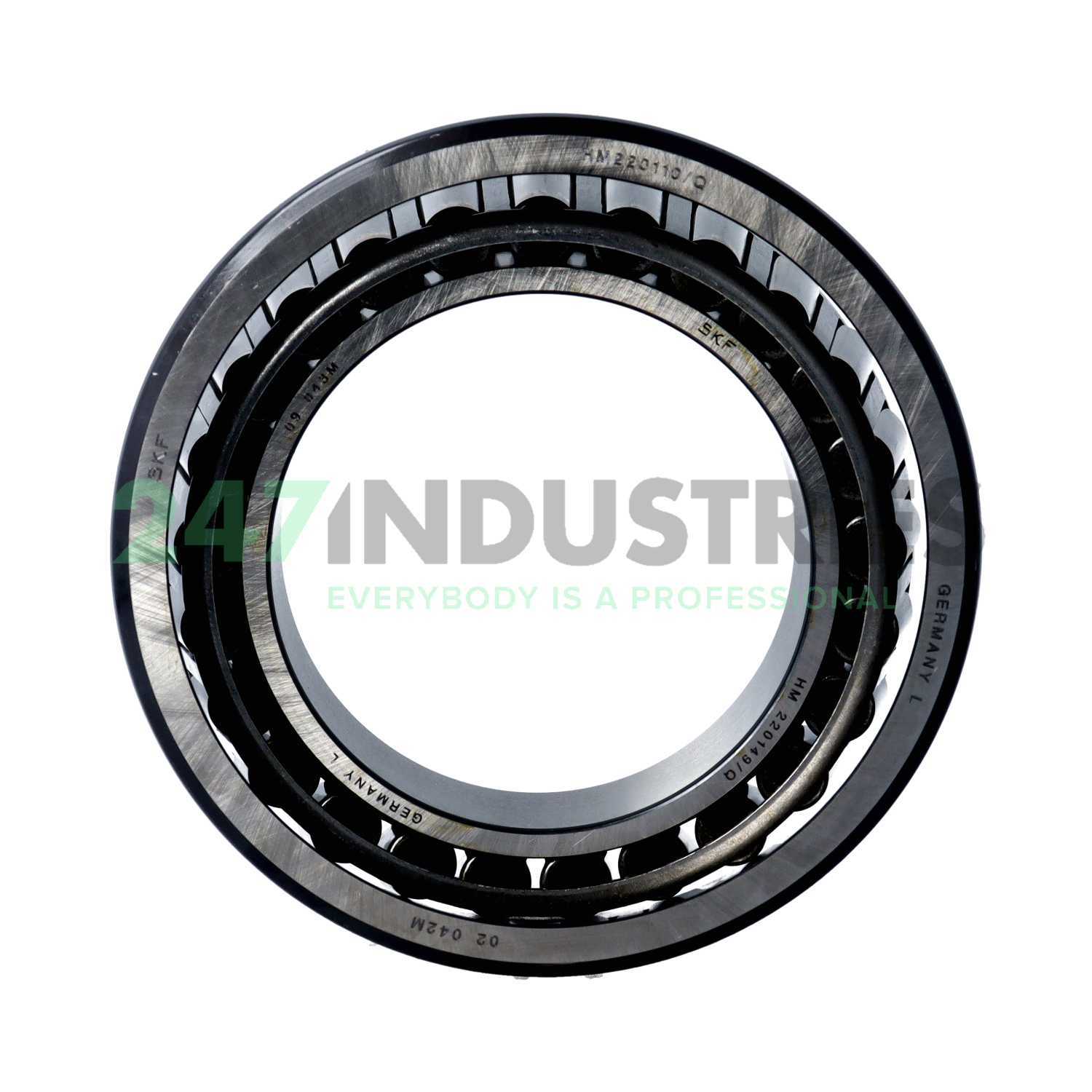

Single-row tapered roller bearing

Stock
not in stock
Brand SKF
Article number HM220149/110/Q SKF
Inside diameter 99,97mm
Outside diameter 156,97mm
Width 42mm
Product description

The HM220149/110/Q SKF is a single-row tapered roller bearing. This bearing type gets its name from the tapered rollers between the inner and outer rings. The raceways are conical. This design allows these versatile bearings to accommodate combined loads. They support high radial and axial loads (in one direction). The greater the contact angle, the greater the axial load capacity.

The HM220149/110/Q SKF is easy to (dis)assemble as it is a combination of a cup and a cone. The cone unit consists of an inner ring with cage and roller set. The cup is the outer ring. Single-row tapered roller bearings have an open design. Because of the internal construction, they must be mounted in mirror-image arrangement together with a second tapered roller bearing. Paired bearing sets can also be applied in X, O, or tandem arrangements.

Help with this product

Similar to: HM220149/110/Q SKF

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 99,97
  2. Outer (D) MM 156,97
  3. Width (B) MM 42
  4. Inner (d) Inch 3.936
  5. Outer (D) Inch 6.1801
  6. Width (B) Inch 1.6535

Suffix description

  1. Q TQ-Line Execution. (100% Interchangeable With Basic Designation)

Technical details

  1. Availability 0 pcs
  2. Brand SKF
  3. Item number HM220149/110/Q SKF
  4. Also known as BT1-0828
    HM220149/HM220110
    HM220149/HM220110/Q
    HM220149-99401
    VKHB2717MY
  5. EAN 7316570862423
  6. Category Tapered Roller Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 2.75

Product Properties

  1. Precision Standard Precision
