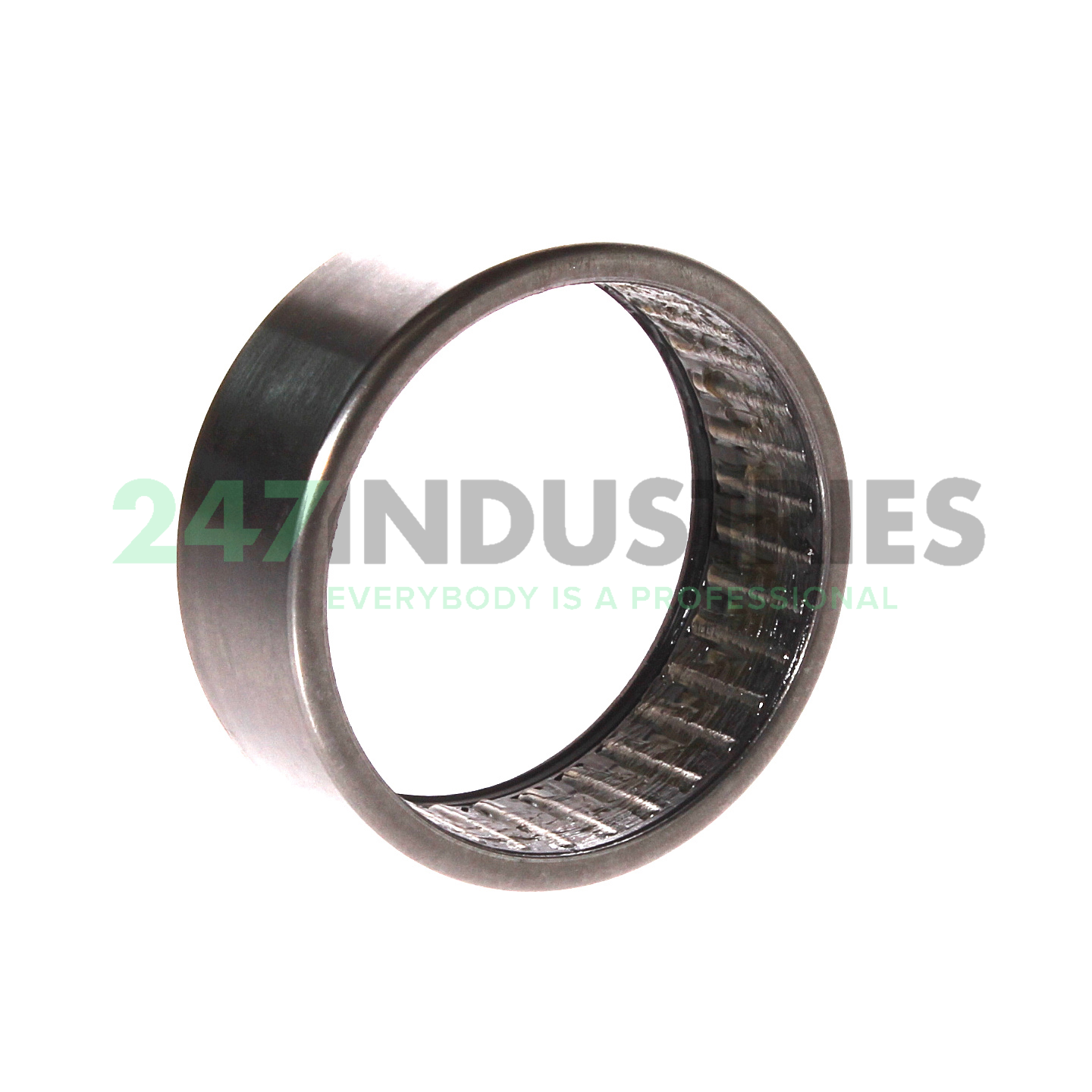

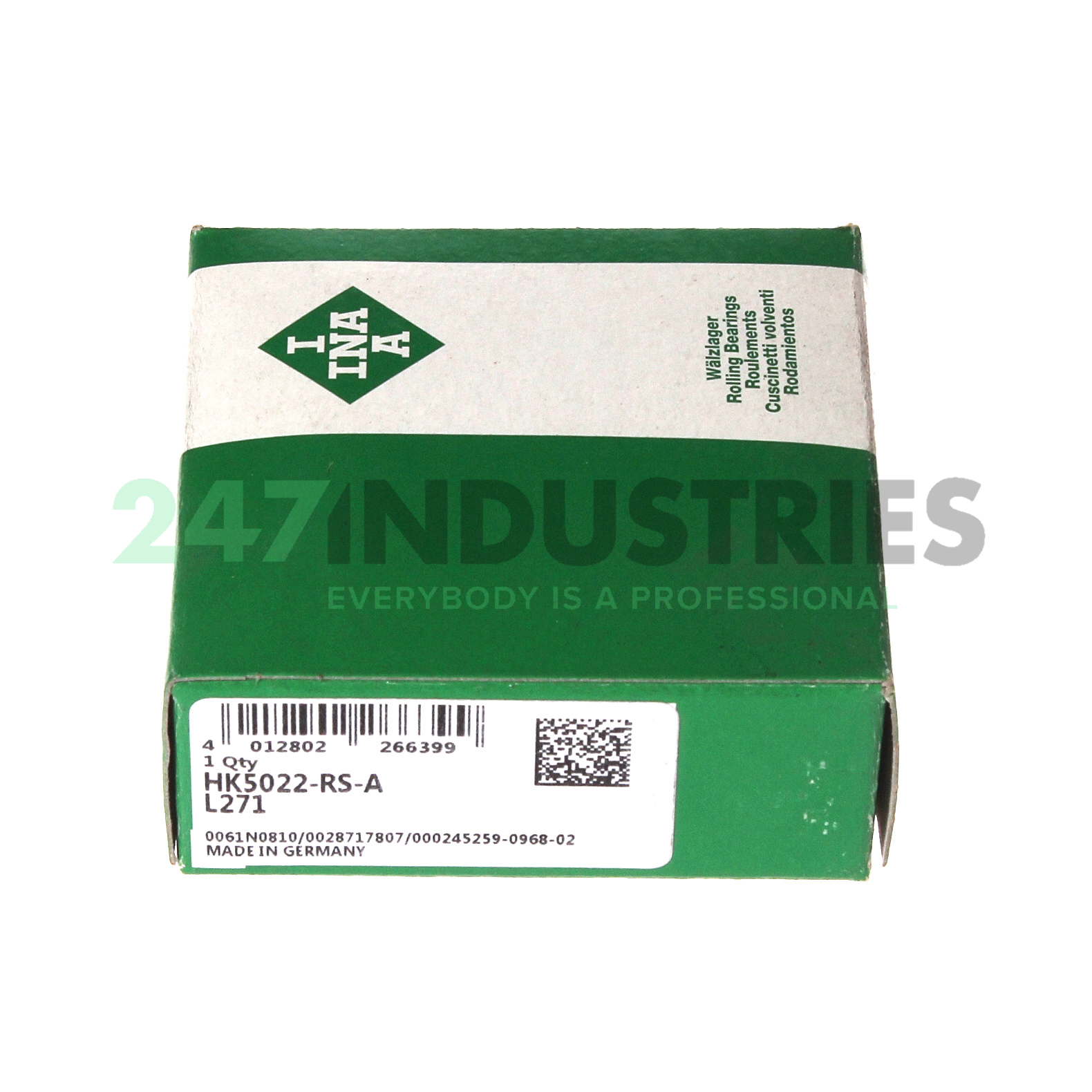

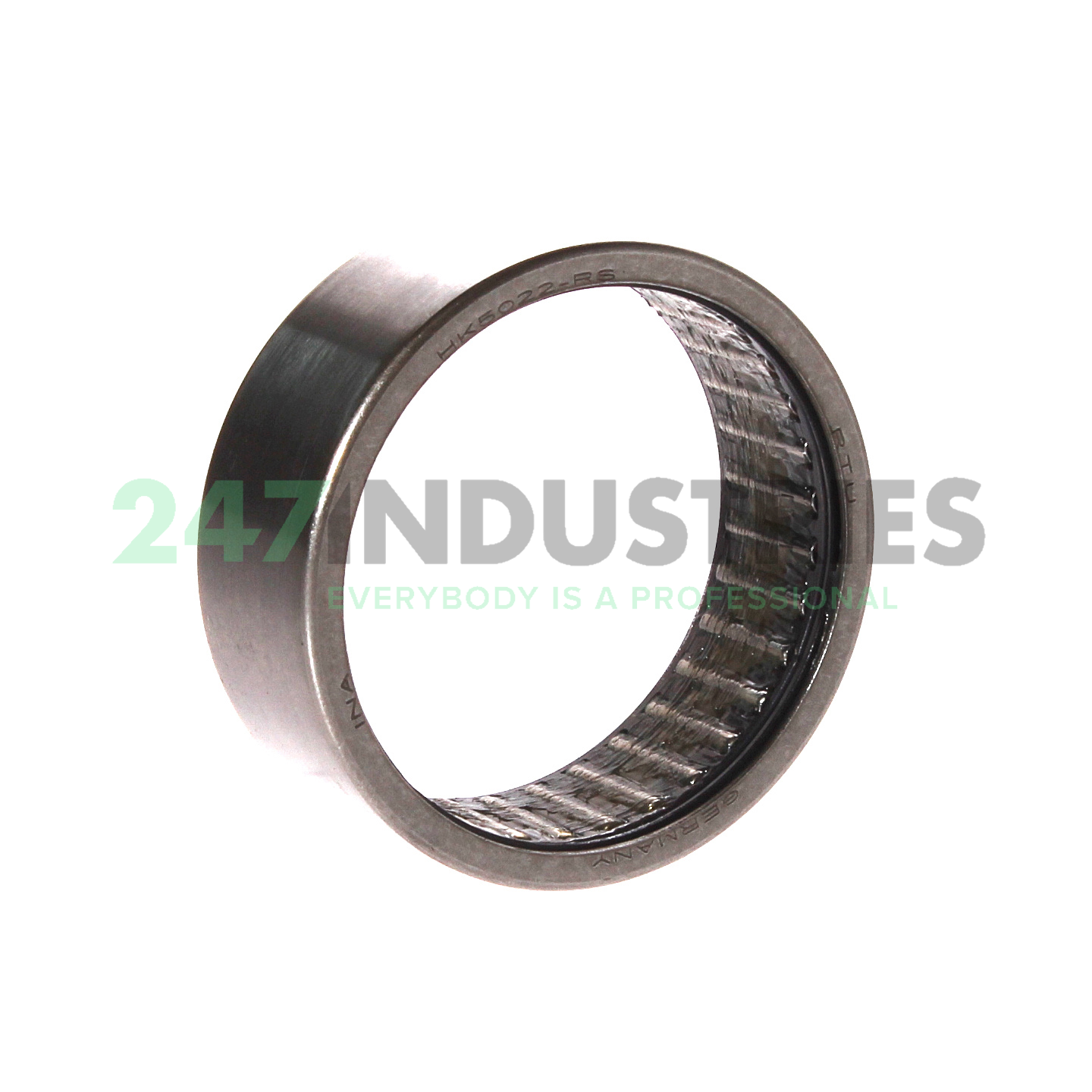

HK5022-RS-A-L271 INA

All dimensions

1. Inner (d) MM 50,00
2. Outer (D) MM 58,00
3. Width (B) MM 22,00
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 2.2835
6. Width (B) Inch 0.8661
7. Under roller diameter (F w) mm 50,00
8. Width (C) mm 22,00

Suffix description

1. RS One Seal, Buna-N Rubber, Radial Type
2. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
3. L271 Anti Wear Protection Grease

Technical details

1. Availability 62 pcs
2. Brand INA
3. Item number HK5022-RS-A-L271 INA
4. Also known as 0002452590968
   HK5022RS
   HK5022-RS-A

5. EAN 4012802266399
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.077

Product Properties

1. Seal RS - Rubber Seal on One Side

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 63000
2. Radial Dynamic Load Rating Cr (N) 31000
3. Basic static load rating, radial (C 0r) "63000.0000"
4. Limiting speed (n G) "3150.0000"
5. Limiting speed for grease lubrication (n G Grease) "3150.0000"
6. ECLASS number 23-05-09-05
7. ECLASS2 number 23-05-09-05
8. Medias description Drawn cup needle roller bearings with open ends HK..-RS, lip seal on one side, to DIN 618

Downloads and links

1. Link to manufacturer Link to manufacturer
