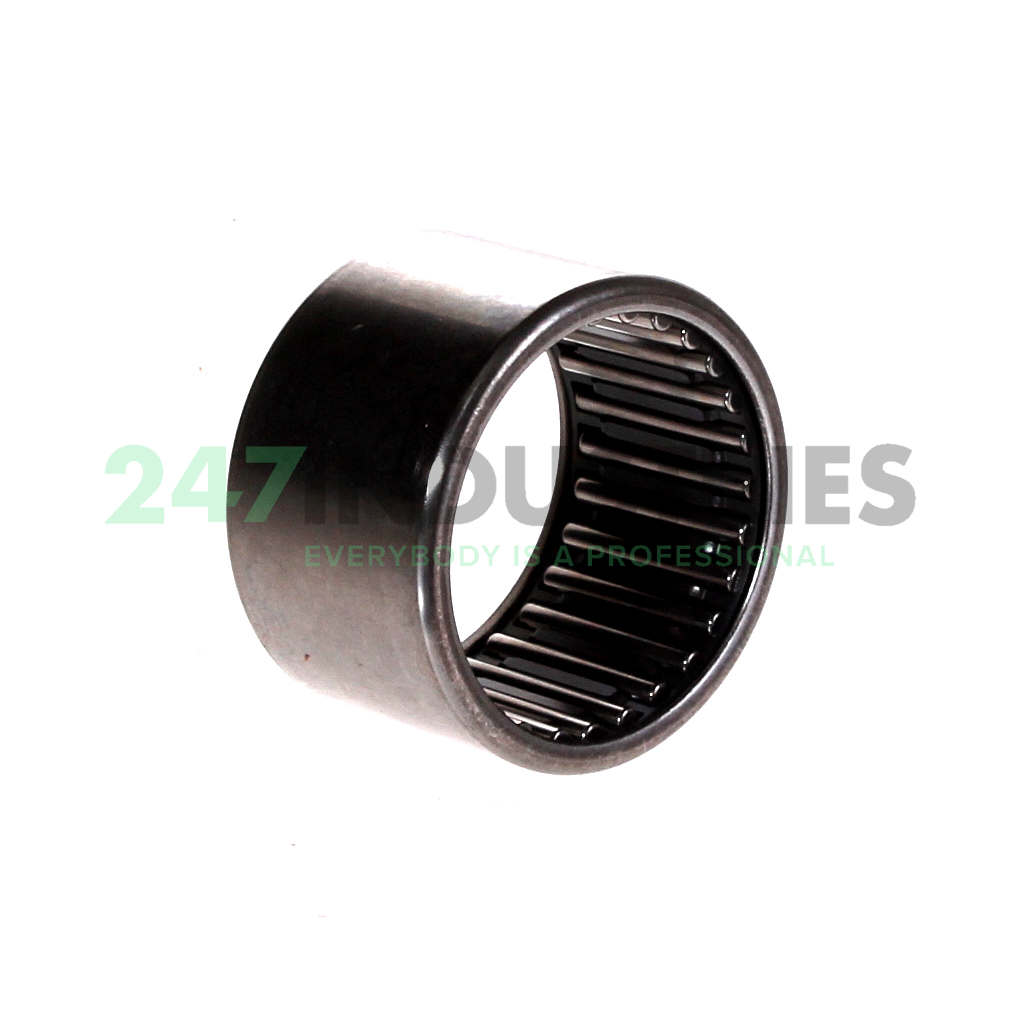

HK3224 INA

All dimensions

1. Inner (d) MM 32
2. Outer (D) MM 39
3. Width (B) MM 24
4. Inner (d) Inch 1.2598
5. Outer (D) Inch 1.5354
6. Width (B) Inch 0.9449
7. Under roller diameter (F w) mm 32
8. Width (C) mm 24

Suffix description

1. G2 Standard Quality Class For Needles
2. /0-10 Micron - Needle Sort

Technical details

1. Availability 120 pcs
2. Brand INA
3. Item number HK3224 INA
4. Also known as 0001119530000

5. EAN 4012802429411
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.049

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 54000
2. Radial Dynamic Load Rating Cr (N) 27500
3. Limiting speed (n G) 8100
4. Limiting speed for grease lubrication (n G Grease) 4850
5. Reference speed (n ϑr) 5900
6. ECLASS number 23-05-09-05
7. ECLASS2 number 23-05-09-05
8. Medias description Drawn cup needle roller bearing open end HK, single row, with cage
