HK3018-RS-L271 INA

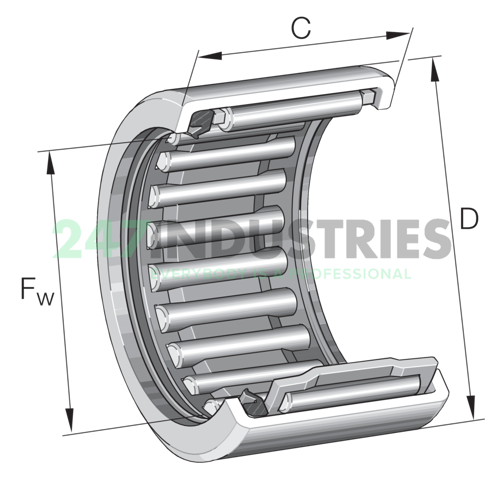

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 37
3. Width (B) MM 18
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 1.4567
6. Width (B) Inch 0.7087
7. Under roller diameter (F w) mm 30
8. Width (C) mm 18

Suffix description

1. RS One Seal, Buna-N Rubber, Radial Type
2. L271 Anti Wear Protection Grease

Technical details

1. Availability 326 pcs
2. Brand INA
3. Item number HK3018-RS-L271 INA
4. Also known as 0007910080968

5. EAN 4012802609103
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.035

Product Properties

1. Seal RS - Rubber Seal on One Side

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 29000
2. Radial Dynamic Load Rating Cr (N) 17200
3. Limiting speed (n G) 5200
4. Limiting speed for grease lubrication (n G Grease) 5200
5. ECLASS number 23-05-09-05
6. ECLASS2 number 23-05-09-05
7. Medias description Drawn cup needle roller bearings with open ends HK..-RS, lip seal on one side, to DIN 618
